Johnson J30MLSRC

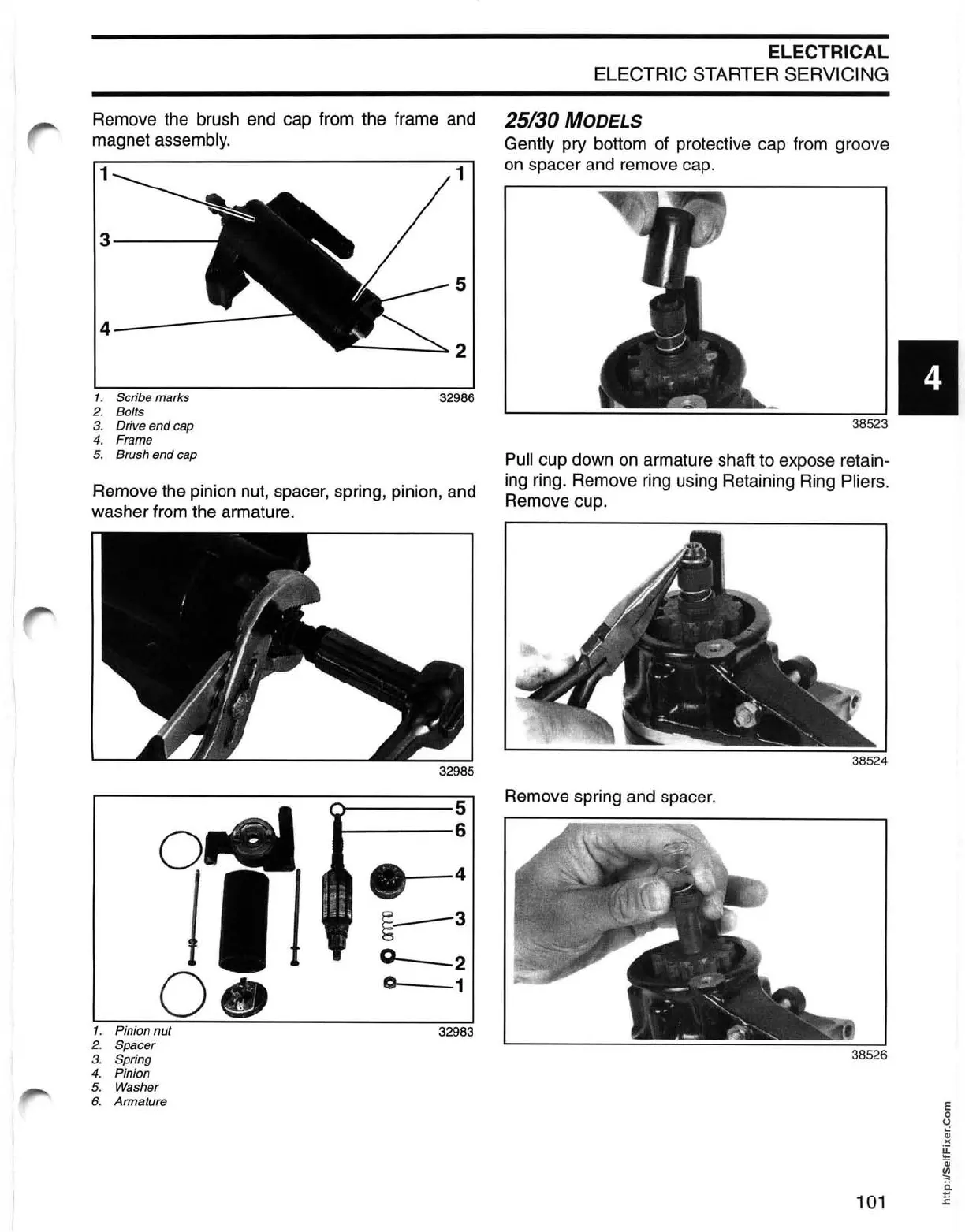

Remove the brush end cap from the frame and
magnet
assembly.
1
1
3-----
5
4------
'-----..::::.. 2
1. Scribe marks
32986
2. Bolts
3. Drive end cap
4. Frame
5. Brush end cap
Remove the pinion nut, spacer, spring, pinion, and
washer from the armature.
1. Pinion nut
2.
Spacer
3. Spring
4. Pinion
5. Washer
6. Armature
rr-----5
------6
e--
4
g_ -3
o -2
0- 1
32983
ELECTRICAL
ELECTRIC STARTER SERVICING
25/30 MODELS
Gently pry bottom of protective cap from groove
on spacer and remove cap.
Pull cup down on armature shaft to expose retain-
ing ring. Remove ring using Retaining Ring
Pliers.
Remove cup.
Remove spring and spacer.
101
