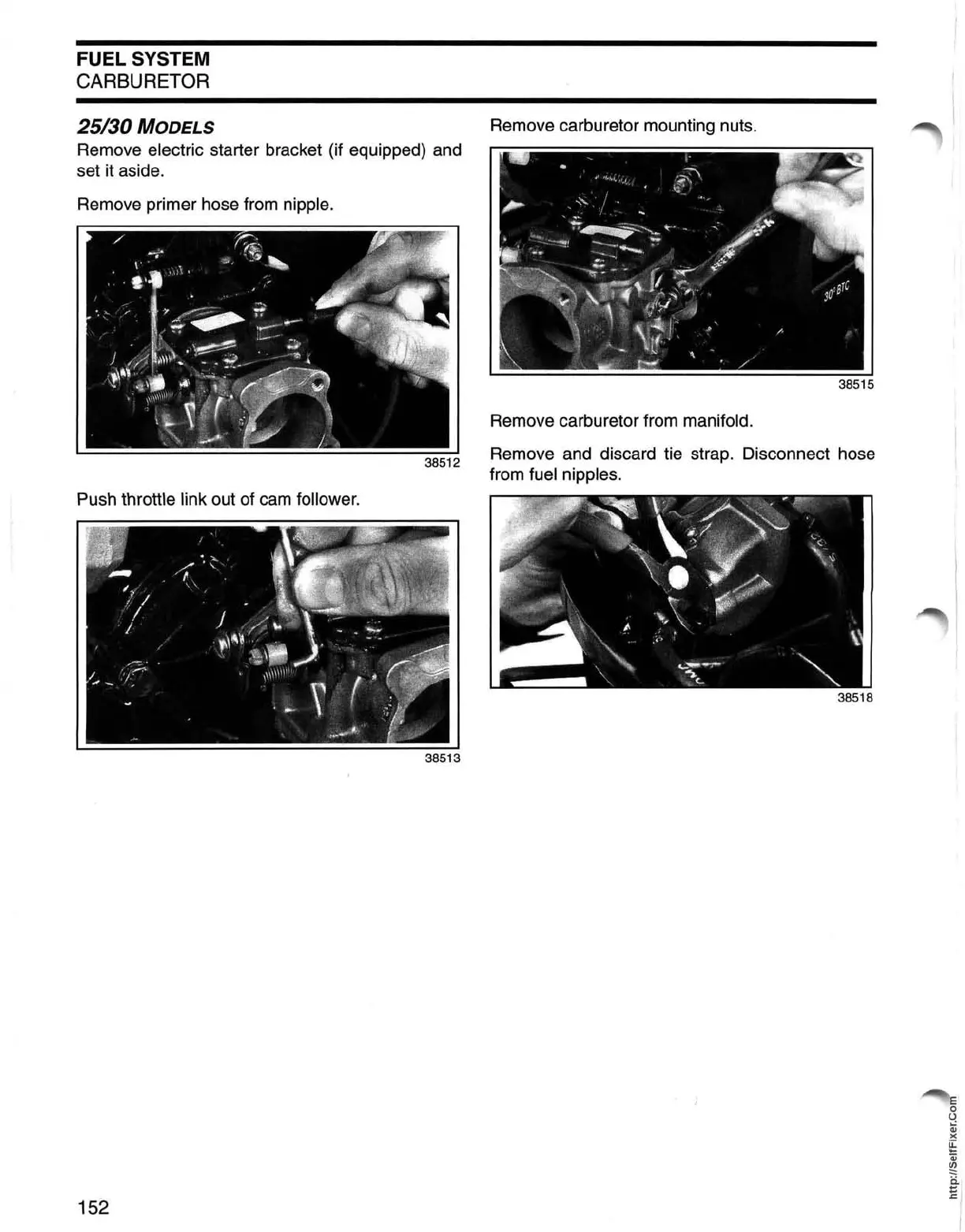

FUEL
SYSTEM
CARBURETOR
25/30
MODELS
Remove
electric
starter
bracket
(if
equipped)
and
set
it
aside.
Remove
primer
hose
from
nipple.
Push
throttle
link
out
of
cam
follower.
152
Remove
carburetor
mounting
nuts.
Remove
carburetor
from
manifold.
Remove
and
discard
tie
strap.
Disconnect
hose
from
fuel
nipples.
152
