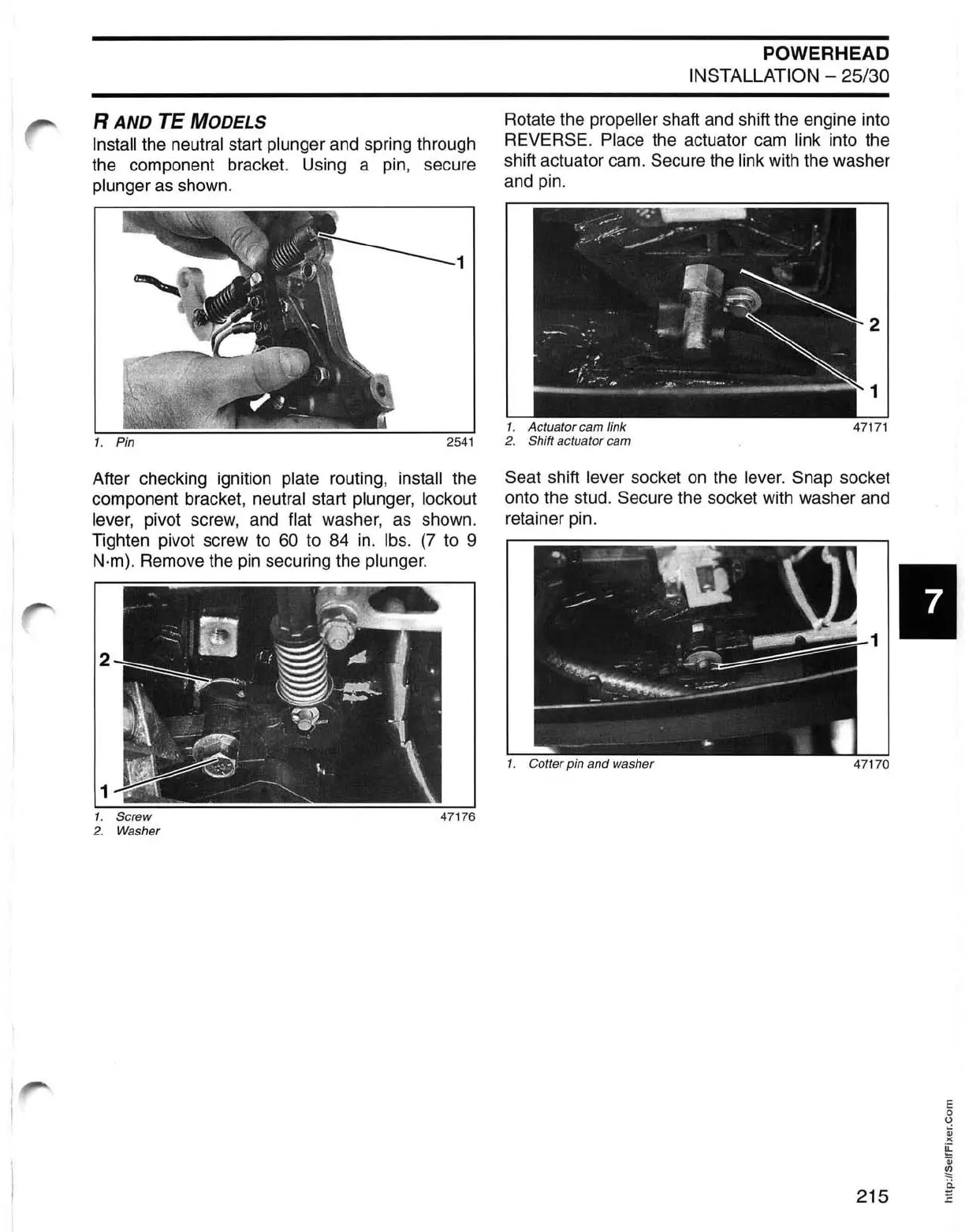

RAND
TE
MODELS
Install
the neutral start plunger and spring through
the component bracket. Using a pin, secure
plunger
as
shown.
1
After checking ignition plate routing, install the
component bracket, neutral start plunger, lockout
lever,
pivot screw, and flat washer, as shown.
Tighten pivot screw to
60
to 84
in.
Ibs.
(7
to 9
N·m). Remove the pin securing the plunger.
2
1
1. Screw 47176
2.
Washer
POWERHEAD
INSTALLATION - 25/30
Rotate the propeller shaft and shift the engine into
REVERSE.
Place the actuator cam link into the
shift actuator cam.
Secure the link with the washer
and pin.
1. Actuator cam link
47171
2. Shift actuator cam
Seat shift lever socket
on
the lever. Snap socket
onto the stud.
Secure the socket with washer and
retainer pin.
