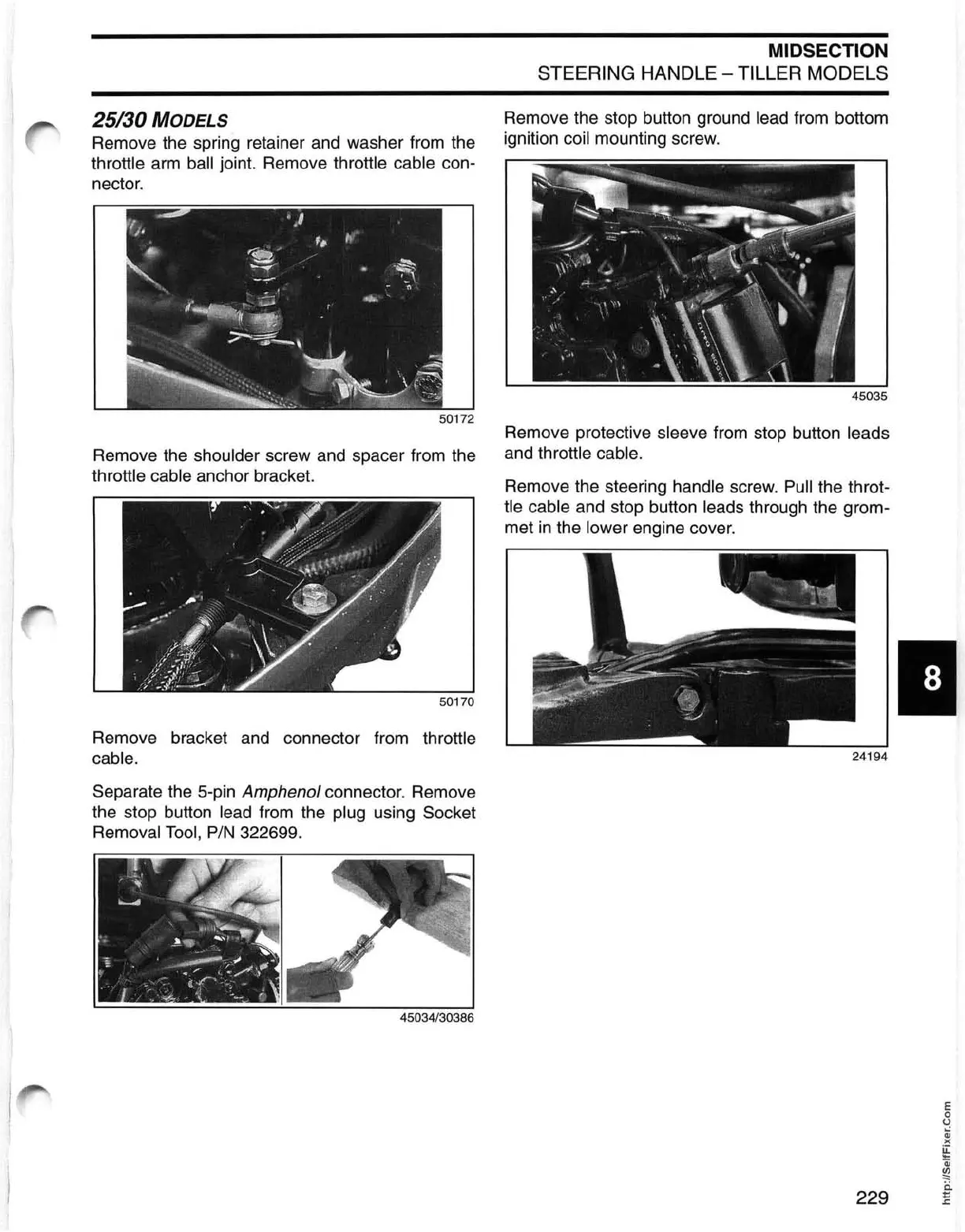

25/30
MODELS
Remove the spring retainer and washer from the
throttle arm ball joint. Remove throttle cable con-
nector.
50172
Remove the shoulder screw and spacer from the
throttle cable anchor bracket.
50170
Remove bracket and connector from throttle
cable.
Separate the 5-pin
Amphenol connector. Remove
the stop button lead from the plug using Socket
Removal
Tool,
PIN
322699.
45034/30386
MIDSECTION
STEERING HANDLE - TILLER MODELS
Remove the stop button ground lead from bottom
ignition coil mounting screw.
Remove protective sleeve from stop button leads
and throttle cable.
Remove the steering handle screw.
Pull the throt-
tle cable and stop button leads through the grom-
met
in
the lower engine cover.
I
E
o
o
W
)(
~
Qj
~
i:i
229
~
