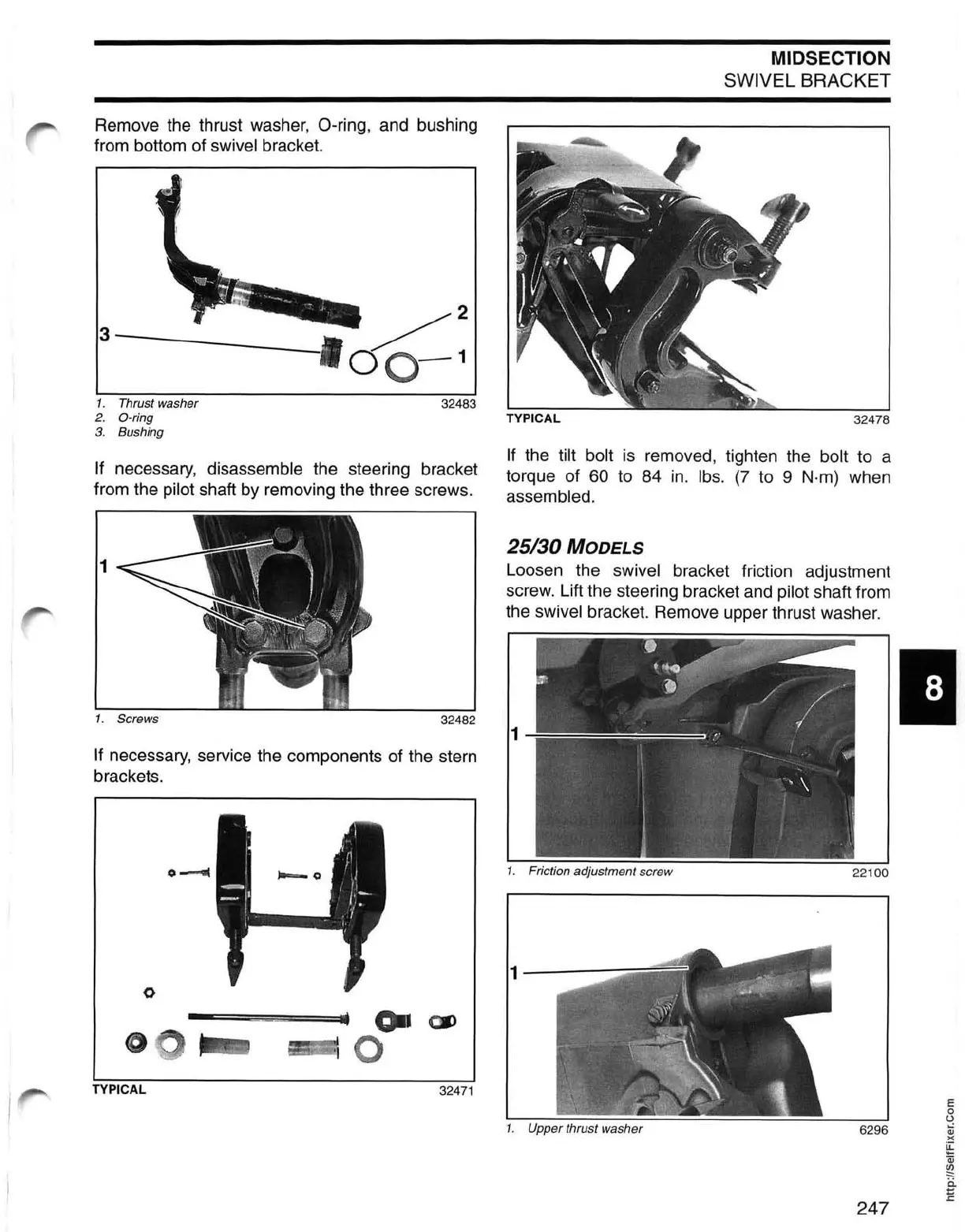

Remove the thrust washer, O-ring, and bushing
from bottom of
swivel bracket.
3-
_____
_
/2
0 0 -
1
1. Thrust washer
32483
2.
O-ring
3.
Bushing
If necessary, disassemble the steering bracket
from the
pilot shaft by removing the three screws.
1. Screws
32482
If necessary, service the components of the stern
brackets.
o
~==
~==~.
om
~
~
I
O
<0
TYPICAL
32471
MIDSECTION
SWIVEL BRACKET
If the tilt bolt
is
removed, tighten the bolt to a
torque of
60 to 84
in.
Ibs.
(7
to 9 N·
m)
when
assembled.
25/30
MODELS
Loosen the swivel bracket friction adjustment
screw. Lift the steering bracket and pilot shaft from
the
swivel bracket. Remove upper thrust washer.
1
1. Friction adjustment screw
22100
1----
-:::::
1.
Upper thrust washer
6296
247
