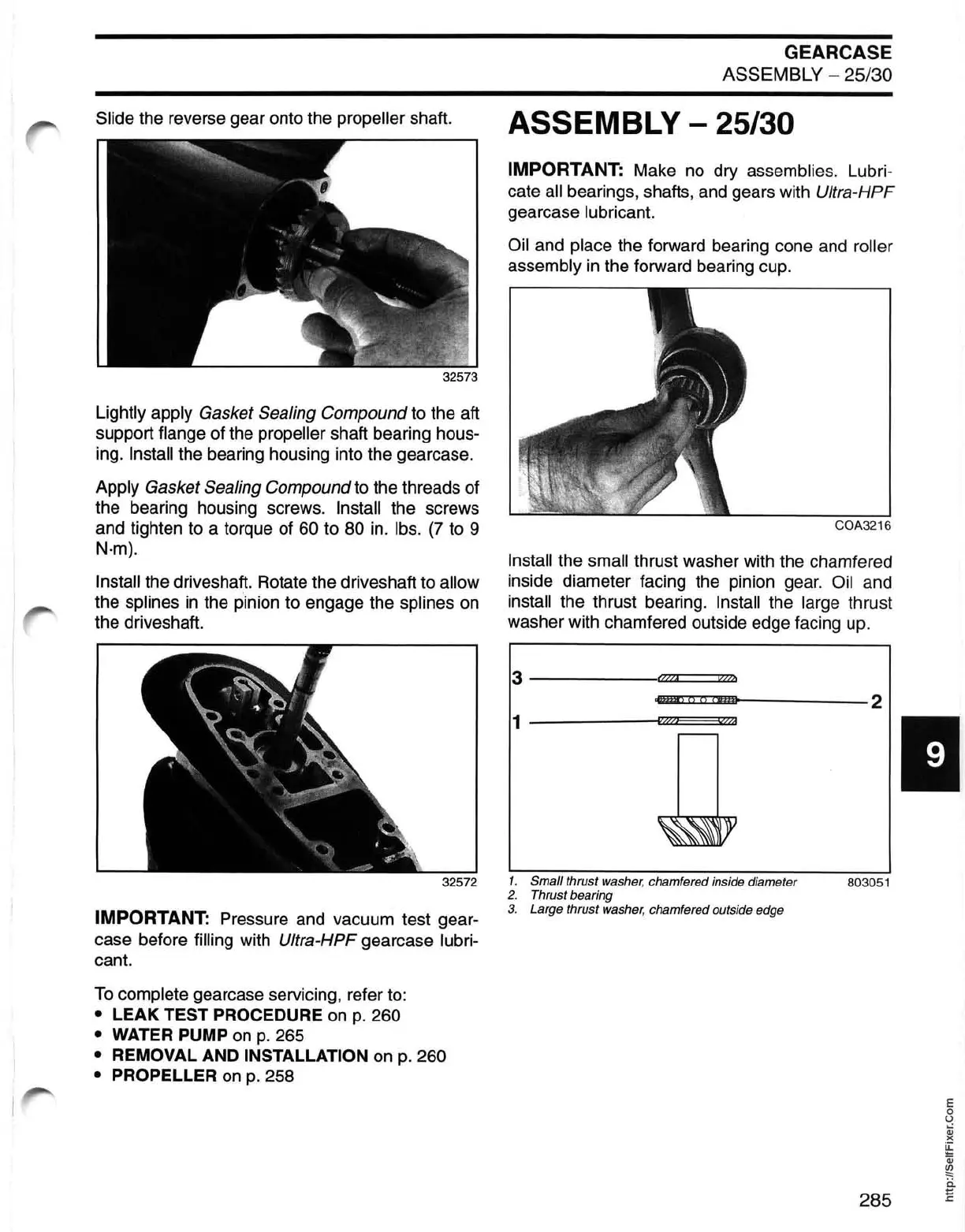

Slide the reverse gear onto the propeller shaft.
32573
Lightly apply Gasket Sealing Compound to the aft
support
flange of the propeller shaft bearing hous-
ing. Install the bearing housing into the gearcase.
Apply Gasket Sealing Compound to the threads of
the bearing housing screws.
Install the screws
and tighten to a torque of 60 to 80
in. Ibs. (7 to 9
N·m).
Install
the driveshaft. Rotate the driveshaft to allow
the splines in the pinion to engage the splines on
the driveshaft.
IMPORTANT: Pressure and vacuum test gear-
case before filling with U/tra-HPF gearcase lubri-
cant.
To complete gearcase servicing, refer to:
• LEAK TEST PROCEDURE on p. 260
• WATER PUMP on p. 265
• REMOVAL AND INSTALLATION on p. 260
• PROPELLER on p. 258
GEARCASE
ASSEMBLY - 25/30
ASSEMBLY - 25/30
IMPORTANT: Make no dry assemblies. Lubri-
cate
all bearings, shafts, and gears with U/tra-HPF
gearcase lubricant.
Oil
and place the forward bearing cone and roller
assembly
in the forward bearing cup.
COA3216
Install the small thrust washer with the chamfered
inside diameter facing the pinion gear.
Oil and
install the thrust bearing. Install the large thrust
washer with chamfered outside edge facing up.
3 -----~(Z2Zi?mc:::=::::lem4?!
oI'.lm[I i:!l:ii :c:::Ii i i~ ____ 2
1. Small thrust washer, chamfered inside diameter
803051
2. Thrust bearing
3. Large thrust washer, chamfered outside edge
I
E
o
U
Qj
)(
~
Qj
~
ii
285 E
