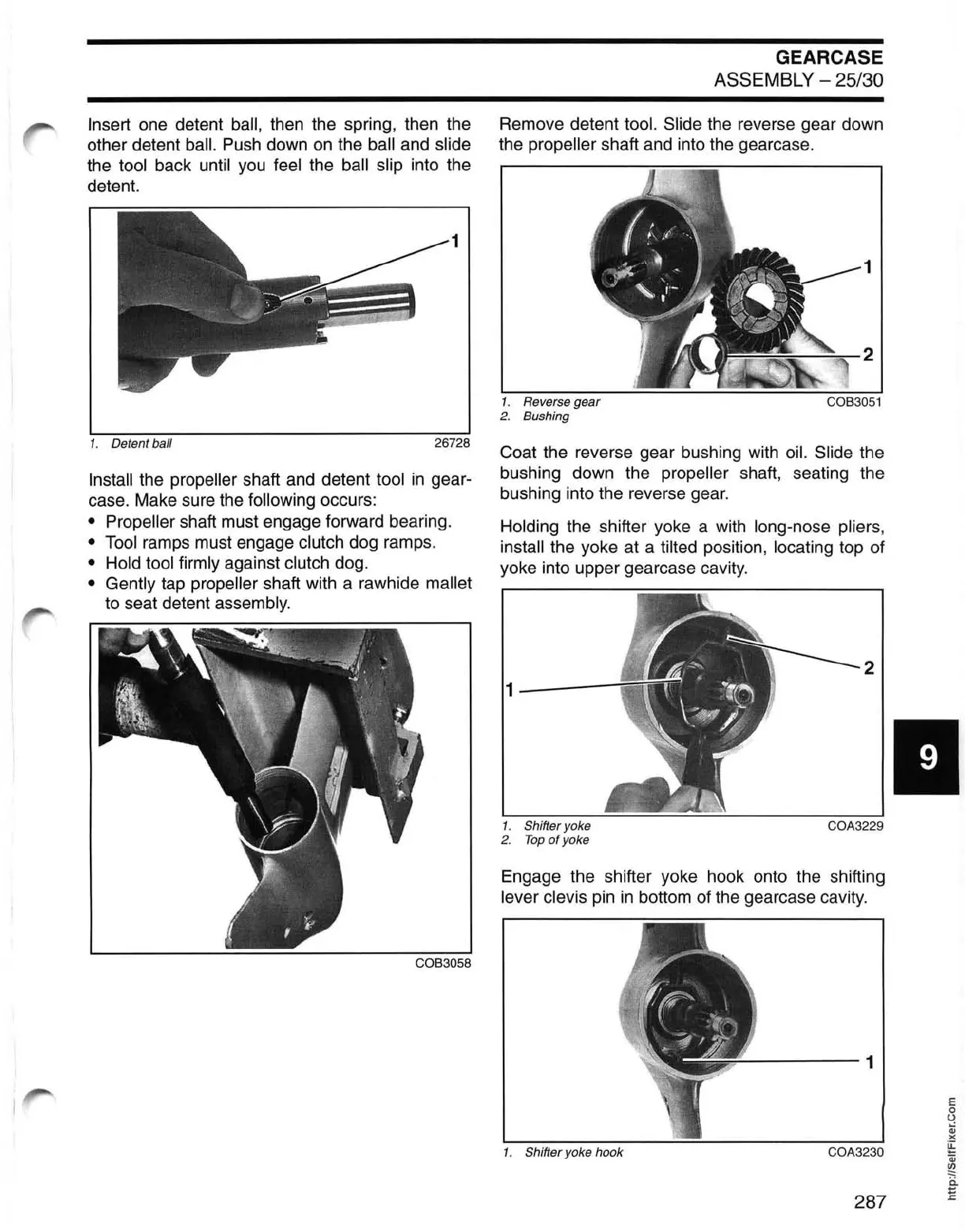

Insert one detent ball, then the spring, then the
other detent
ball. Push down
on
the ball and slide
the tool back until you feel the ball slip into the
detent.
1. Detent ball
26728
Install the propeller shaft and detent tool
in
gear-
case. Make sure the
following occurs:
• Propeller shaft must engage forward bearing.
•
Tool
ramps must engage clutch dog ramps.
• Hold tool firmly against clutch dog.
• Gently tap propeller shaft with a rawhide mallet
to seat detent assembly.
GEARCASE
ASSEMBLY - 25/30
Remove detent tool. Slide the reverse gear down
the
propeller shaft and into the gearcase.
1
----'
~
-2
1. Reverse
gear
COB3051
2. Bushing
Coat the reverse gear bushing with oil. Slide the
bushing down the
propeller shaft, seating the
bushing into the reverse gear.
Holding the shifter yoke a with long-nose pliers,
install
the yoke at a tilted position, locating top of
yoke into upper gearcase cavity.
2
1---
-.
1. Shifter yoke COA3229
2.
Top
of
yoke
Engage the shifter yoke hook onto the shifting
lever clevis pin
in
bottom of the gearcase cavity.
==""
-----1
1. Shifter yoke hook COA3230
287
