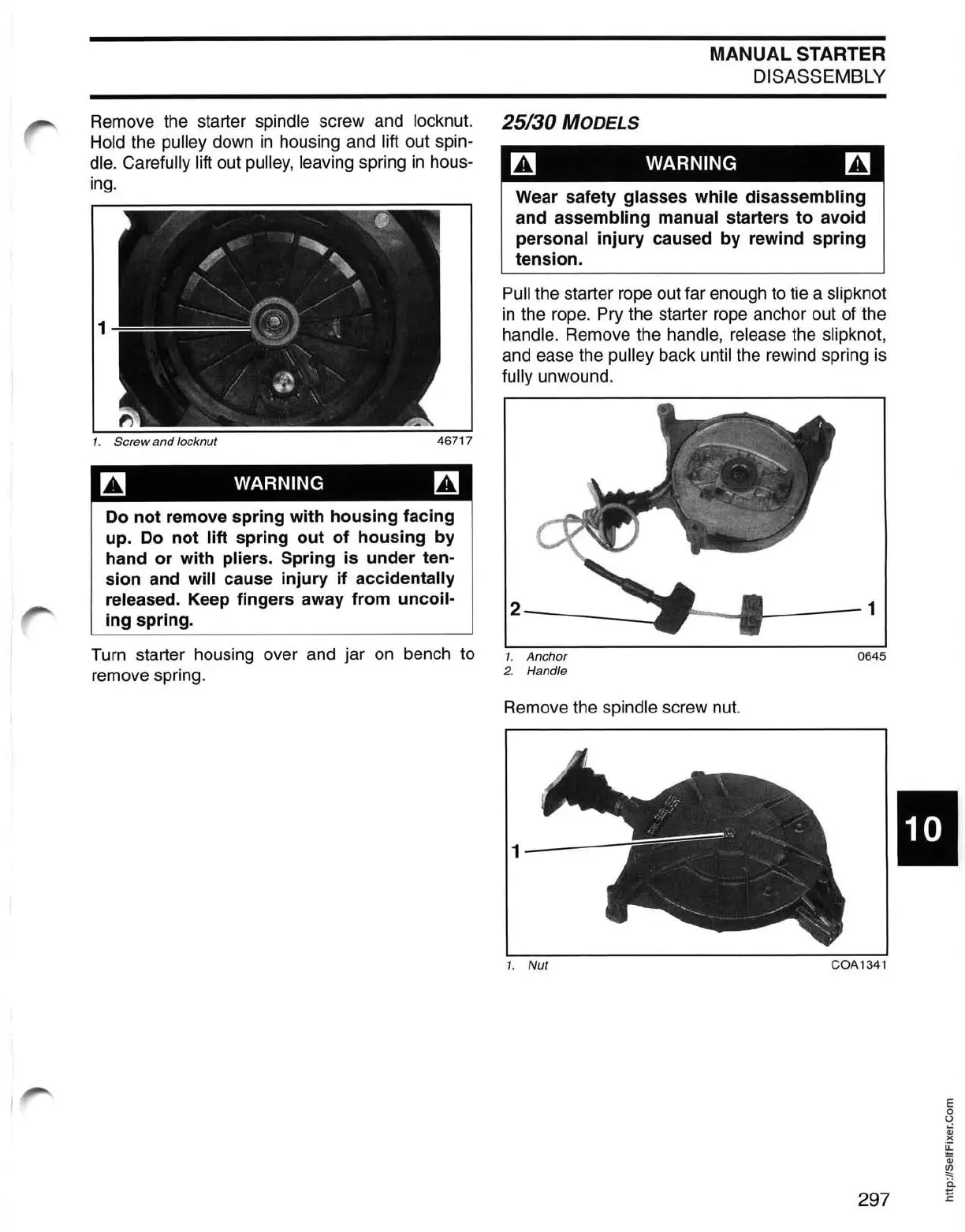

Remove the starter spindle screw and locknut.
Hold
the pulley down
in
housing and lift out spin-
dle. Carefully lift out pulley, leaving spring
in
hous-
ing.
1
1. Screw and locknut
~
WARNING
~
Do
not remove spring with housing facing
up.
Do
not lift spring out of housing
by
hand or
with
pliers. Spring
is
under ten-
sion
and
will cause injury if accidentally
released.
Keep
fingers away from uncoil-
ing
spring.
Turn starter housing over and jar
on
bench to
remove spring.
25/30
MODELS
MANUAL STARTER
DISASSEMBLY
~
WARNING
~
Wear safety glasses while disassembling
and assembling manual starters to avoid
personal injury caused
by
rewind spring
tension.
Pull the starter rope out far enough to tie a slipknot
in
the rope. Pry the starter rope anchor out of the
handle. Remove the handle, release the slipknot,
and ease the pulley back until the rewind spring
is
fully unwound.
2--
__
--..1
_---1
1. Anchor
0645
2. Handle
Remove the spindle screw
nut.
1----
j
1. Nut
COA1341
E
o
U
Qj
)(
~
Qj
~
ii
297 E
