Johnson J30MLSRC User Manual

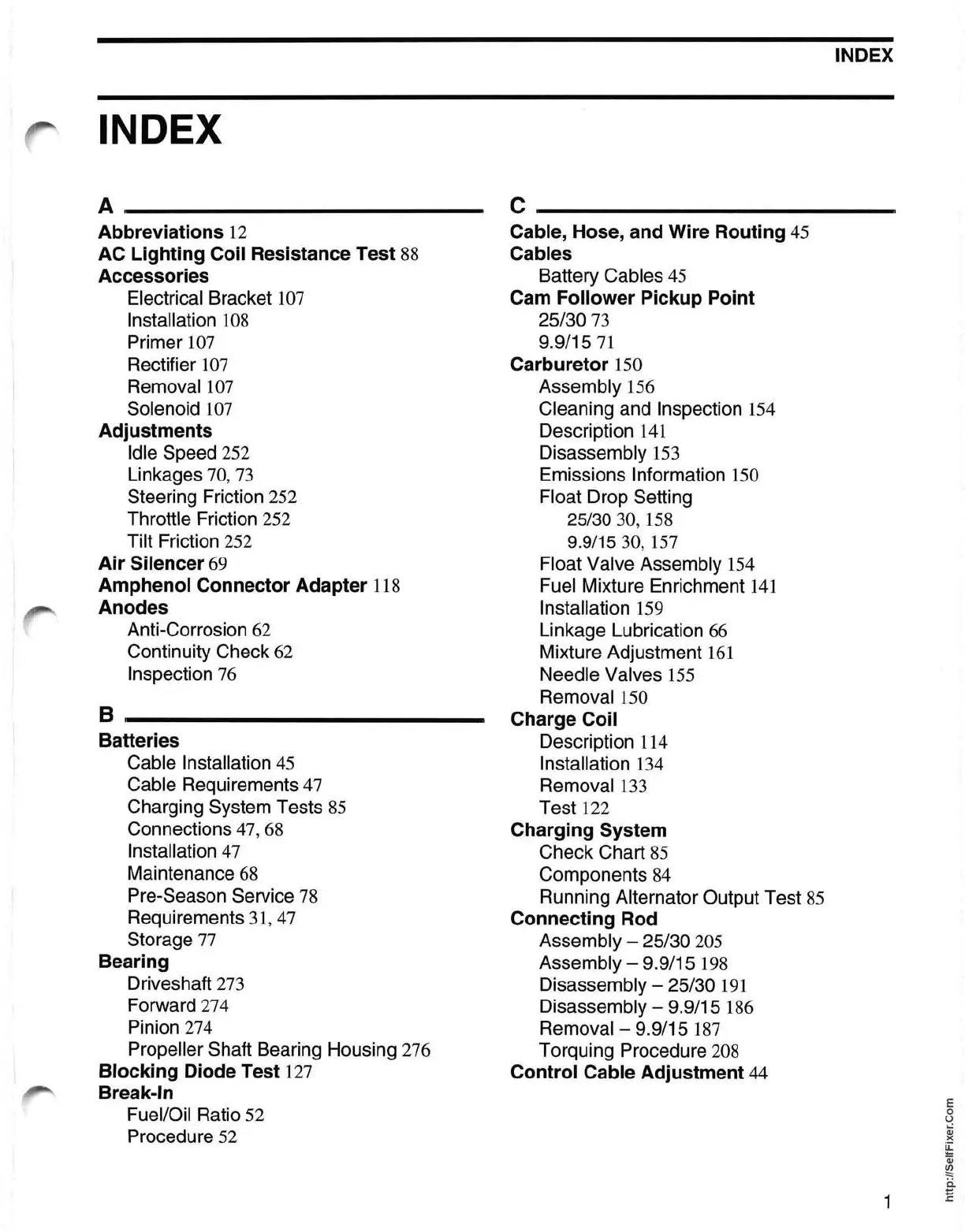

INDEX
A ________________________ _
Abbreviations 12
AC Lighting Coil Resistance Test 88
Accessories
Electrical Bracket 107
Installation 108
Primer 107
Rectifier 107
Removal 107
Solenoid 107
Adjustments
Idle Speed 252
Linkages 70, 73
Steering Friction 252
Throttle Friction 252
Tilt Friction 252
Air Silencer 69
Amphenol Connector Adapter 118
Anodes
Anti-Corrosion 62
Continuity Check 62
Inspection 76
B ________________________ _
Batteries
Cable Installation 45
Cable Requirements 47
Charging System Tests 85
Connections 47,68
Installation 47
Maintenance 68
Pre-Season Service 78
Requirements 31, 47
Storage 77
Bearing
Driveshaft 273
Forward 274
Pinion 274
Propeller Shaft Bearing Housing 276
Blocking Diode Test 127
Break-In
Fuel/Oil Ratio 52
Procedure 52
INDEX
c ________________________ _
Cable, Hose, and Wire Routing 45
Cables
Battery Cables 45
Cam Follower Pickup Point
25/3073
9.9/1571
Carburetor 150
Assembly 156
Cleaning and Inspection 154
Description 141
Disassembly 153
Emissions Information 150
Float Drop Setting
25/30 30, 158
9.9/15 30, 157
Float Valve Assembly 154
Fuel Mixture Enrichment 141
Installation 159
Linkage Lubrication 66
Mixture Adjustment 161
Needle Valves 155
Removal 150
Charge Coil
Description 114
Installation 134
Removal 133
Test 122
Charging System
Check Chart 85
Components 84
Running Alternator Output Test 85
Connecting Rod
Assembly - 25/30 205
Assembly - 9.9/15198
Disassembly - 25/30 191
Disassembly - 9.9/15186
Removal - 9.9/15 187
Torquing Procedure 208
Control Cable Adjustment 44
1
E
o
U
Qj
)(
~
Qj
~
ii
E
