Johnson J30MLSRC

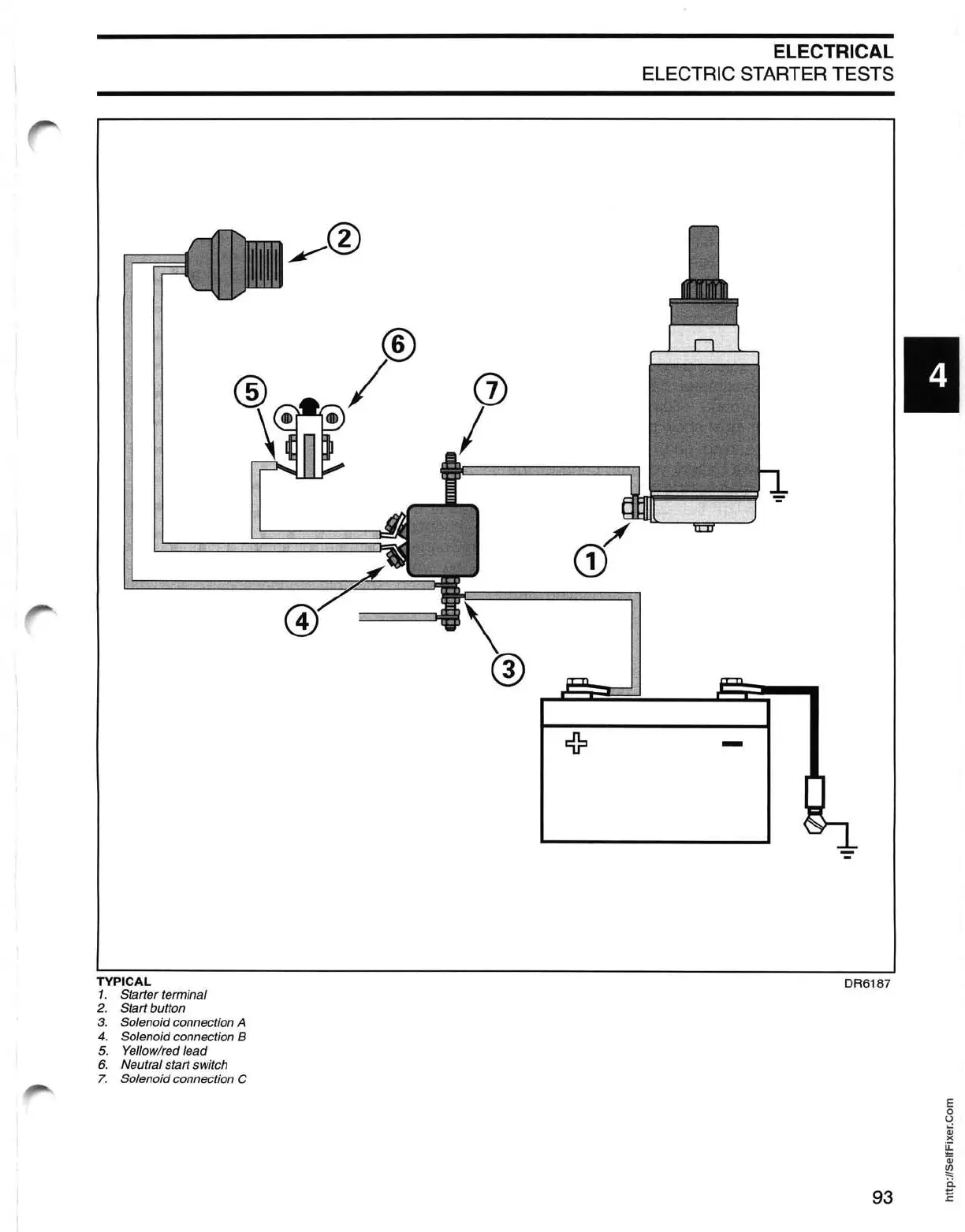

TYPICAL
1. Starter terminal
2. Start button
3. Solenoid connection A
4. Solenoid connection B
5.
Yellowlred lead
6. Neutral start switch
7. Solenoid connection C
®
,........-,......../
ELECTRICAL
ELECTRIC STARTER TESTS
-
DR6187
