3. INSTALLATION METHOD
Fig 3-1

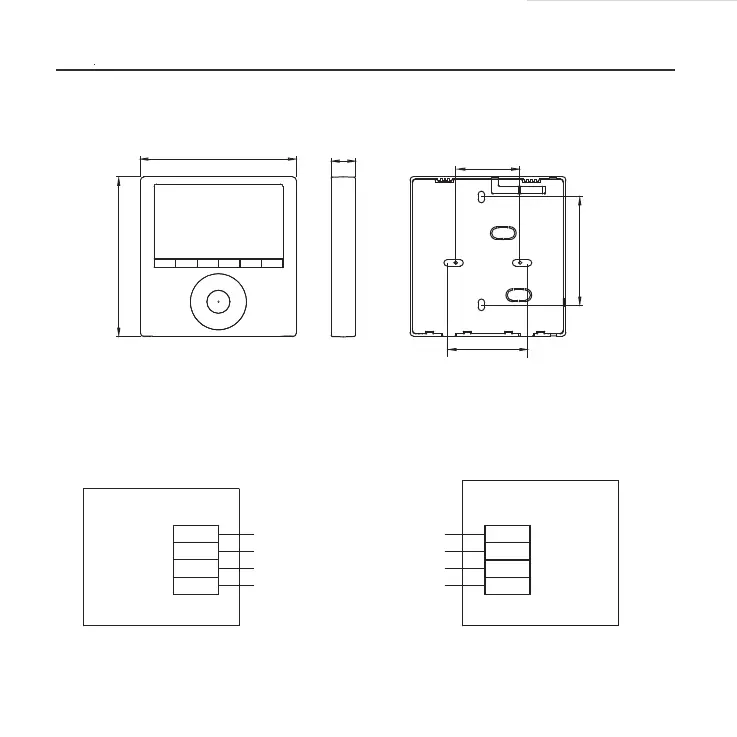

1. Wired Remote Controller Dimensions
123mm
(4.8”)
120mm
(4.7”)
18.5mm
(0.7”)
83.5mm
(3.3”)
46mm
(1.8”)
62mm
(2.4”)
Fig 3-2
2.Wiring Connection Diagram
red
black
yellow
brown
red
black
yellow
brown
Insert of the
mainboard CN40
Wire controller
Indoor unit mainboard
4-Core Shield Cable,
the length is decided
by ins
tallation
----------------------------
----------------------------
----------------------------
----------------------------
6
V.1
