Johnson JCRL120P2 - Wiring Assembly and Connections

3. INSTALLATION METHOD

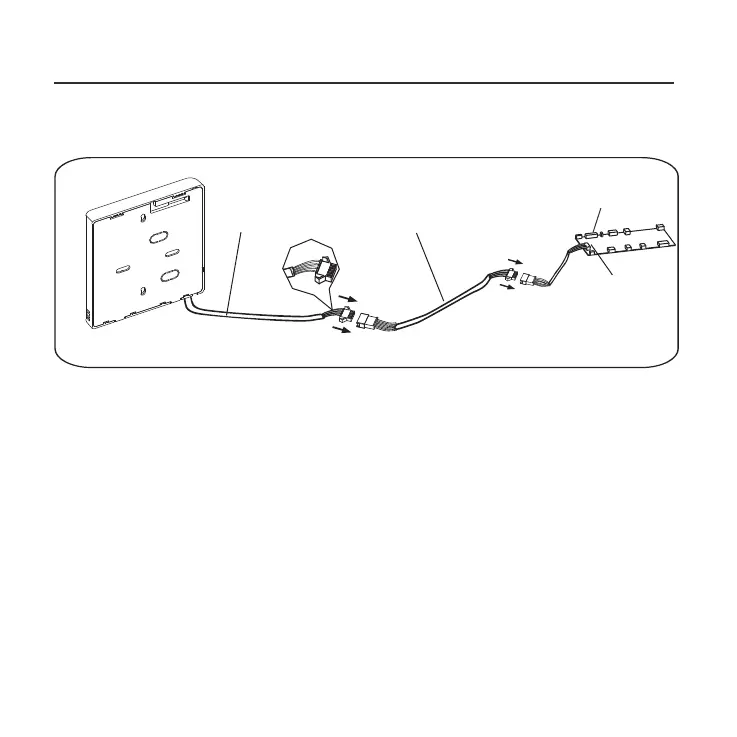

Fig 3-3
Mainboard
4-core shielding wire
3.Wiring figure
Connection cable
CN40
 Connect the female joint of the wires group from the
mainboard with the male joint of the connective wires
group. (See Fig.3-3)
 Connect the other side of the connective wires group
with the male joint of the wires group leads from the wire
controller. (See Fig.3-3)
 Install the Adapter Board and the Display Board on the
High Wall (See the Appendix for instructions).
7
V.1
