INSTALL THE WIRE CONTROLLER KIT

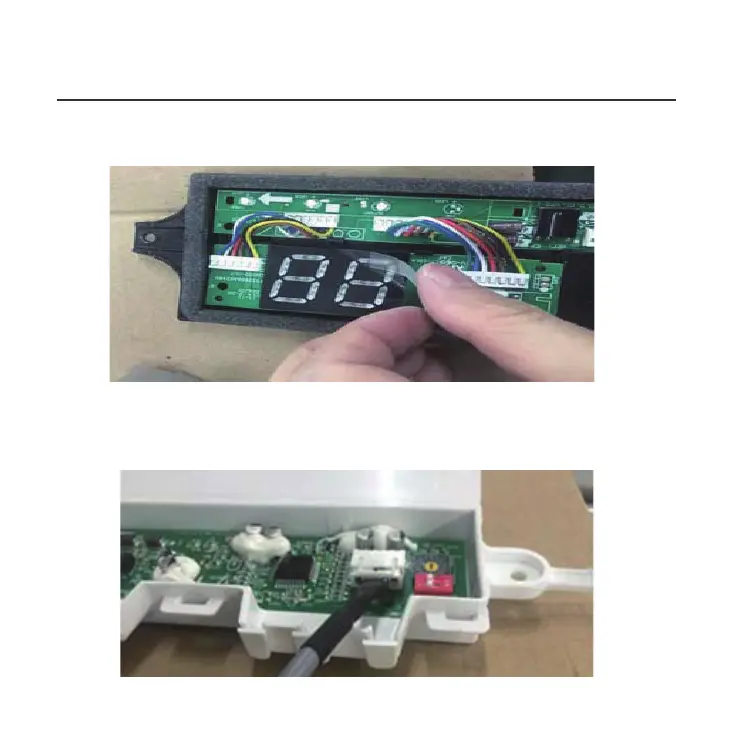

8. Before assembling mounting back on the Front Panel,
remove the display board’s screen cover.
9. Connect the Wires to the Adaptor Board.
a. Connect the wire coming from the Display board to the
Convert Board (this connection consists of 5 wires).
To Next Page
