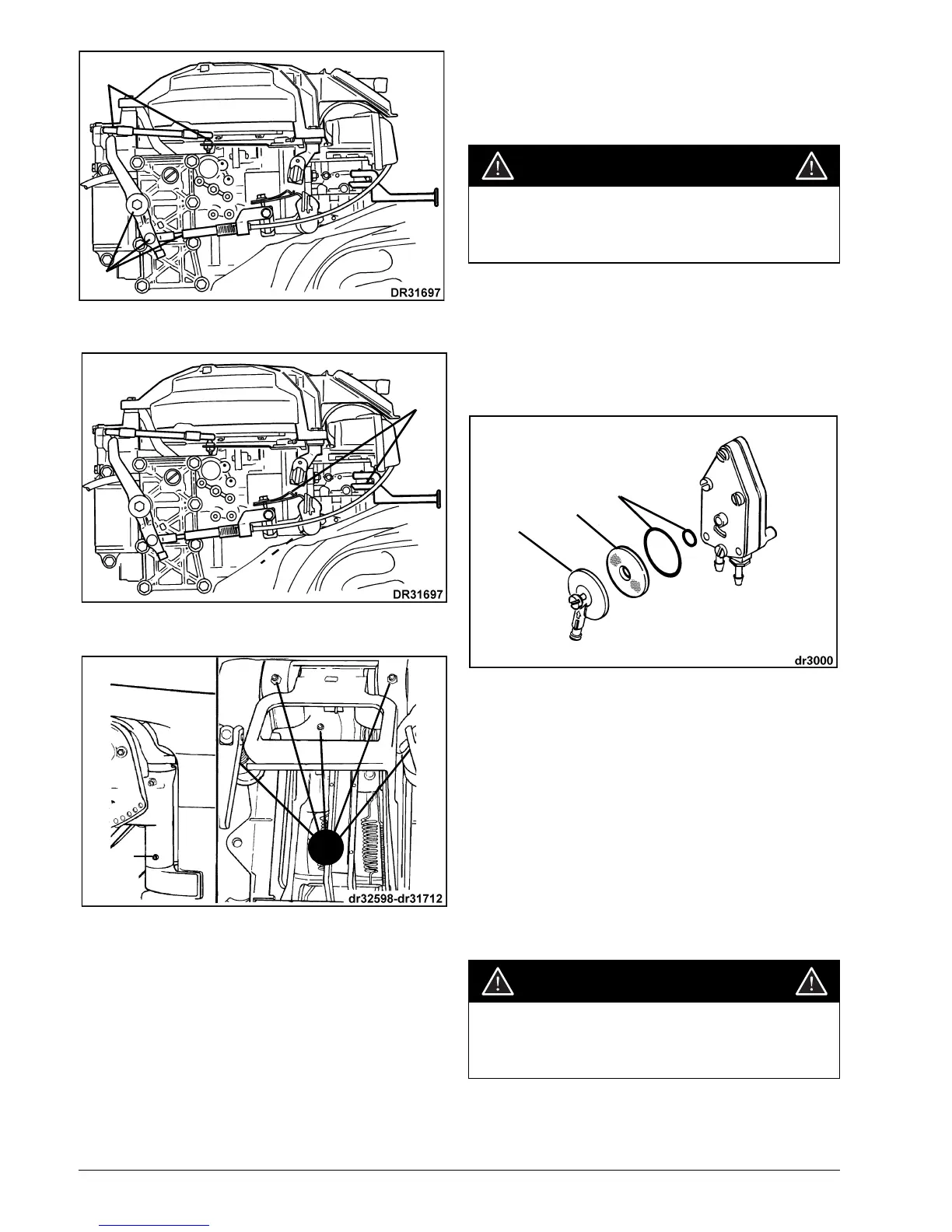

36 - Maintenance
1. Spark advance linkage
1. Choke, shift lever, shaft and detent
1. Swivel bracket, clamp screws, tilt/run lever
shaft, and tilt shaft
FUEL PUMP FILTER
The fuel filter is located in the motor’s fuel pump. An
authorized
Evinrude/Johnson
DEALER should ser-
vice the fuel filter.
The filter is located under the inlet cover on the fuel
pump. To service, proceed as follows:
If portable tank is used, disconnect the fuel hose
from the motor before servicing the filter.
Loosen screw and remove the cover. Do not lose
O-rings.
1. Cover
2. Filter
3. O-rings
Wash filter with clean solvent; blow dry.
Reinstall filter, keeping lip of filter screen toward
fuel pump body.
Install large O-ring in its groove in the cover and the
small O-ring around center post of pump body.
Replace O-rings if cut or damaged.
Reinstall cover.
Tighten cover screw securely; clean up spilled fuel.
Check for leaks – connect fuel hose to motor and
squeeze primer bulb until firm.
1
1
1
1
1
1
WARNING
Prevent excessive fuel spillage by discon-
necting fuel hose from motor before disas-
sembly.
WARNING
Failure to inspect your work could allow fuel
leakage to go undetected, becoming a fire
or explosion hazard.
