Johnston CN101 - Page 48

Page Issue A
Chapter - Servicing Procedures5:8
CN101 - Maintenance
7. Remove the steering lock stops (Item 5) from the swivel housing and discard the original swivel
housing.
8. Using the revised swivel housing (Part number 7001770) re-assemble the components in
reverse order of removal with the exception of the steering cylinder ball joint. The swivel
housing retaining screw (Item 4) should be tted using Loctite 243.

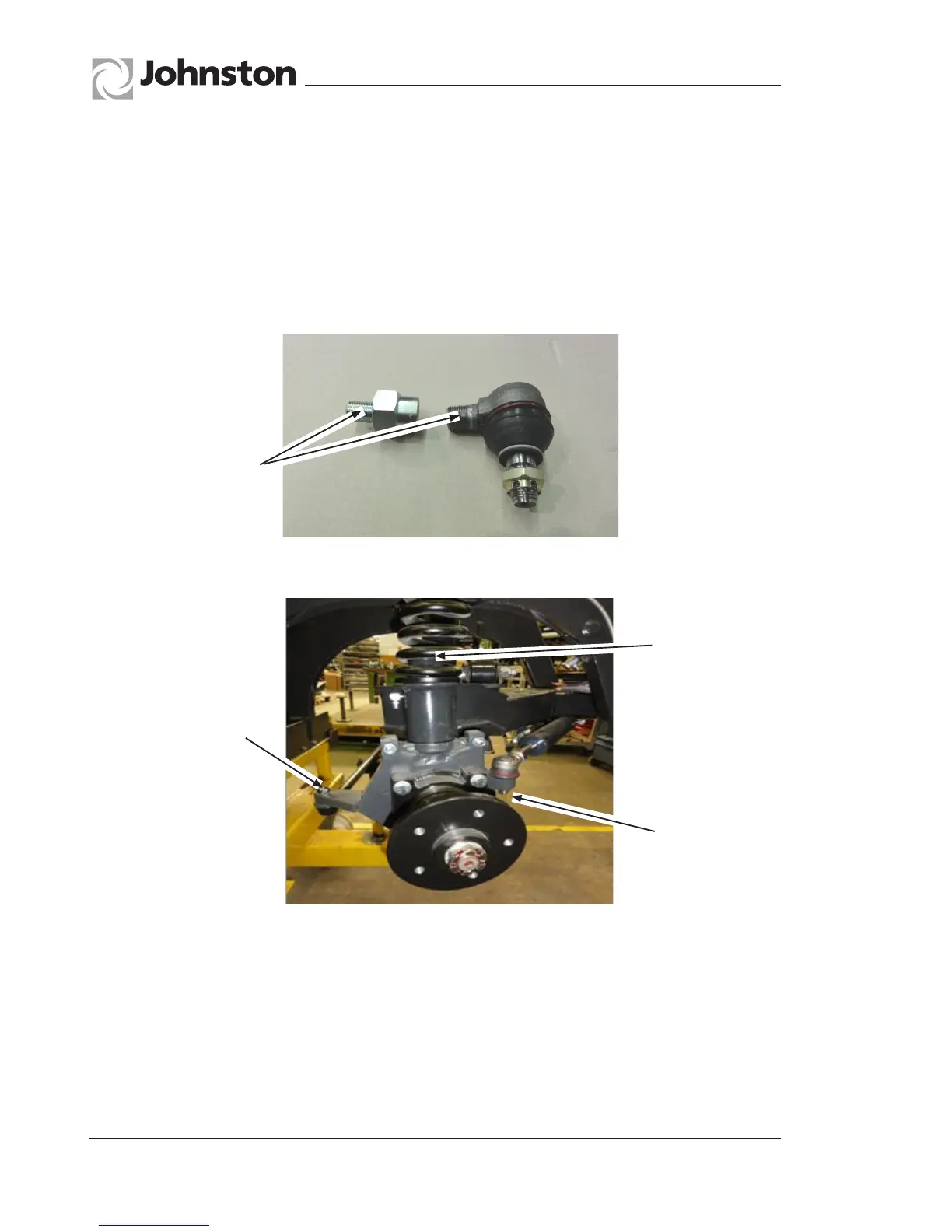

9. The revised steering cylinder ball joint (Part number 7022475) and adaptor (Part number
7021822) can now be tted to the cylinder and tightened using Loctite 243 on both thread
faces – shown below.
10. The ball joint should now be tted to the swivel housing and tightened to 80Nm – shown
below.
11. Ret the road wheel and torque to 100Nm and return the vehicle to the ground.
12. Carry out adjustment to the front wheel alignment using propriety “tracking” equipment to give
a gure of 0°40’ Toe in, by adjusting the length of the track rod located behind the axle.
13. Carry out adjustment to the steering lock stops as detailed below depending on steering
conguration – Four wheel steer or two wheel steer.
Apply Loctite 243
40 Nm
80 Nm
Item 4
Swivel Housing
Retaining Screw
