DOORCONTROLLER-MULTIFUNCTIONJOYSTICK
MO2OG-037

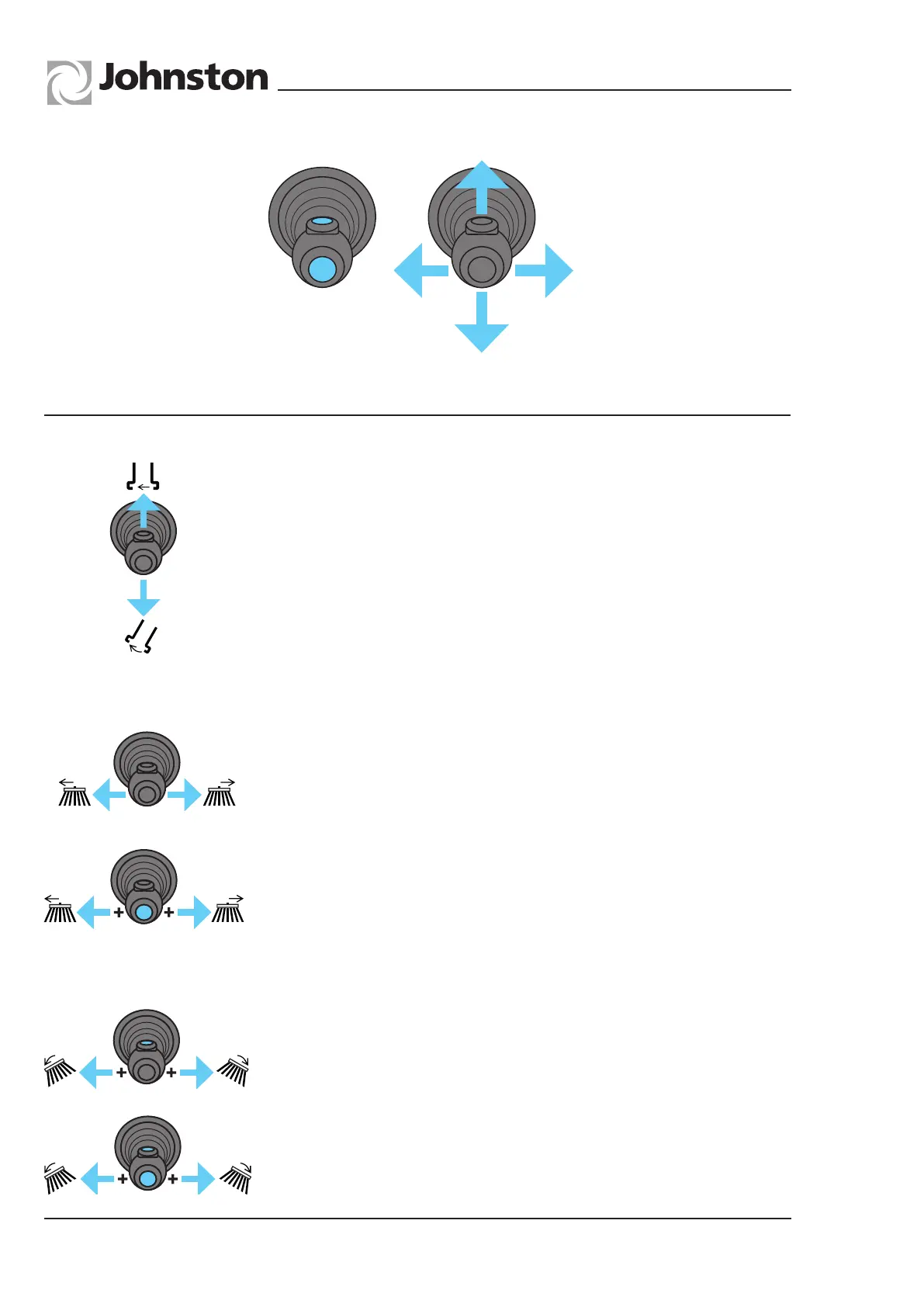

JOYSTICKOPERATEDSWEEPINGCONTROLS
Moving the Joystick up - Closes the Nozzle
Moving the Joystick down - Opens the Nozzle
Standard feature: Operating the Joystick left/right positions
Prime-side Channel Brush fully In or fully Out
Optional Variabrush feature: Operating the Joystick left/right
positions Prime-side Channel Brush as required
Standard feature: Operating the Joystick left/right together with
the push button positions the non Prime-side Channel Brush
fully In or fully Out
Optional Variabrush feature: Operating the Joystick left/right
together with the push button positions the non Prime-side
Channel Brush as required
Moving the Joystick left/right together with both the button on
the top and the end moves the Secondary-side Rotatilt
Moving the Joystick left/right together with the button on the top
Moves the Prime-side Rotatilt
Function A - Maxigap/Varagap
Function B - Variabrush
Function C - Rotatilt
