Johnston VT801 - Page 53

Chapter - Johnston Visual Module
Page Issue 01
OG
5:9
V Range 501 ● 651 ● 801 - Operator’s Guide
Johnston Sweepers Limited
F1
F2
F3
F4
F4
09:45
23.03.2013
4.10
F1
F2
F3
F4
F4
09:45
23.03.2013
4.10.1
0.0v 0.0v

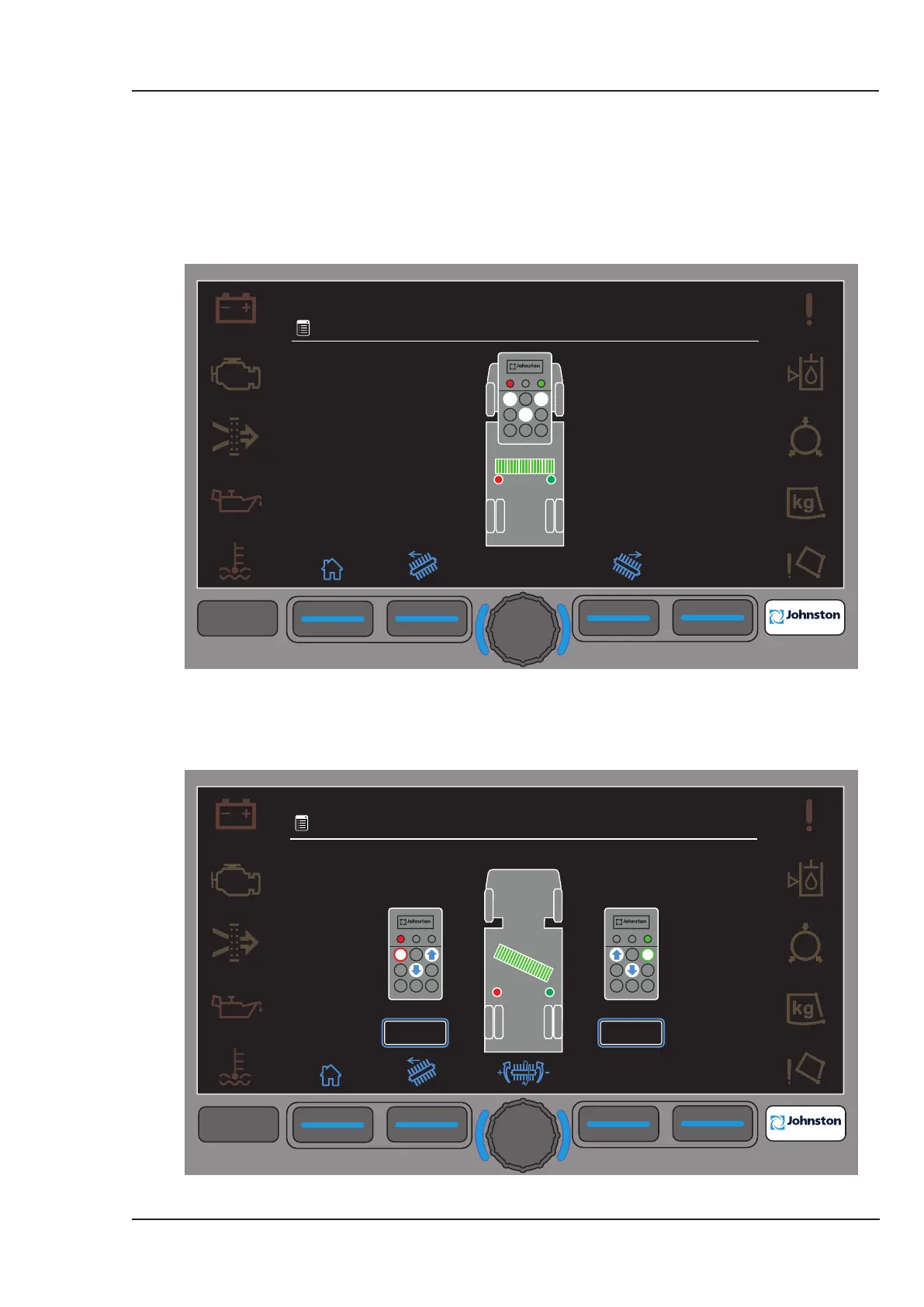

Menu 4.10 - Pendant LED light up as shown.
Select Slew direction using F2 (LH Slew) or F3 (RH Slew). On selection of slew WSB
begins to rotate in direction selected. All other sweepgear controls are locked for this
process.
Main Menu 4.10.1 - RH Slew selected, F3 icon disappears, WSB slews right hand and
rotates. Pendant remains as before. WSB Speed control option becomes adjustable
with potentiometer if option tted (4.10.2 for LH Slew).
