27 28
centre-line of seating position
Pull to increase tension

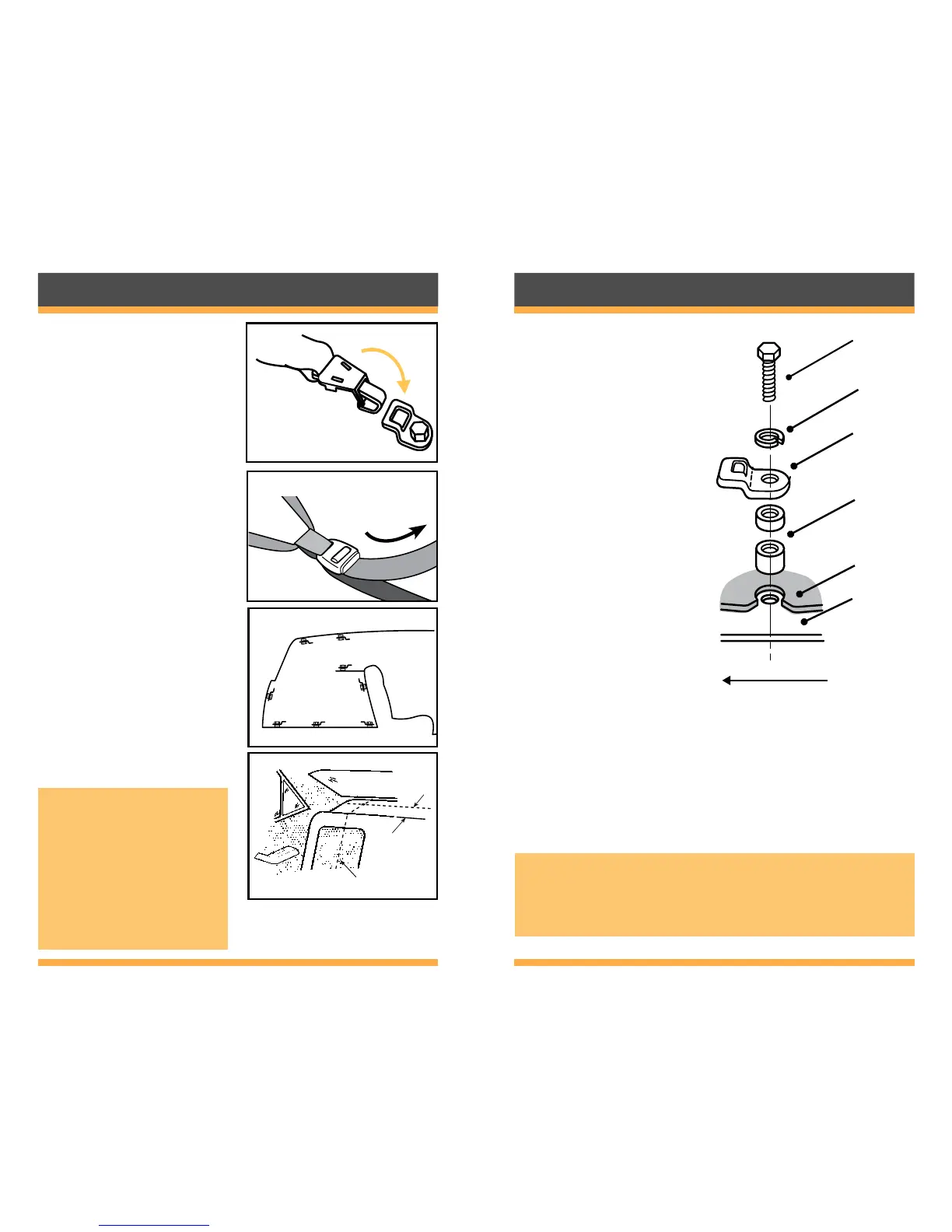

Installation - Tether Anchorage
If the car is fitted with a child
restraint anchorage point:
Locate the anchorage point
behind the rear seating
position (consult the vehicle
owners handbook for loca-
tion of the anchorage point).
Remove the thread plug from
the parcel shelf/floor/roof and
install the attachment bolt as
shown opposite.
CAUTION:
DO NOT OVERTIGHTEN THE
ATTACHMENT BOLT. MAXI-
MUM TORQUE 20Nm.
Installation - Tether Anchorage
Attachment
Bolt
Lock
Washer
Spacers
(if
required)
Anchor
Fitting
Vehicle
Metal
Structure
Vehicle
Trim
FRONT OF VEHICLE
Always connect the snap
hook securely to the anchor-
age fitting.
Adjust the tether tension until
the webbing is pulled tight
- but not so tight that it is
lifting the child restraint off the
vehicle seat.
The anchor fitting must be
aligned as shown unless
stated otherwise in the vehicle
owners handbook.
If drilling a new hole, select a
position on the centre line of
the seating position, and no
closer than 100 mm from the
front edge of the parcel shelf.
In some vehicles without
a fixed parcel shelf an
extension tether strap
may be required. These
are available in several
different lengths and can
be obtained from child
restraint retail outlets.
THIS RESTRAINT IS NOT SUITABLE FOR USE WHERE
THE ANCHORAGE STRAP MAY FALL INTO A SPLIT IN
THE SEAT BACK (E.G. HATCHBACK OR WAGON).
