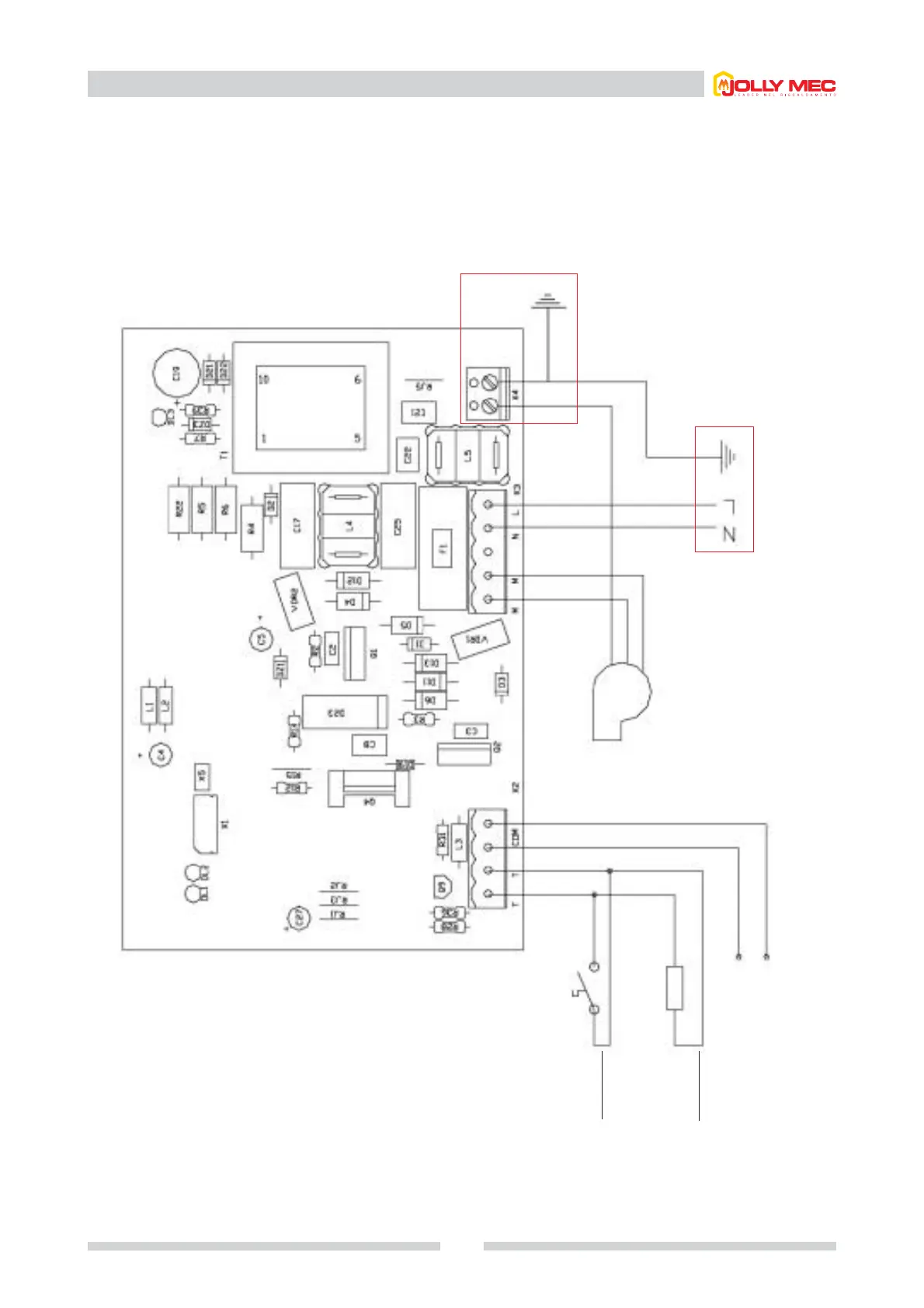

1.2 Controller BP07 wiring diagram
7
Manual
version
Automatic
version
Thermostat
Probe PT100
Fan
Control display
Earth
Connect to the earth
of the metal box
230V line
