Flap
The flap control (Figure 7.2-2) is via a black handle located on the left-
hand side of the cockpit. The flap handle can be freed from its detent by
rotating it slightly clockwise as seen from the rear.
Figure 7.2-2

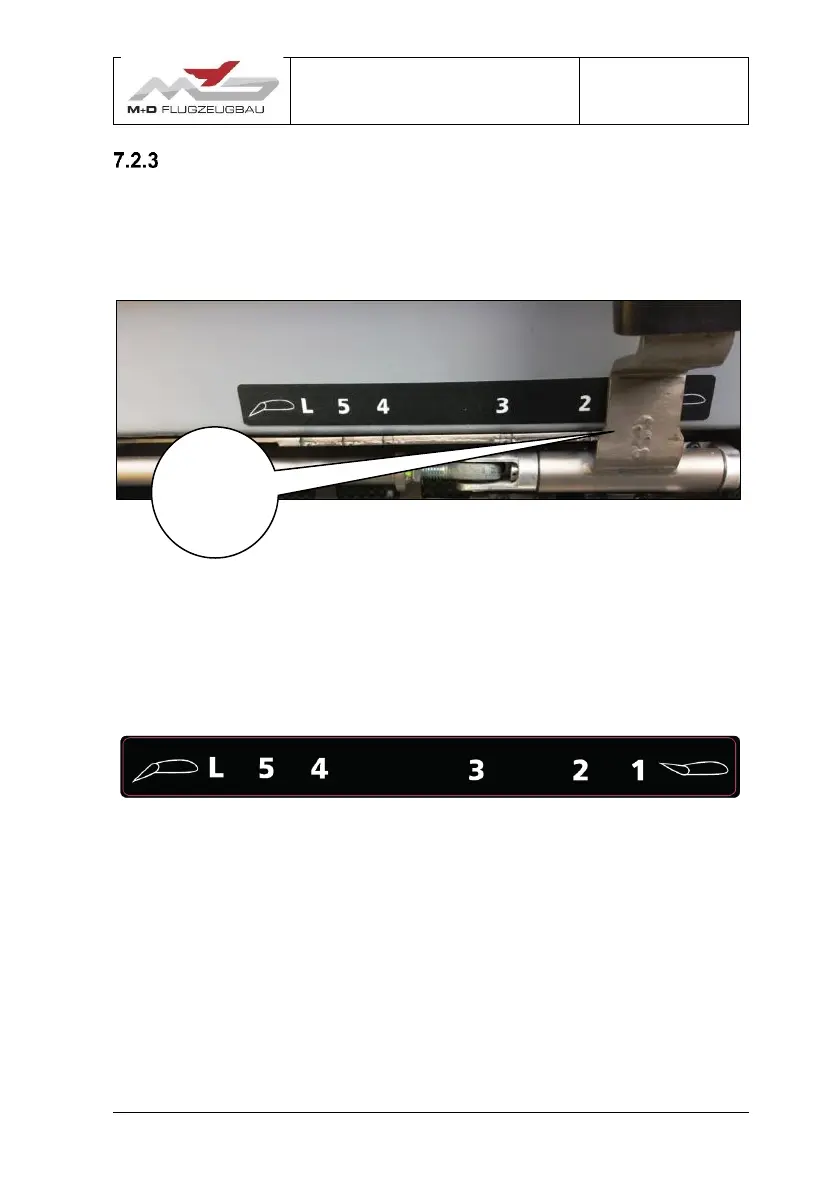

The flap setting is indicated on the flap indicator plate (Figure 7.2-3),
positioned just above the flap handle. It has six graduations, namely flap
settings 1, 2, 3, 4, 5 and
L. Setting 1 is the most negative setting and
setting L is the most positive setting.
Figure 7.2-3
Flap
