JS-MD 3
Aircraft Flight Manual
MD10-AFM-00-001
Issue: 01
Rev. 00
Rev. Date: 14-Feb-20
Page 5-5
Flight polar

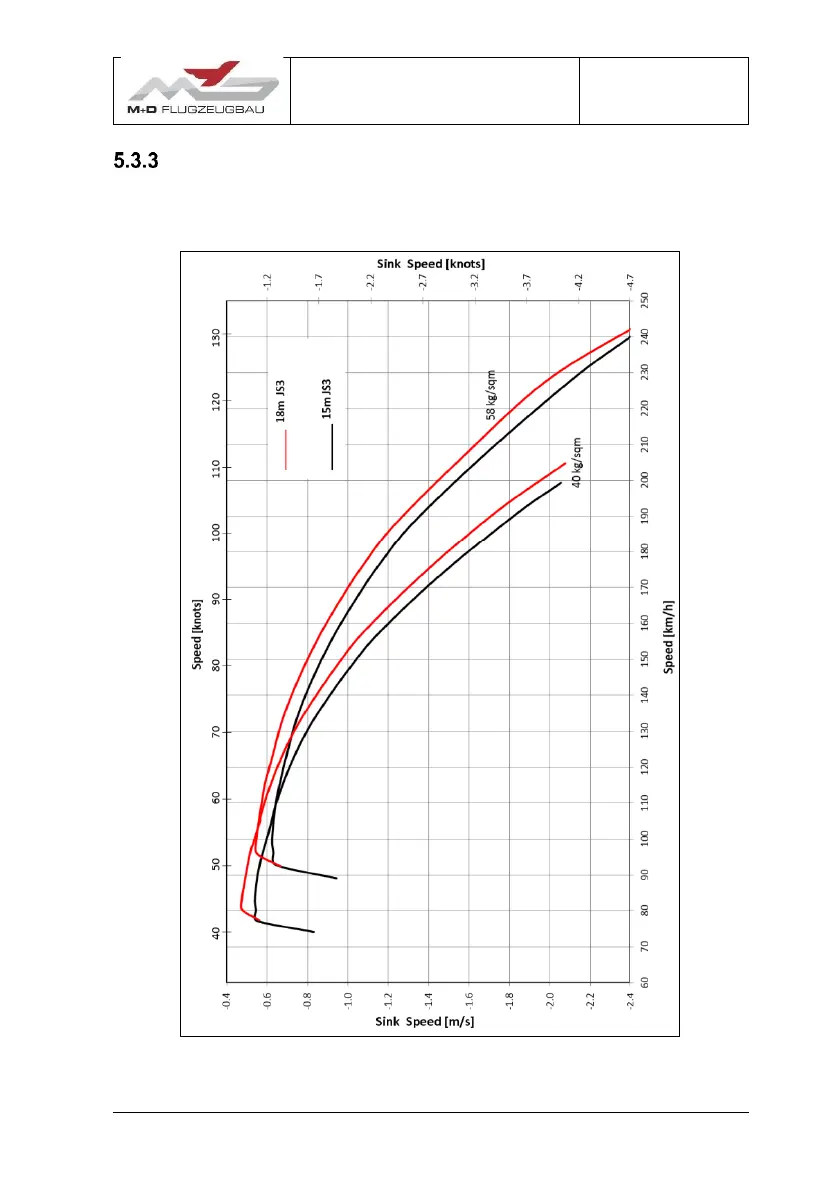

Figure 5.3-1 illustrates the calculated polar for the JS-3 in the 15 m and
18 m configurations for two wing load cases:
Figure 5.3-1
