Jonsered 2077 Workshop Manual

16
1
2
Safety equipment
1

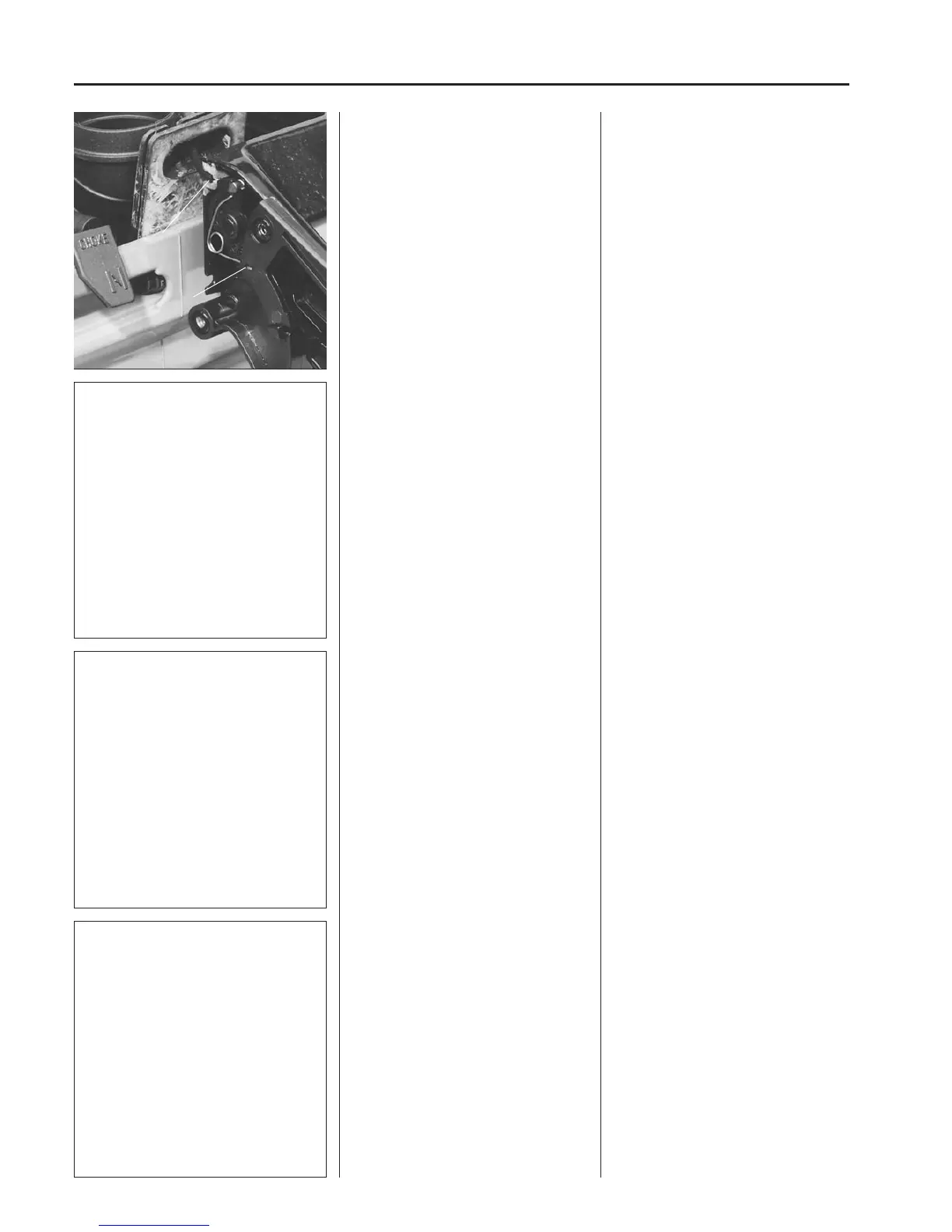

Fitting mod. 2095
Replace damaged or worn parts and fit in
the reverse order to dismantling.
Fitting mod. 2095
Replace damaged or worn parts.
Fit in the reverse order to dismantling.
Pay attention to the following:
● The spring’s straight shank should be
fitted in the throttle control lock (1).
● Make sure the throttle wire housing is
well pressed down in the recess (2).
● Check that the short-circuiting cable
sits in the recess so that it is not
clenched when the handle half is
screwed tight.

Jonsered 2077 Specifications

General

Spark Plug	Champion RCJ7Y
Oil Tank Volume	0.4 liters
Chain Gauge	0.058 inch
Weight	6.8 kg (without cutting equipment)
Chain Pitch	0.325 inches
