Safety equipment
1
0,8 mm

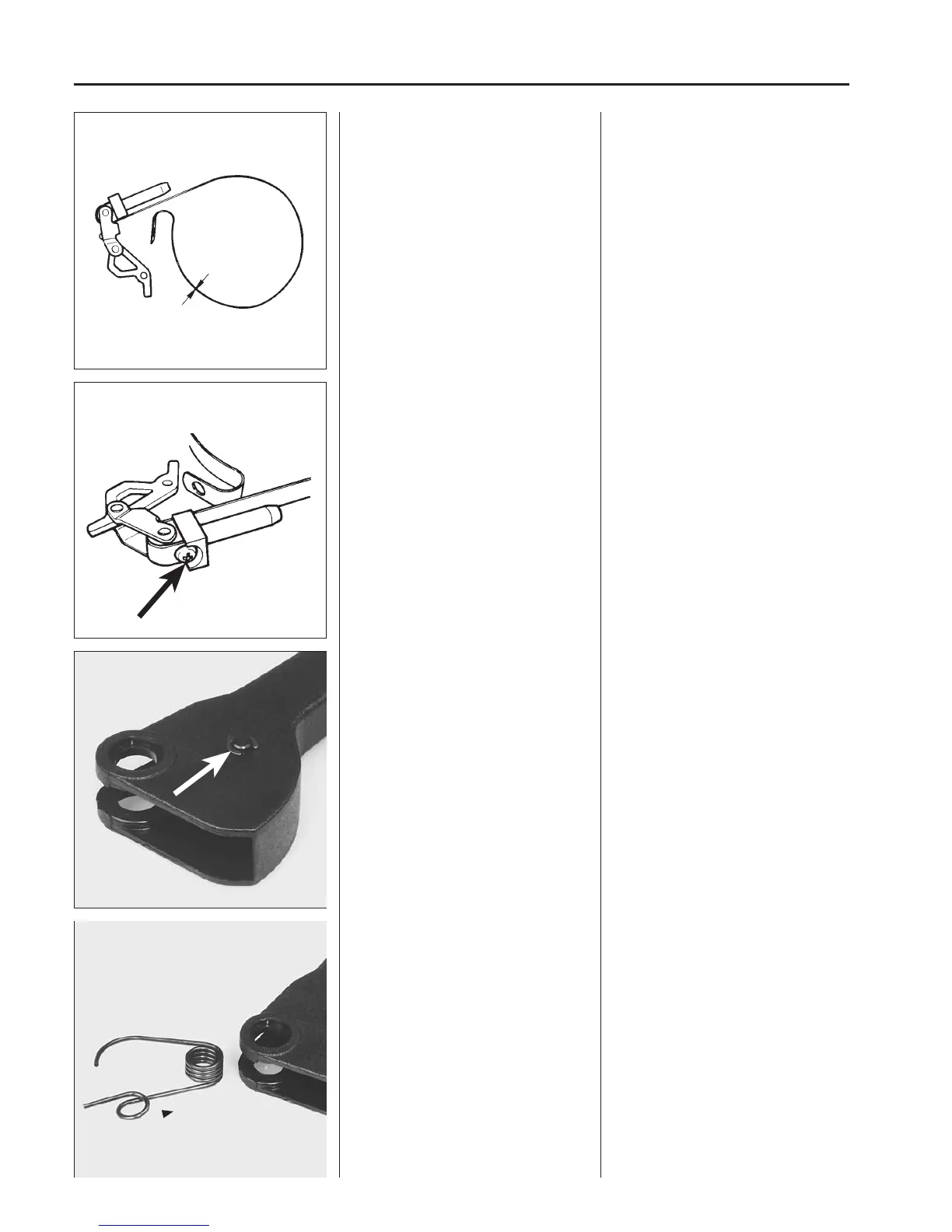

The brake band must have a minimum
thickness of 0.8 mm at the most worn
point.
Remove the screw and replace the brake
band.
Dismantle the lock-ring and the pin in
order to replace the spring inside the
hand guard.
Assembly
Grease the spring and fit it in the hand
guard.
Check the wear on the brake band.
At the most worn point the band must
have a thickness of at least 0.8 mm.
Otherwise it should be replaced with a
new band.
Remove the screw and fit a new brake
band.
Check after fitting that the brake band
does not touch the toggle-joint and ob-
struct its movement.
Inside the hand guard there is a spring
which is accessible for replacement after
the lock-ring and pin are dismantled.
Use a small screwdriver to remove the
lock-ring.
Assembly
Grease the spring and push it in the hand
guard as far as it goes.
Fit the pin and lock-washer.
NOTE!
The pin should not go through the eye on
the spring.
Check that the spring is turned correctly.
