Replaces
545192179 - 6/22/10
NOTE : Illustration may differ from actual model due to design changes.
545192179
7/29/11
Page:

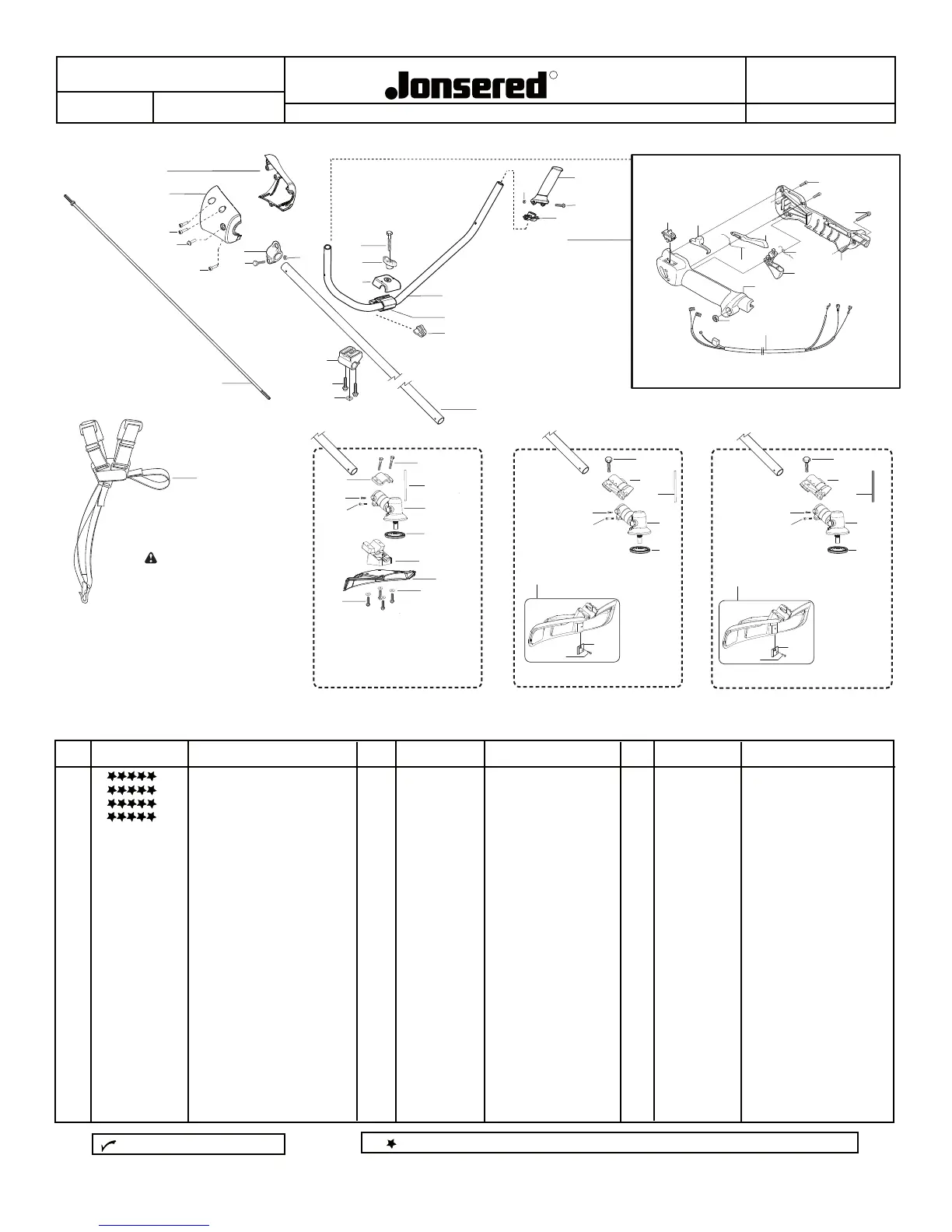

PARTS LIST
R
CC 2128 (EU/AU)
1
Parts List No.
Date
MODEL
WARNING
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by Qualified Service
Personnel.
Ref. Part No. Description
Ref. Part No. Description
Ref. Part No. Description
1. Nose Cone - LH
2. Nose Cone - RH
3. Screw
4. Screw
5. 503941002 Hanger
6. 503200716 Screw
7. 731231401 Nut
8. 725238651 Screw
9. 502219301 Knob
10. 503722902 Cover - Handlebar
11. 503724312 Assy - Handlebar
(Incl. 10,12,13,14,15,16,17)
12. 503750001 Bracket - Handlebar
13. 502211201 Clip-Handlebar
14. 731231401 Nut
15. 537172810 Handle - Assist
16. 503200245 Screw
17. 537172903 Cover-Assist Handle
18. 545125502 Assy-Throttle Housing
(Incl. 19,20,21,22,23,
24,25,26,27,28,29,30)
19. 537419001 Switch-Stop
20. 537160704 Lockout-Starter Throttle
21. 537174301 Spring - Lockout
22. 503221013 Nut
23. 506495102 Lockout - Throttle
24. 537160205 Housing - Throttle -LH
50. 503210716 Screw
51. 503798801 Blade
52. 725237071 Screw
53. 503935501 Clamp - Shield
537312901 Guard - Transport
530031159 Wrench-Hex
502114602 Wrench-Spark Plug
= New Part Number For This IPL
= Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)
25. 545125801 Assy - Cable Wire
26. 537174201 Spring - Trigger
27. 506495002 Trigger - Throttle
28. 503216618 Screw
29. 503200735 Screw
30. 537160304 Housing-Throttle - RH
31. 545180876 Kit - Driveshaft
32. 503882302 Holder
33. 503216825 Screw
34. 502197101 Nut
35. 545165001 Driveshaft - solid
36. 544845802 Harness
37. 537047501 Bracket - Shield Clamp
38. 503201412 Screw
39. 503200725 Screw
40. 503200216 Bolt
41. 725236871 Bolt
42. 502285901 Pin - Locking
43. 537333801 Gear Head
44. 537234901 Disc - Driver
45. 537293401 Clamp - Shield
46. 537217101 Guard
47. 503230011 Washer
49. 545081879 Kit-Shield
(Incl. 50,51)
43
42
52
53
38
39
39
50
50
51
51
18
8
9
10
6
32
33
34
7
5
31
11
17
16
15
14
13
28
29
30
26
27
24
22
25
21
20
23
35
36
37
19
12
47
49
41
40
45
43
44
42
46
38
44 44
43
42
52
53
38
39
49
3
3
2
1
4
To Next Page
