MAINTENANCE
English – 35

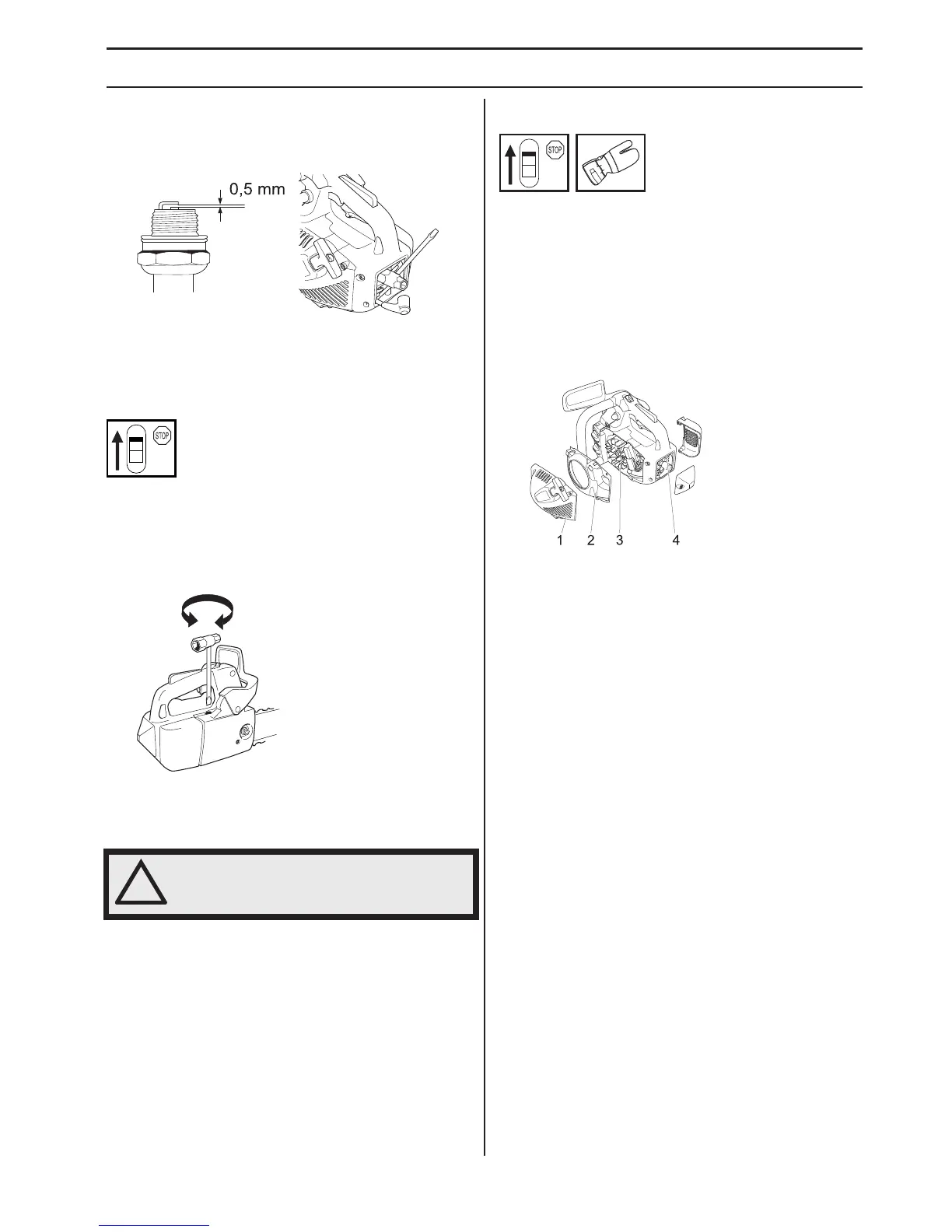

before taking any further action. If the spark plug is dirty,
clean it and check that the electrode gap is 0.020 inch (0.5
mm). The spark plug should be replaced after about a
month in operation or earlier if necessary.
Note! Always use the recommended spark plug type! Use
of the wrong spark plug can damage the piston/cylinder.
Check that the spark plug is fitted with a suppressor.
Adjustment of the oil pump
The oil pump is adjustable. Adjustments are made by
turning the screw using a screwdriver or combination
spanner. The machine is supplied from the factory with
the screw set to position 2. Turning the screw clockwise
will reduce the oil flow and turning the screw anti-
clockwise will increase the oil flow.
Recommended settings:
Bar 13"-14": Position 1
Bar 16": Position 2
Cooling system
To keep the working temperature as low as possible the
machine is equipped with a cooling system.
The cooling system consists of:
1 Air intake on the starter.
2 Air guide plate.
3 Fins on the flywheel.
4 Cooling fins on the cylinder.
5 Cylinder cover (directs cold air over the cylinder).
Clean the cooling system with a brush once a week, more
often in demanding conditions. A dirty or blocked cooling
system results in the machine overheating which causes
damage to the piston and cylinder.
Note! The cooling system on a chain saw with catalytic
converter must be cleaned daily. This is particularly
important on chain saws with catalytic converters,
because the higher exhaust temperature requires
efficient cooling of the engine and the catalytic converter
unit.
!
WARNING! The engine must be stopped
when making adjustments.
-
+
