6 – English
WHAT IS WHAT?

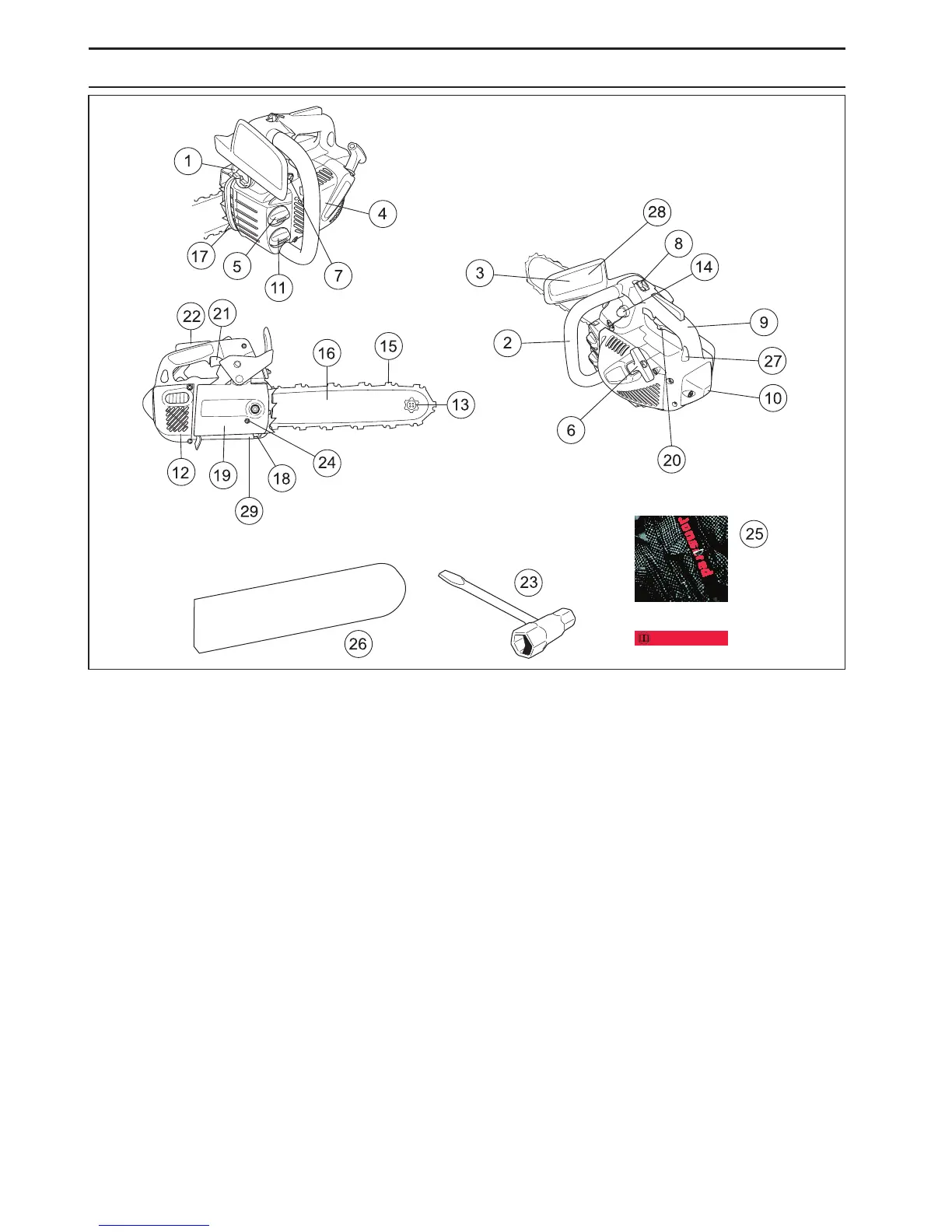

What is what on the chain saw?
1 Filter cover
2 Front handle
3 Front hand guard
4 Starter
5 Chain oil tank
6 Starter handle
7 Adjuster screws carburetor
8 Stop and choke control: Ignition on/off switch Choke
control/Start throttle lock Working position
9 Rear handle
10 Spark plug cap
11 Fuel tank
12 Muffler
13 Bar tip sprocket
14 Air purge
15 Saw chain
16 Guide bar
17 Bumper spike
18 Chain catcher
19 Clutch cover with built-in chain brake.
20 Oil pump adjustment screw
21 Throttle trigger
22 Throttle lockout
23 Combination spanner
24 Chain tensioning screw
25 Operator’s manual
26 Guide bar cover
27 Fixing eye for safety line
28 Information and warning decal
29 Product and serial number plate
