Jonsered CS 2145 User Manual

English – 5
WHA T IS WHA T?

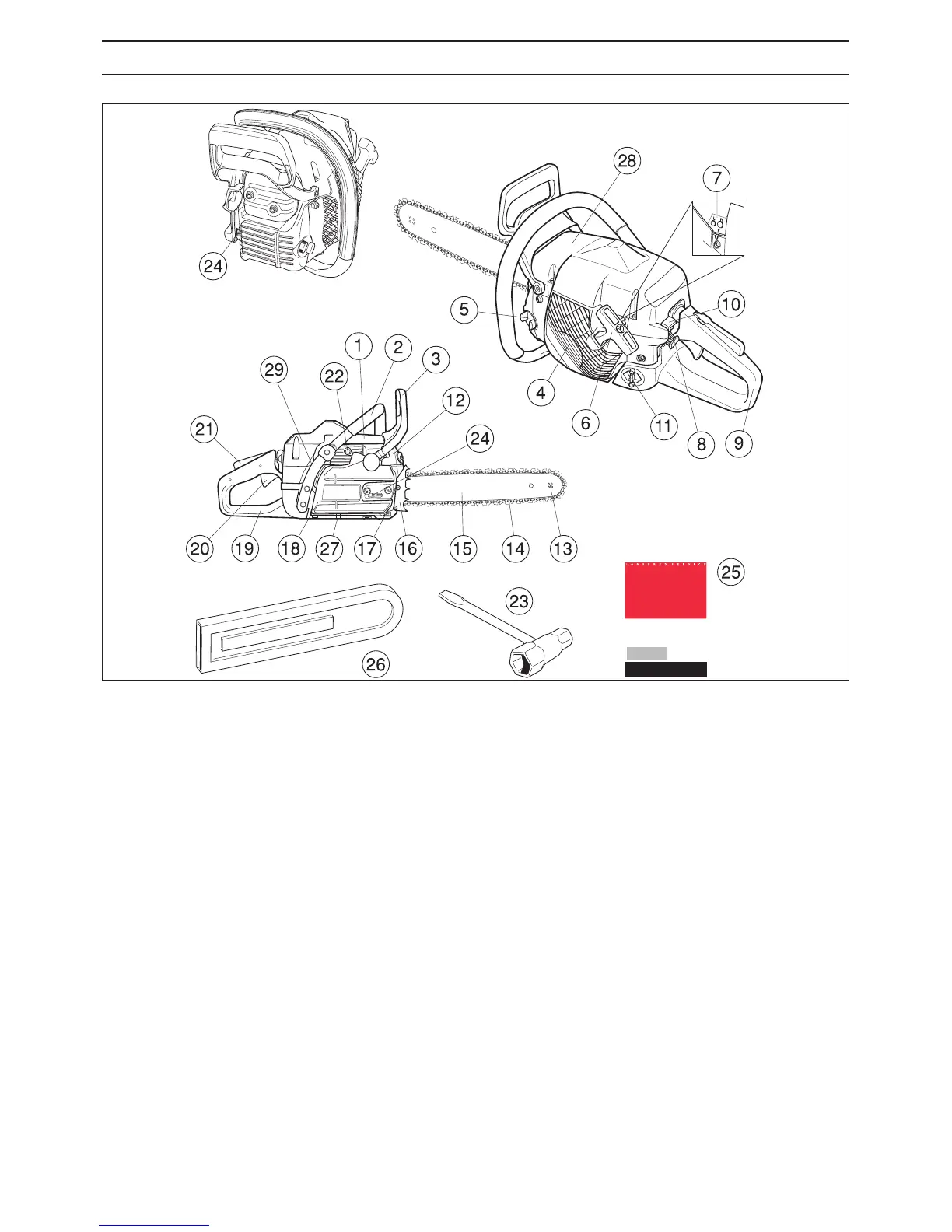

What is what on the c hain saw?
1 Cylinder cover
2 Front handle
3 Front hand guard
4 Starter
5 Chain oil tank
6 Starter handle
7 Adjuster screws carburettor
8 Choke control/Start throttle lock
9 Rear handle
10 Stop switch (Ignition on/off switch.)
11 Fuel tank
12 Muffler
13 Bar tip sprocket
14 Chain
15 Bar
16 Spike bumper
17 Chain catcher
18 Clutch cover
19 Rear handle with right hand guard
20 Throttle control
21 Throttle lock
22 Decompression valve (CS 2145, CS 2150)
23 Combination spanner
24 Chain tensioning screw
25 Operator ′ s manual
26 Bar guard
27 Oil pump adjustment screw
28 Information and warning decal
29 Product and serial number plate

Jonsered CS 2145 Specifications

General

Engine Power	2.1 kW
Weight	4.9 kg
Oil Tank Volume	0.26 liters
Bar Length	13-18 inches
Chain Pitch	0.325 inches
Chain Gauge	0.05 inches
Cylinder Displacement	45 cm³
