Jonsered FR 13 - Electrical System; Wiring Diagrams

56 – English
8009-197
6019-001
Electrical System

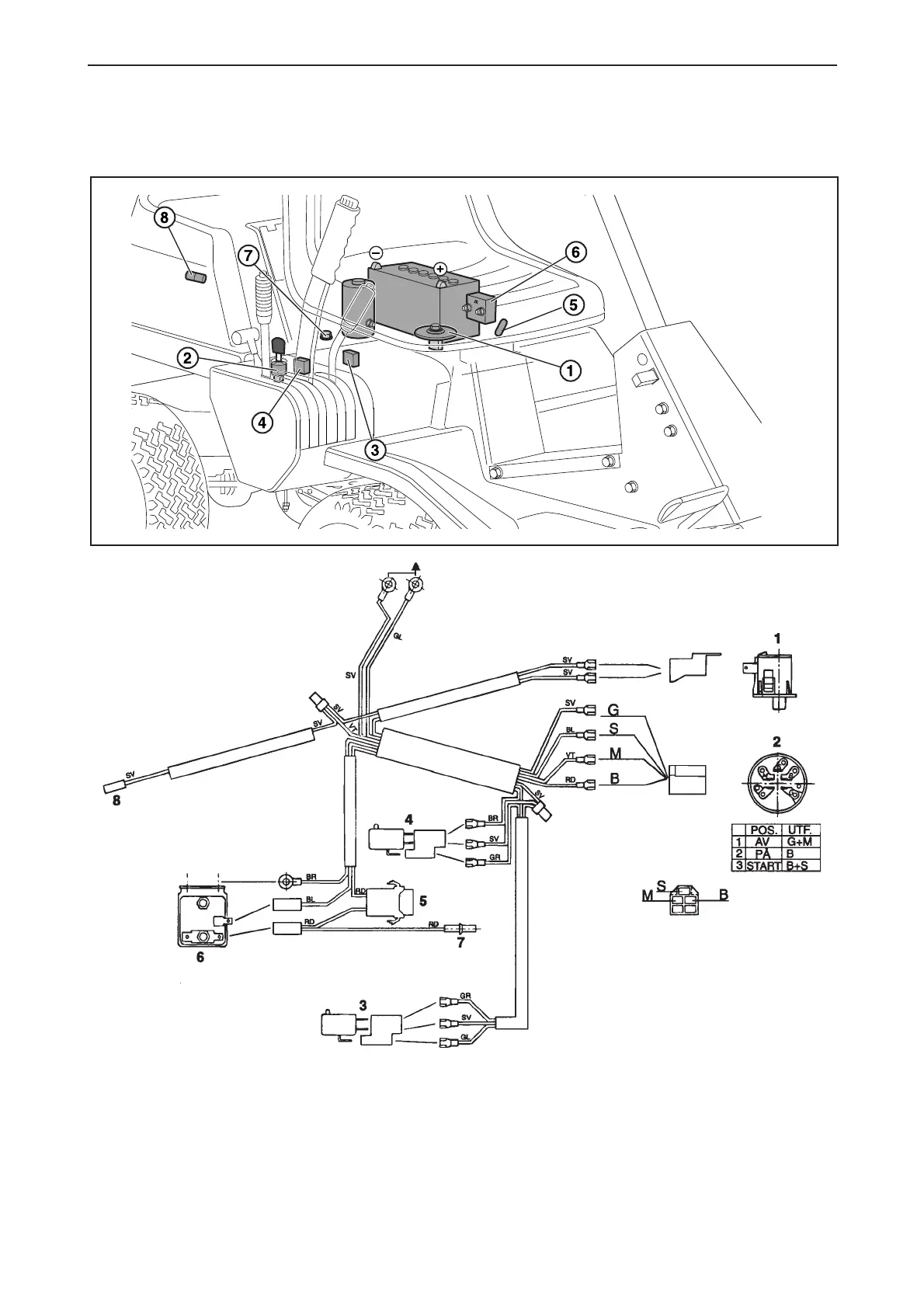

Wiring Diagram, FR 13, FR 2111
1. Microswitch, seat
2. Ignition lock
3. Microswitch, lifting lever
4. Microswitch, gear
5. Fuse 15A.
6. Start relay
7. Engine/charging
8. Engine/stop
Key for colour abbreviations in wiring diagram
SV = Black
RD = Red
BR = Brown
BL = Blue
VT = White
GR = Green
GL = Yellow
