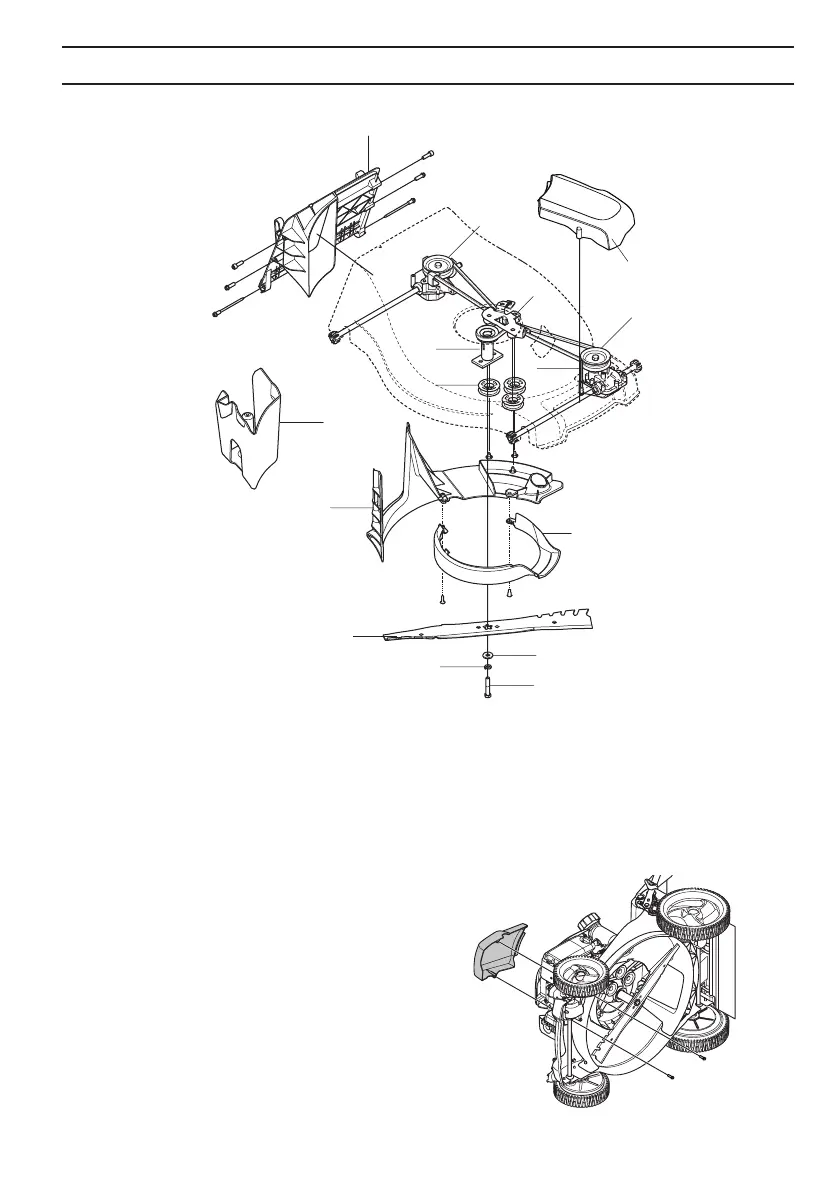

Drive belt
1 Mulch plug
2 Rear insert
3 Transmission drive pulley
4 Idler bracket
5 Drive cover
6 Blade adapter
7 Idler pulleys
8 Front belt keeper
9 Stripper ring
10 Blade
11 Hardened washer
12 Lock washer
13 Blade bolt
14 Belt cover
Remove the drive belt
• Empty the fuel tank by running the machine until the
tank is empty.
• Always disconnect the spark plug before performing
maintenance or accessing mocable parts.
• Turn lawn mower on its side. Make sure air filter and
carburetor is facing upward.
• Remove drive cover.
2
3
6
7
4
5
3
9
8
11
12
13
14
1
10
