5
(1) Large Flat
Washer
Steering
Wheel Insert
Steering
Extension
Shaft
Steering
Sleeve
Steering Wheel
Steering
Wheel Adapter
(1) Knob
(1) Washer
17/32 x 1-3/16 x 12 Gauge
Seat
(2) Keys
Keys
Slope Sheet
(1) Oil Drain Tube
For Future Use
(1) Hex Bolt 1/4-28 x 1-1/4
(1) Locknut 1/4-28
(1) Locknut
1/2-20

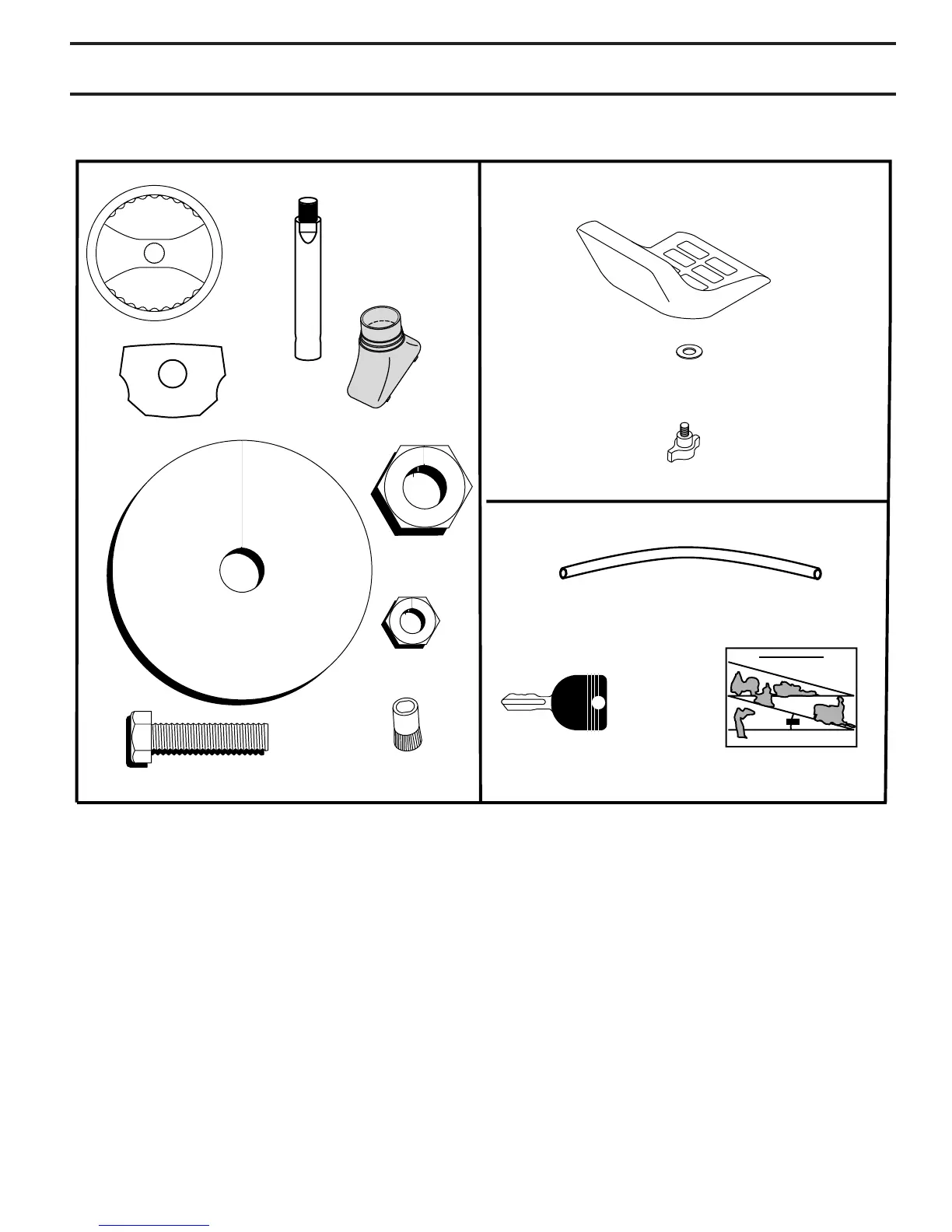

CONTENTS OF HARDWARE PACK
