12
6
74
5
13
13
53
8
9
8
74
7
9
8
7
62
4
74
35
16
19
57
60
59
58
28
13
22
64
70
68
73
67
67
66
15
15
14
14
61
74
2
6
57

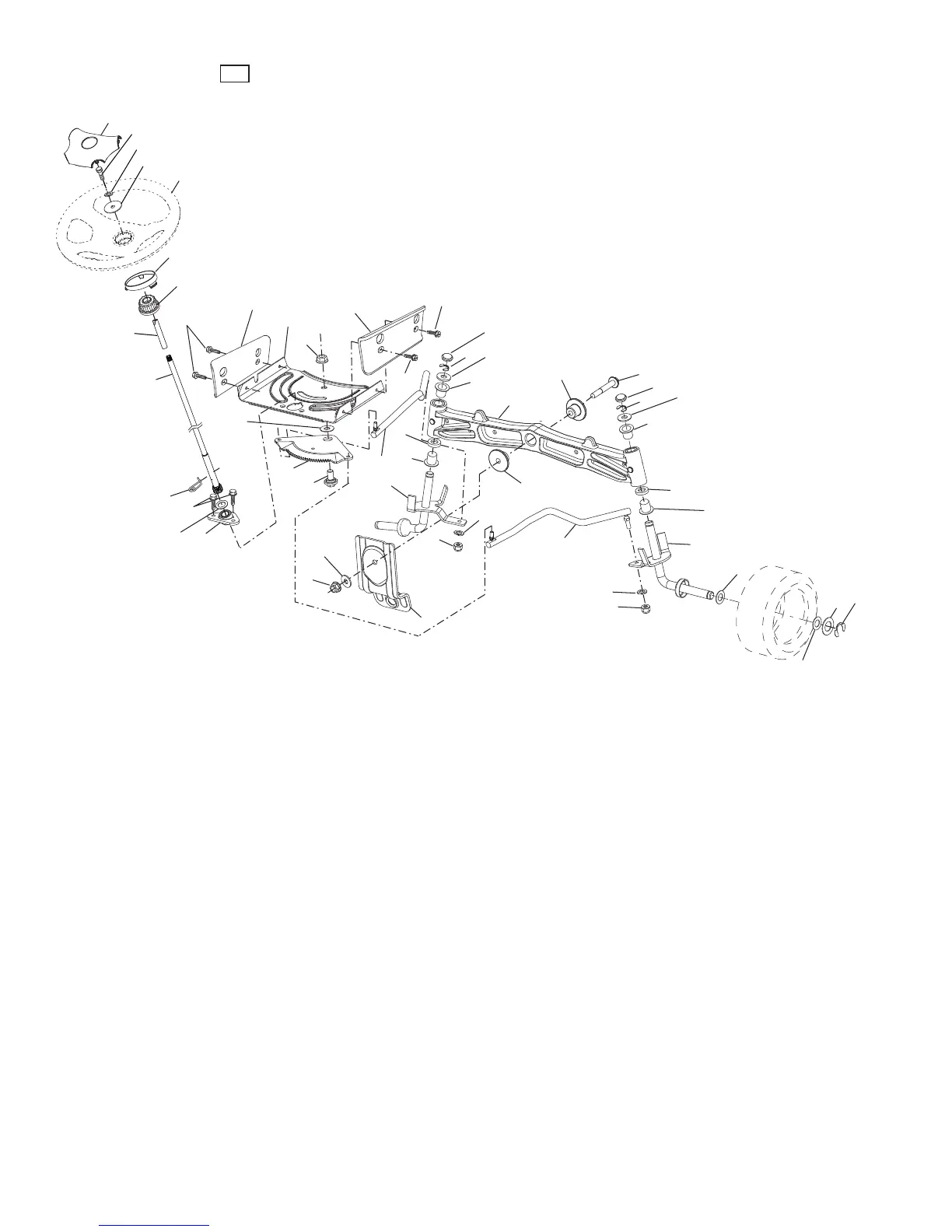

steering-tex_7-husq
63
63
63
71
21
26
1
20
45
33
72
KEY PART
NO. NO. DESCRIPTION
1 532 19 46-37 Wheel, Steering
2 532 19 56-73 Axle Asm., Front
4 532 40 30-87 Spindle Asm., LH
5 532 40 30-88 Spindle Asm., RH
6 532 12 49-31 Bearing, Race Thrust Harden
7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring, Clip #T5304-75
9 532 12 12-32 Cap, Spindle
13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
14 810 04 06-00 Washer, Lock Hvy Hlcl Spr 3/8
15 873 54 06-00 Nut, Crown Lock 3/8-24 unf
16 532 19 60-74 Shaft Steering
19 532 19 47-29 Plate Steering
20 532 41 12-91 Boot, Steering
21 532 18 67-37 Adapter, Wheel Steering
22 532 19 48-45 Bushing, Strg. Blk
26 532 19 46-03 Insert, Wheel Steering
28 817 00 05-12 Screw 3/8-16 x 3/4
33 810 04 05-00 Washer Lock 5/16
35 532 19 47-32 Gear, Sector Plate
45 819 11 38-12 Washer 11/32 x 3/8 x 12 Ga.
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
53 532 18 89-67 Washer Hardened .793 x 1.637 x .060
57 532 40 74-65 Bracket Upstop
58 532 19 47-47 Bolt Shoulder Sector Pivot CFM
59 532 19 47-48 Washer Thrust Sector Steering
60 873 97 10-00 Nut Flange Lock 5/8-11
61 532 19 47-40 Draglink, LH
62 532 19 47-41 Draglink, RH
63 817 00 05-12 Screw 5/16-18 x 3/4
64 532 19 98-49 Retainer Clip Spring Steering
66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr
67 532 19 47-37 Bushing PM Front Axle
68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
70 532 19 61-97 Bracket Deck Susp. Front
71 532 19 60-75 Shaft Extension Steering
72 874 78 05-72 Bolt 5/16-18 unc x 4.5. Gr. 5
73 532 19 91-62 Washer 1.5 x .505 x .118
74 532 12 49-37 Bearing
TRACTOR - - MODEL NO. LT2216A2 (96041003700), PRODUCT NO. 960 41 00-37
SEAT ASSEMBLY
42
