Jonsered LT2216A2 - Wheels and Tires

2
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-tex

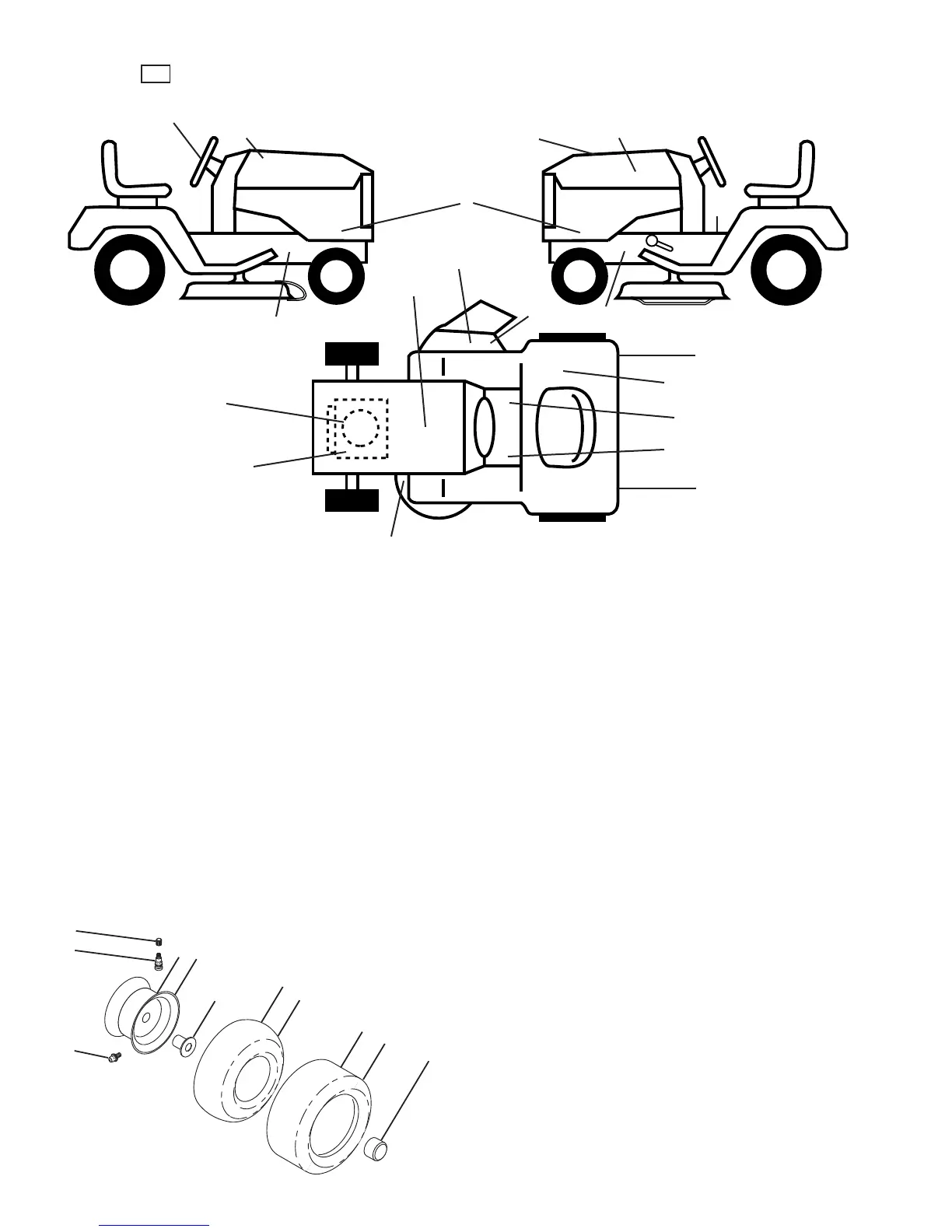

WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 13 83-36 Rim Asm 6" Front Service
4 532 05 99-04 Tube Front (Service Item Only)
5 532 10 62-22 Tire F T 15 x 6 0 - 6 Service
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 17 50-39 Cap Axle Blk 1 50 x 1 00
9 532 12 20-82 Tire R T 20 x 10-8 Service
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 13 83-37 Rim Asm 8" Rear Service
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
11
9
1 532 40 03-89 Decal, Operators
2 532 18 95-53 Decal, Hood
3 532 19 68-41 Decal, Warning Eng. Symbols
4 532 40 93-70 Decal, Hood Panel
5 532 15 97-36 Decal, Chassis Hot Muffler
6 532 18 04-32 Decal, Fender 100 DB/CE
7 532 18 21-66 Decal, Cutfinger CE
8 532 40 86-26 Decal, Rpl
9 532 14 50-05 Decal, Battery Dnge/Poi
10 532 14 08-37 Decal, Saddle Brake Parking
11 532 19 63-57 Decal, Warning
12 532 16 03-96 Decal, Mower V-Belt Schematic
13 532 15 97-37 Decal, Brake/Clutch Symbol
14 532 40 94-61 Decal, Eng. HP
16 532 18 57-73 Decal, Steering
17 532 18 39-30 Decal, Cover Belt
18 532 40 93-71 Decal, Fender
- - 532 40 95-05 Pad, Footrest, LH
- - 532 41 12-73 Pad, Footrest, RH
- - 532 16 25-98 Decal, Drawbar Load Limit
- - 532 16 69-60 Decal, Bypass
- - 532 40 87-30 Manual Oper. Euro
- - 532 40 87-32 Manual Oper. Scand
- - 532 40 87-33 Manual Oper. E-Bloc
- - 532 40 87-34 Manual Oper. Baltic
12
2
4
2
1
8
5
6
10
13
3
5
7
16
14
18
17
TRACTOR - - MODEL NO. LT2216A2 (96041003700), PRODUCT NO. 960 41 00-37
DECALS
27
27
