F

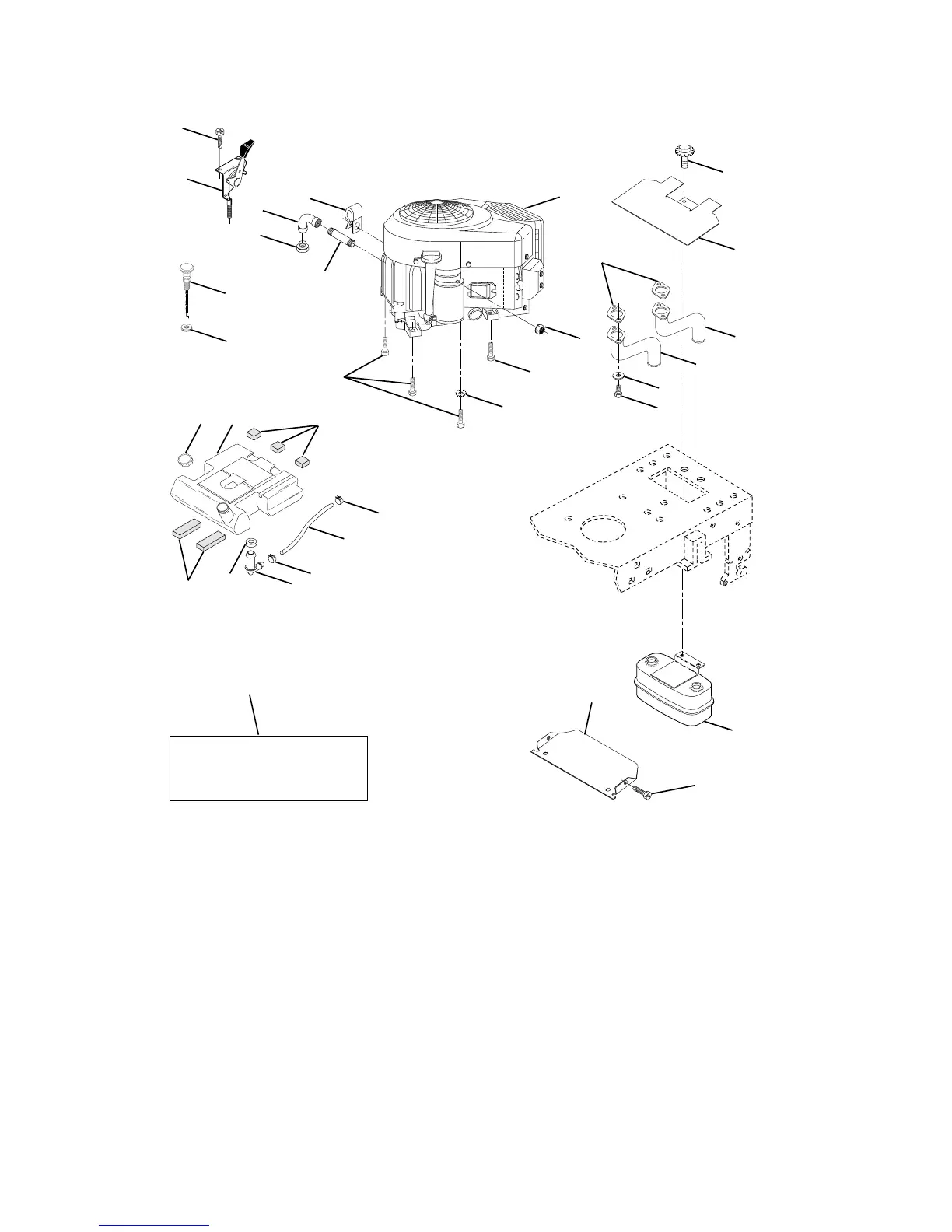

ENGINE
KEY PART
NO. NO. DESCRIPTION
1 532148875 Control Throt
2 817720410 Screw Hex Thd Cut 1/4-20x5/8 T
3 - - - - - - - - Engine
4 532149723 Muffler Twin Lo-Twin
5 532122434 Tube, Manifold Lh
6 532122435 Tube, Manifold Rh
7 532138129 Clamp
8 532150176 Bolt 5/16-18 Unc x 3/4 w/Sems
10 532145552 Shield Heat LT
11 - - - - - - - - Washer Lock Hvy Hlcl 1/4 (Order
from Engine Manufacturer)
12 - - - - - - - - Bolt, Fin Hex 1/4-20 x 3/4 (Order
from Engine Manufacturer)
13 - - - - - - - - Muffler Gasket (Order from Engine
Manufacturer)
14 813280336 Nipple Pipe 3/8 Npt X 4-1/2"
15 813200300 Elbow Std 90 Degree 3/8-18 Npt
16 811050600 Washer Lock Ext Tooth 3/8
23 532156123 Shield Browning
25 532145996 Choke Control 37"
26 873920600 Nut, Keps 3/8-24 Unf
29 532137180 Kit Spark Arrestor (Flat Scrn)
31 532153630 Tank Fuel 3 50 STLT w/o Sensor
32 532140527 Cap Asm Fuel W/sym Vented
33 532123487 Clamp Hose Blk
34 532106082 Pad, Spacer
35 817490512 Screw Thdrol 5/16-18 x 3/4
37 532142158 Line Fuel 54"
38 - - - - - - - - Plug Oil Drain (Order From Engine
Manufacturer)
39 532109227 Pad, Idler
40 532124952 Bushing
41 532139277 Stem Tank Fuel
78 817490620 Screw, Thdrol 3/8-16 x 1-1/4 Tytt
81 532128861 Nut Flange 1/4-20 Starter Nut
32
31
34
33
37
33
41
40
39
2
1
7
OPTIONAL EQUIPMENT
Spark Arrester
29
10
11
6
5
12
13
26
25
78
14
38
15
16
78
3
81
4
8
35
23
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
10
