C

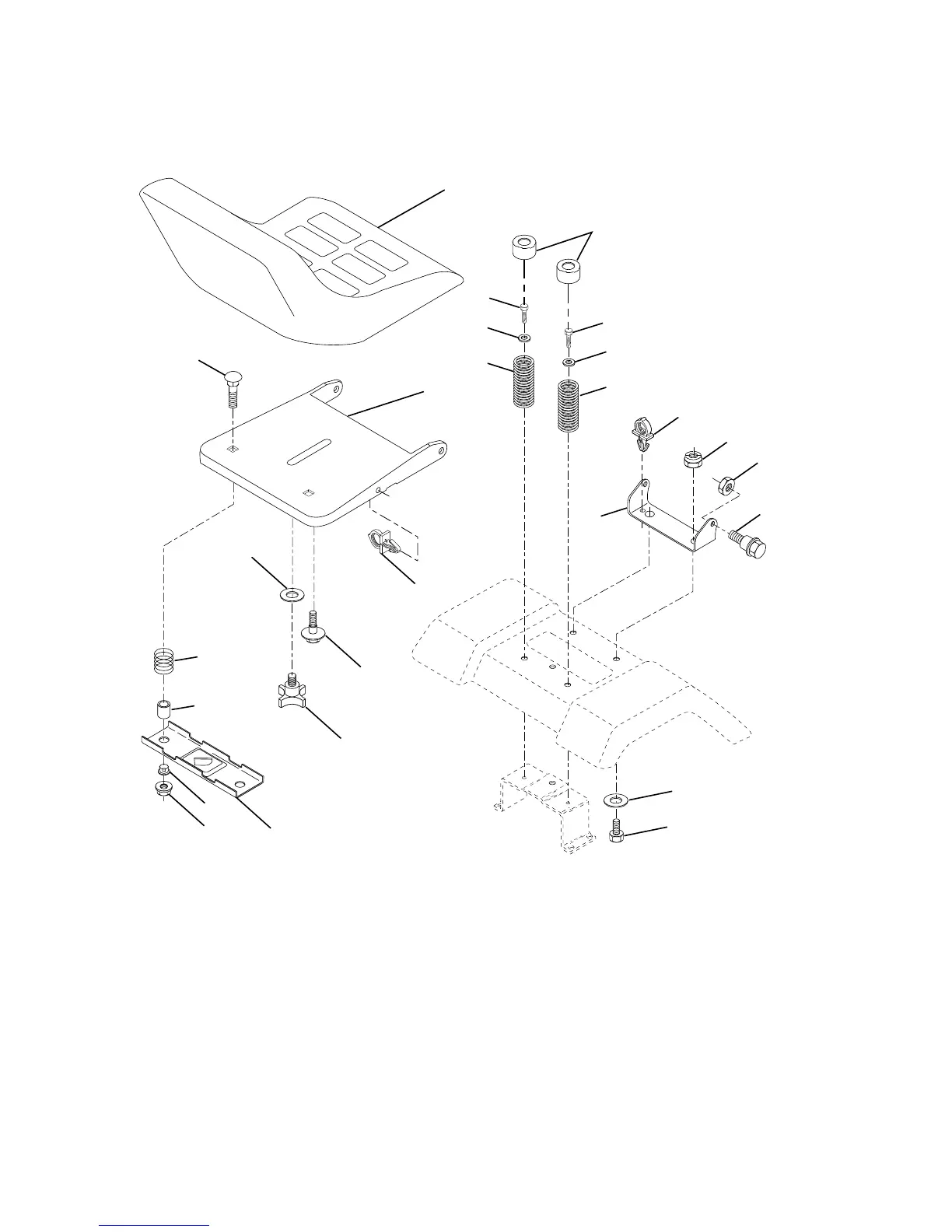

SEAT ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
24
16
15
12
13
17
25
4
3
8
9
7
8
9
7
18
11
2
6
22
21
5
10
5
14
12 532121246 Bracket Mounting Switch
13 532121248 Bushing Snap Blk Nyl 50 Id
14 872050411 Bolt Rdhd Sht Nk 1/4-20x1-3/8
15 532121249 Spacer Split 28x 88 Yel Zinc
16 532123740 Spring Cprsn 1 310 Blk Pnt
17 532123976 Nut Lock 1/4 Lge Flg Gr 5 Zinc
18 532124238 Cap Spring Seat
21 532153236 Bolt Shoulder 5/16-18 Unc 1-2A
22 873680500 Nut Crown Lock 5/16-18
24 819171912 Washer 17/32 X 1-3/16 X 12 Ga
25 532127018 Bolt Shoulder 5/16-18 X 62
1 532127440 Seat
2 532140551 Bracket Pivot Seat 8 720
3 874760616 Bolt Fin Hex 3/8-16 UNC x 1
4 819131610 Washer 13/32 x 1 x 10 Ga.
5 532145006 Clip Push-in Hinged
6 873800600 Nut Lock Hex w/Inx 3/8-16 UNC
7 532124181 Spring Seat Cprsn 2 250 Blk Zi
8 817490616 Screw Thdrol 3/8-16 x 1 TY-TT
9 819131614 Washer 13/32 x 1 x 14 Ga.
10 532140552 Pan Seat
11 532120068 Knob Seat 1/2-13unc Blk
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
11
