7.2 Replacing glass and gaskets in
the door

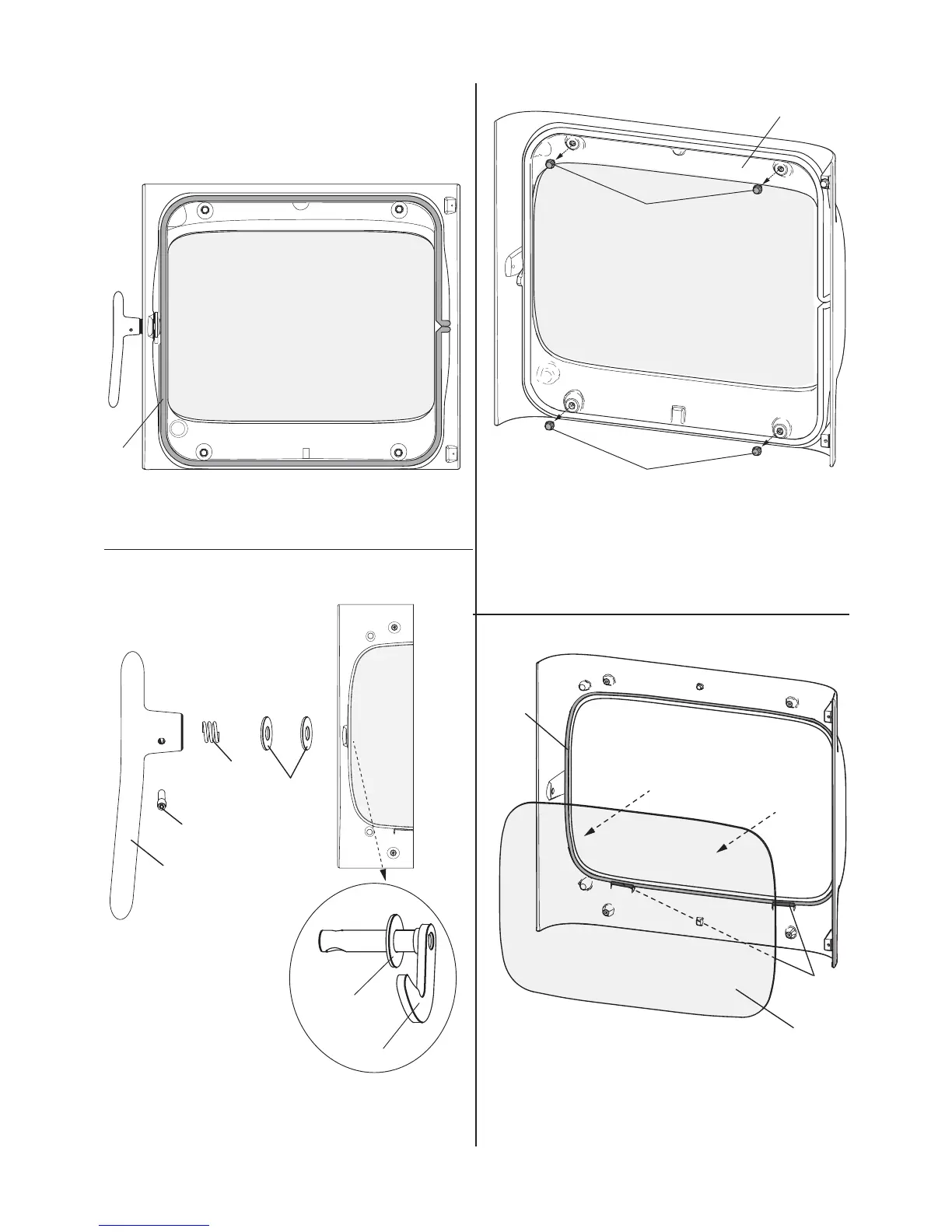

Fig. 36
A
1. Remove the gasket (A) placed on the inside of the door,
clean the gasket groove and glue on a new gasket.
Fig. 37
A
B
C
D
E
F
2. Unscrew the screw (B) and loosen the handle (A).
3. Take out the spring (C) and the two washers (D).
4. Take out the door hook (E) and the washer (F).
Fig. 38
A
A
B
5. If a glass gasket or glass need replacement, fi rst remove
the door handle (see it. 2-4).
6. Unscrew the glass holder (B) that is attached with 4 screws
(A). NB: The glass in the door is loose. Be careful not
to knock the glass when the glass holder is loosened.
Fig. 39
A
B
C
7. Remove the glass (A) carefully. Remove the gaskets (B)
and (C), and clean the gasket grooves.
8. Glue on new gaskets.
