Jøtul F 305 - Page 6

6
ENGLISH
900171-P00
Combustible wall
Outside air connection center
Flue pipe center
680
400
350
***250
250
530
200
***100
250
500
400
680
625
554
554
530
300
300
*15
*520
*520
*15
*544
*544
*15

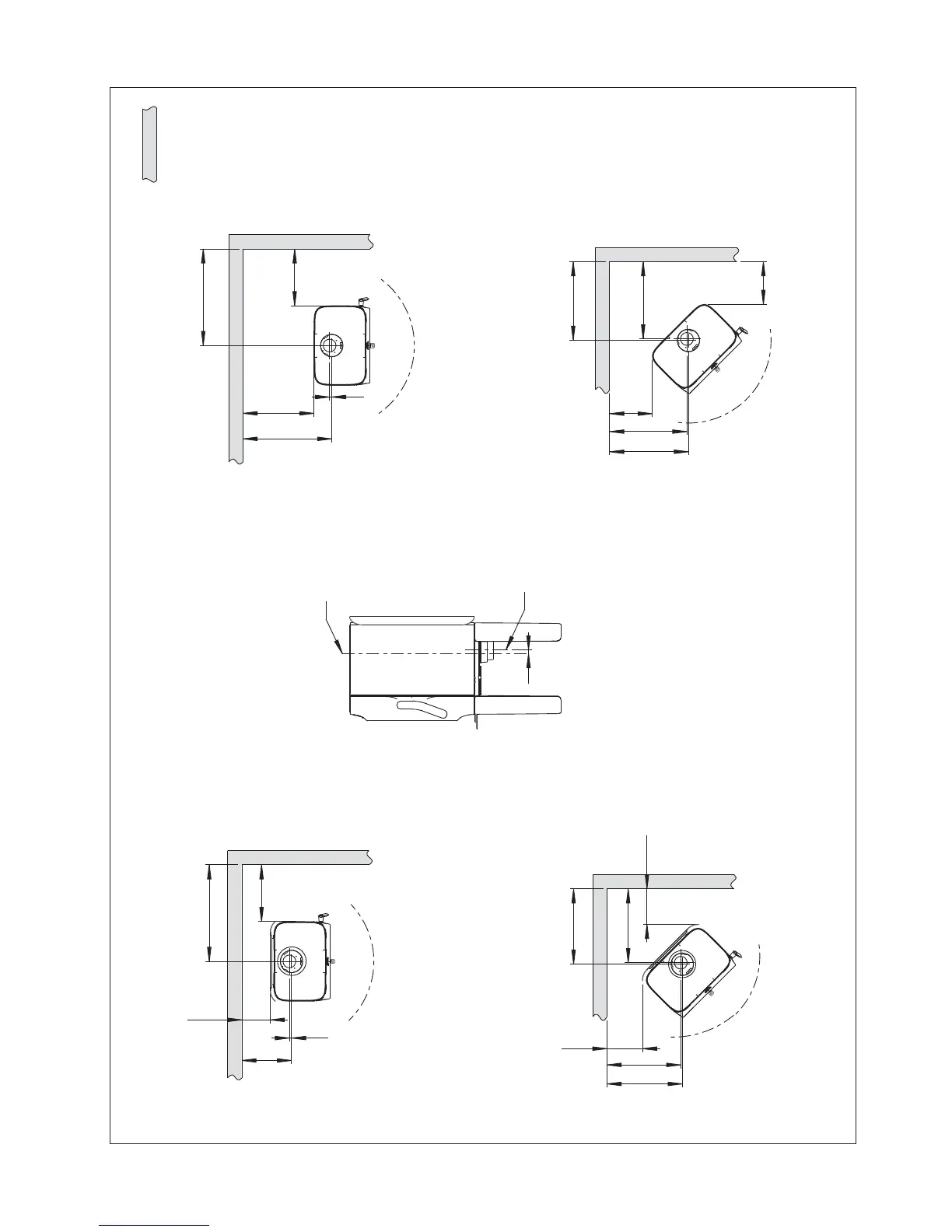

Fig. 1b
* Outside air connection *** Distance to combustible wall with semi-insulated / shielded flue pipe.
With standard convection shield
Min. distance to combustible wall
Without standard convection shield
