JOYTECH PK300DC - Installation; 4.1 Installation Drawing

4
4. Installation
PK300DC/PK350DC swing gate opener is applicable to single leaf gate weight less than 300kg, and
length of the single leaf swing gate should be less than 2.5m/3m. The drive mode adopts the worm
and worm gear to combine the screw rod transmission. This gate opener must be installed inside
the enclosure or yard for protection.

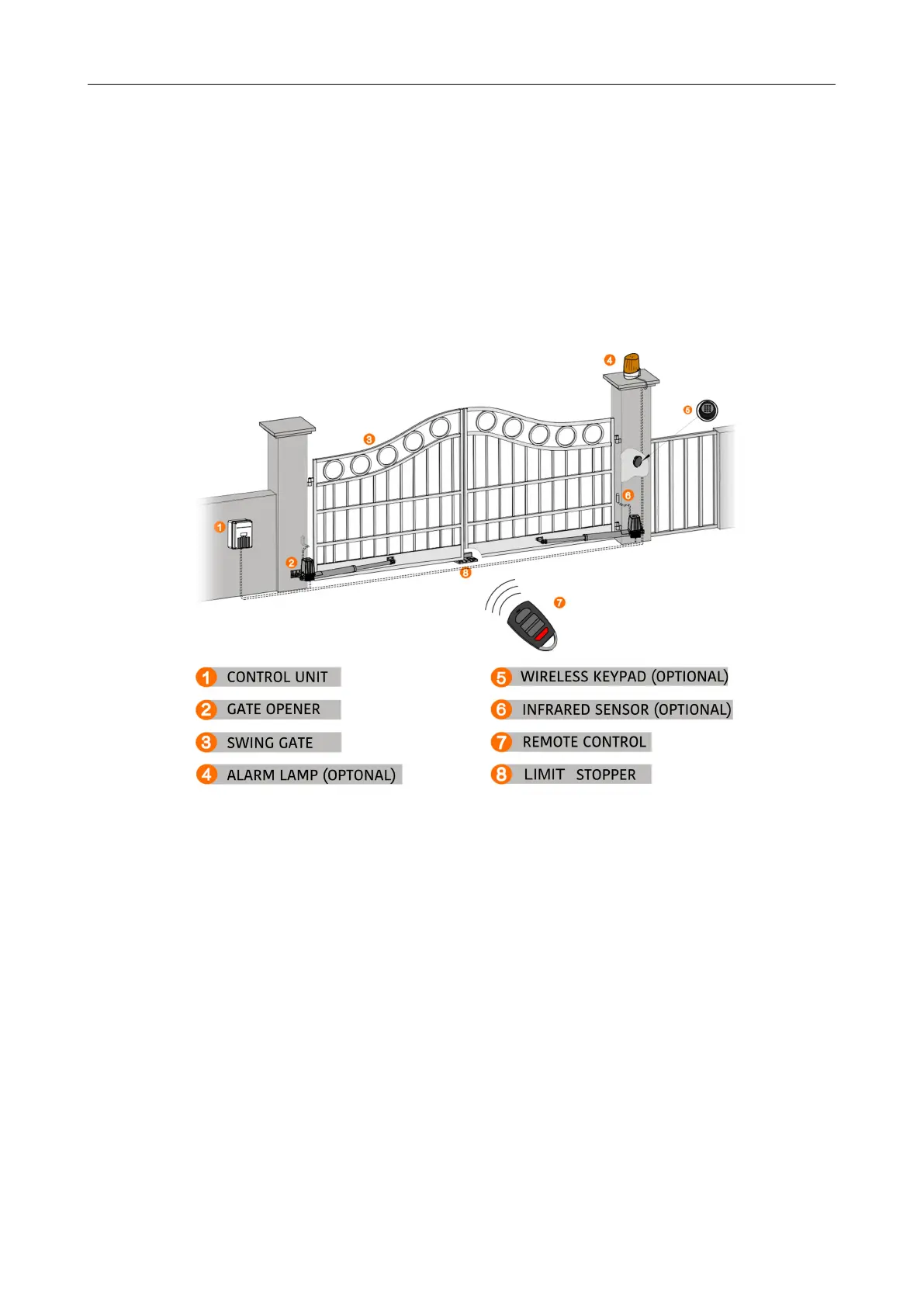

4.1 Installation Drawing
Figure 1
