YDFLP-E-20/30-M7 User Manual
File Number: J-SI-0036
9

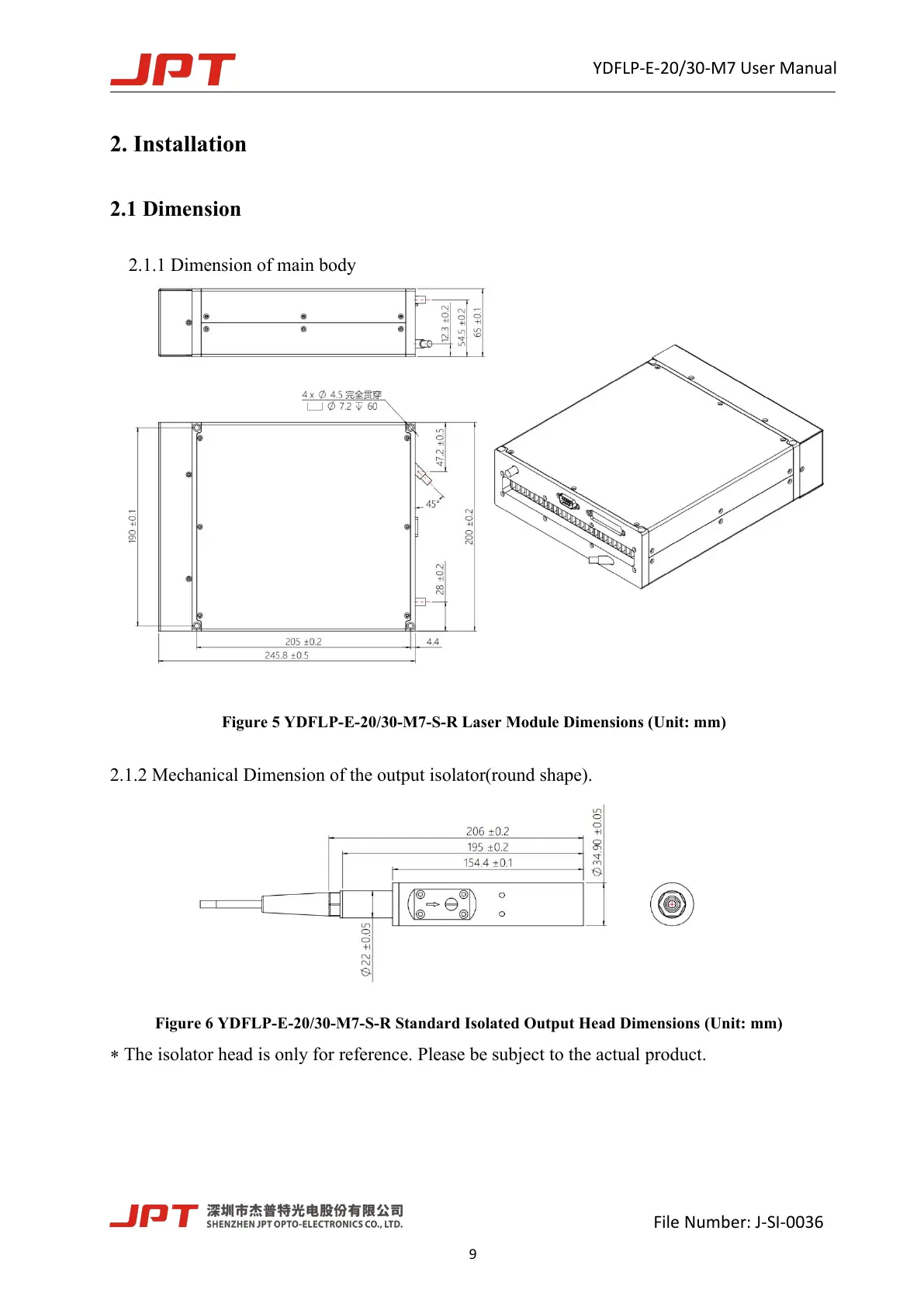

2. Installation
2.1 Dimension
2.1.1 Dimension of main body
Figure 5 YDFLP-E-20/30-M7-S-R Laser Module Dimensions (Unit: mm)
2.1.2 Mechanical Dimension of the output isolator(round shape).
Figure 6 YDFLP-E-20/30-M7-S-R Standard Isolated Output Head Dimensions (Unit: mm)

The isolator head is only for reference. Please be subject to the actual product.
