JR PCM9X II Programming

www.modelflight.com.au – World’s best source of JR products
Set
t
ing-up Flight Modes
Up to this point we have established the foundational
programming that will be common to all flight modes.
Now we will focus on the specifics of setting up each
individual flight mode.
We will be individually programming the following
parameters for each of the selected flight
modes(Launch, Cruise, Land).
• Dual and Exponential rates for Aileron, Elevatorand
Rudder
• Set
t
ing preset positions for the Camber, Flaperon and
Elevator
• Elevator-to-Flap Mixes
• Aileron-to-Flap Mixes
• Aileron Differential
• Flight Mode Delay
• Camber Adjustment
• Aileron-to-Rudder Mixes
• Spoiler-to-Elevator Curve Mix (elevator
compensation)
Launch Mode Setup
In Step #8, Establishing Flight Modes, flight modes
w
ere programmed to operate from the left front 3-
position switch. To select Launch mode, the left 3-
position switch must be moved in the up position. In the
main (info) screen LAUNCH will appear in the upper
portion of the display when Launch mode is selected.
When making programming changes/adjustments in
Launch mode, this 3-position switch must remain in the
upper position during the process to allow the results of
those ad
j
ustments to be seen on the model.
Step #16 Launch P
r
e-se
t
s
The PCM9X II offers a sophisticated program that
allows easy preset trim positions for the elevator, flaps,
flaperons (and even the aileron and rudder if you choose).
The
system can remain active in flight,
allowing you to fine trim presets in each flight mode or
can be locked in so they cannot be altered in flight. Fligh
t
mode presets are automatically selected via the flight
mode switch and are adjusted with the digital elevator
trim, the digital flap trim and the digital auxiliary trim
(flaperon). While the presets are adjusted via the digital
trims, their positions are recorded in the servo monitor.

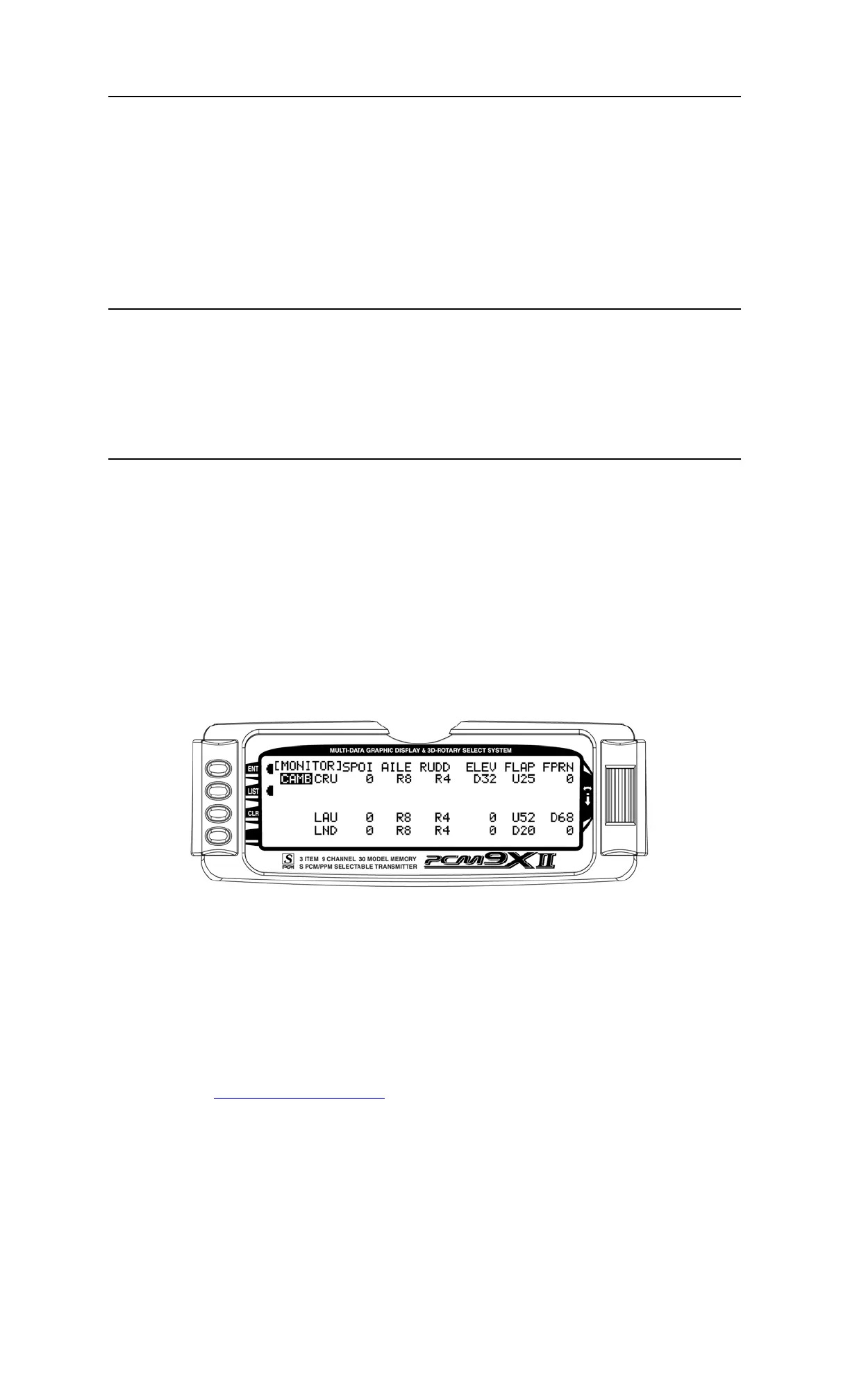

To access the servo monitor, in FUNC. L IST rotate the
Selector until MONITOR is highlighted. Press the
Selector to access the Monitor menu then press the
Selector again to access the camber digital preset
screen. To adjust the presets move the flight mode
switch to the launch mode (up) position. Adjust the
preset positions via the flap trim, auxiliary trim and
elevator trim on the transmitter. The values will be
displayed in the screen and then will be memorized for
that flight mode. If you wish to have these preset values
be fixed (not active in flight) once the values are
established, return to the Trim Step screen in the system
mode and reduce the value of the desired channel to 0.
The preset values for all flight modes will be stored and
no longer accessible with the digital
trims.
11 Sail
p
lane P
r
o
g
r
ammin
g
Guide
