Step #34
A
ile
r
on Dif
f
e
r
en
t
ial
–
Land Mode

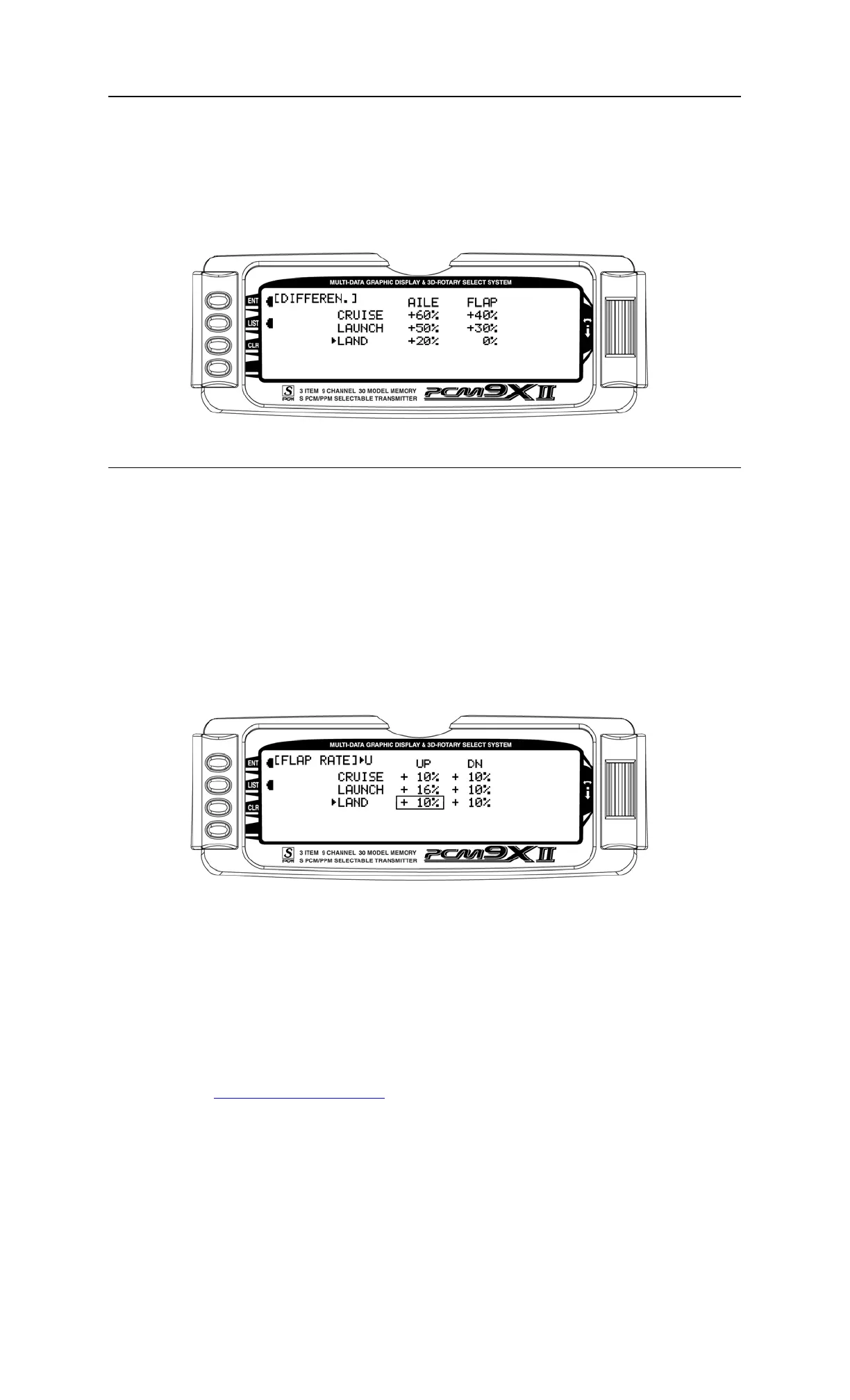

In FUNC. L IST rotate the Selector until DIFFEREN. is
highlighted. Press the Selector to access the Aileron
differential menu. Rotate the Selector to highlight the
land aileron value then press the Selector to access
Note: Reverse differential is common for landing
mode to give greater roll control when the flaps are
de
p
lo
y
ed.
that
value. With the flight mode switch in the lower land
mode, give a full right aileron command and rotate the
Selector to achieve the desired aileron differential for
land.
Pressing the Selector will store the value. Now rotate the
Selector
to highlight the land flap value and adjust it to
the desired position. Press the LIST button to return to
the Function Mode screen.
Step #35 Flap Ra
t
e, Flape
r
on Mix and Fli
g
ht Mode Dela
y
–
Land Mode
A
few pilots prefer to have variable camber adjustmen
t
during landing. This enables last minute adjustments t
o
be made based on wind and winch conditions.
Important: The flaperon and elevator values in the
camber mix menu are based on a percentage of the
programmed
flap rate. The flap rates are defaulted
to 0% from the factory, so flaperon and elevator mix
values
have no effect until the flap rate values are
set. Because of this, it‘s mandatory to first adjust the
flap rates before adjusting the flaperon and elevator
camber mixes. Also remember that changing the
flap rate values also affects the flaperon and
elevator camber mix.
Flap Rate
In FUNC. L IST rotate the Selector until F L A P R A TE is
highlighted. Press the Selector to access the Flap Rate
menu. Rotate the Selector to highlight the land down
value then press the Selector to access this value. With
the flight mode switch in the lower position mode, move
the left side lever to the lowest position and adjust the
down value to the desired flap position. Now with the
flight mode switch in the lower land mode, move the left
side lever to the uppermost position and adjust the up
value to the desired flap position. Press the LIST button
to return to the Function Mode screen.
Sail
p
lane P
r
o
g
r
ammin
g
Guide 24
