JMA-9100/7100 Installation Manual > 5.OPTION UNIT > 5.1 INSTALLATION OF INTERSWITCH UNIT
5－9
5
b. NQE-3141-8A setting
The internal structure of NQE-3141-8A includes two units of CCL-304R in the
two-storied structure.

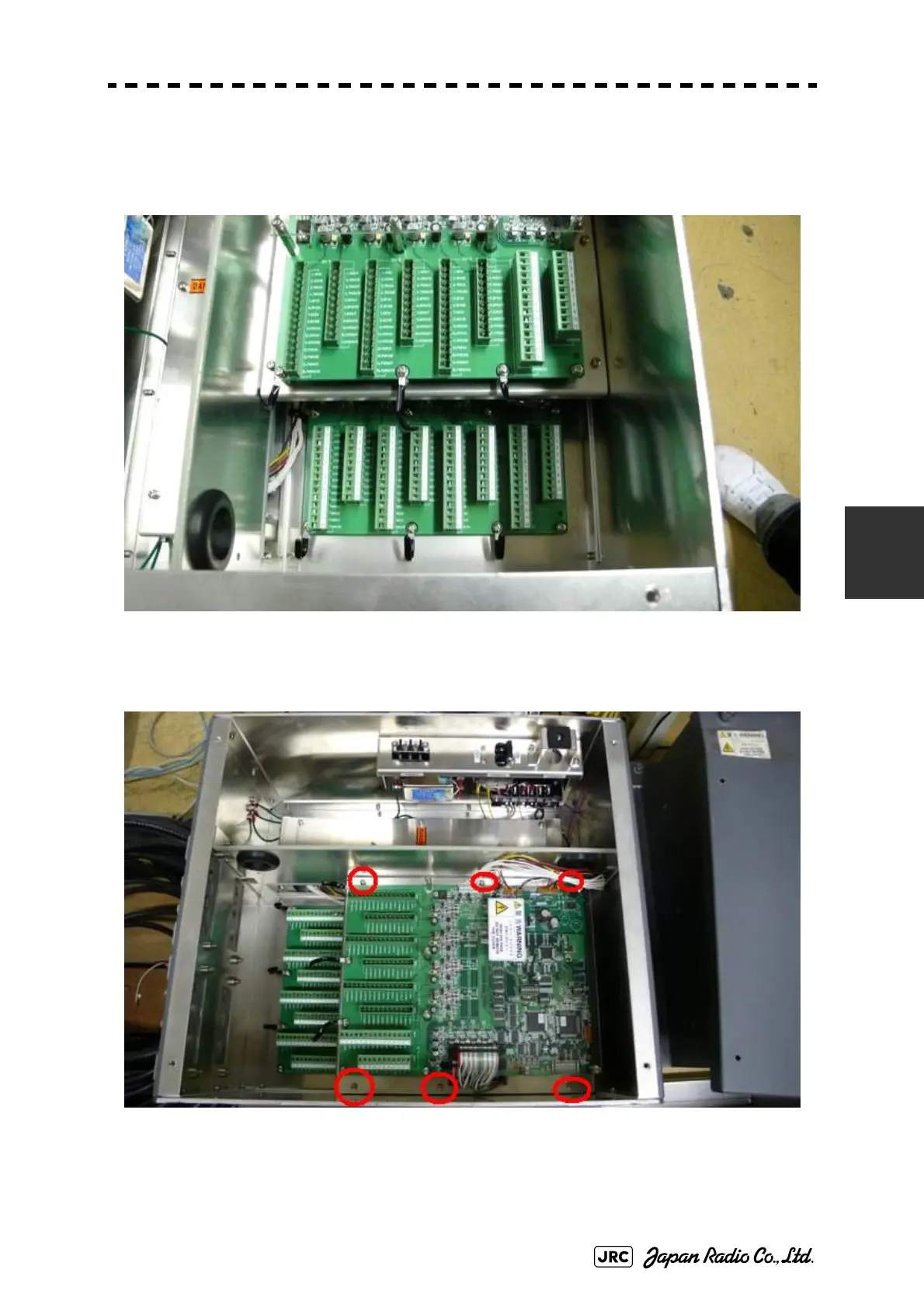

Fig 5-10: NQE-3141-8A Internal structure
Fig 5-11: Access to Lower Board of NQE-3141-8A
