2.1 EQUIPMENT CABLE
2.1.1 CFQ-6912-**
This is a 19-core shielded composite cable.
The cable length is indicated in the asterisks ** area in the model name, and the
available cable lengths are 5, 10, 20, 30, 40, 50, and 65 meters.
This cable is used to connect an NKE-2103 type scanner or an NKE-2254 type
scanner to the display unit.

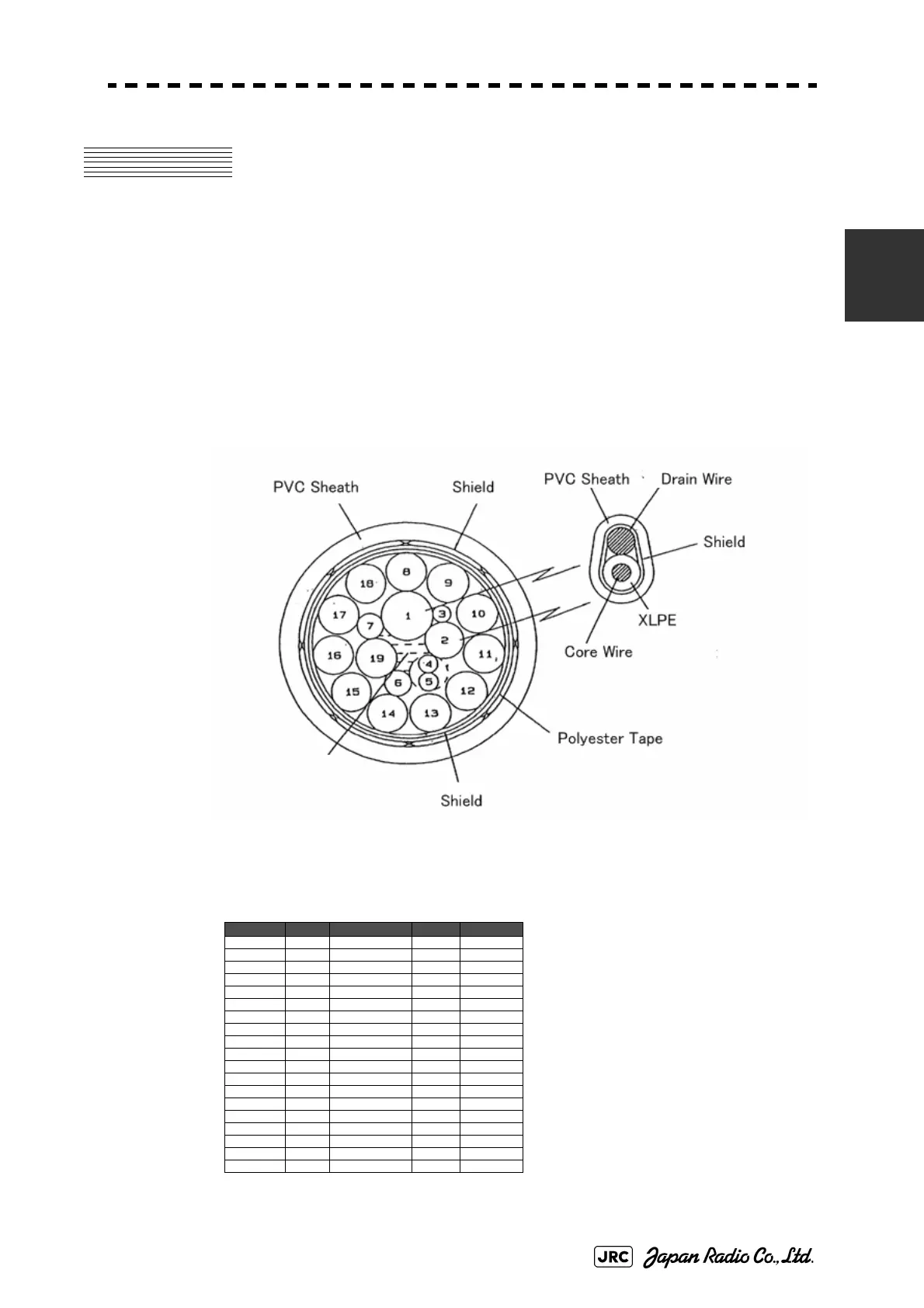

Fig 2-1: Cross-sectional drawing of CFQ-6912
maximum diameter 14.5mm
Table2-1： CFQ-6912 wire
Core(NO) AWG No. of Wire /φ Color Remarks
1 AWG24 7/0.2T Black1 Coaxial
2 AWG24 7/0.2T Black2 Shield
3 AWG24 7/0.2T Green
4 AWG24 7/0.2T Yellow
5 AWG24 7/0.2T White
6 AWG22 17/0.16T Black
7 AWG22 17/0.16T Orange
8 AWG16 50/0.18T Blue
9 AWG16 50/0.18T Gray
10 AWG16 50/0.18T Purple
11 AWG16 50/0.18T Brown
12 AWG16 50/0.18T White
13 AWG16 50/0.18T Orange
14 AWG16 50/0.18T Red
15 AWG16 50/0.18T Green
16 AWG16 50/0.18T Yellow
17 AWG16 50/0.18T Black
18 AWG16 50/0.18T Sky
19 AWG16 50/0.18T Pink
