3.1 FLOW OF OPERATION
.
..
……Tuning Operations ……………………………………………………

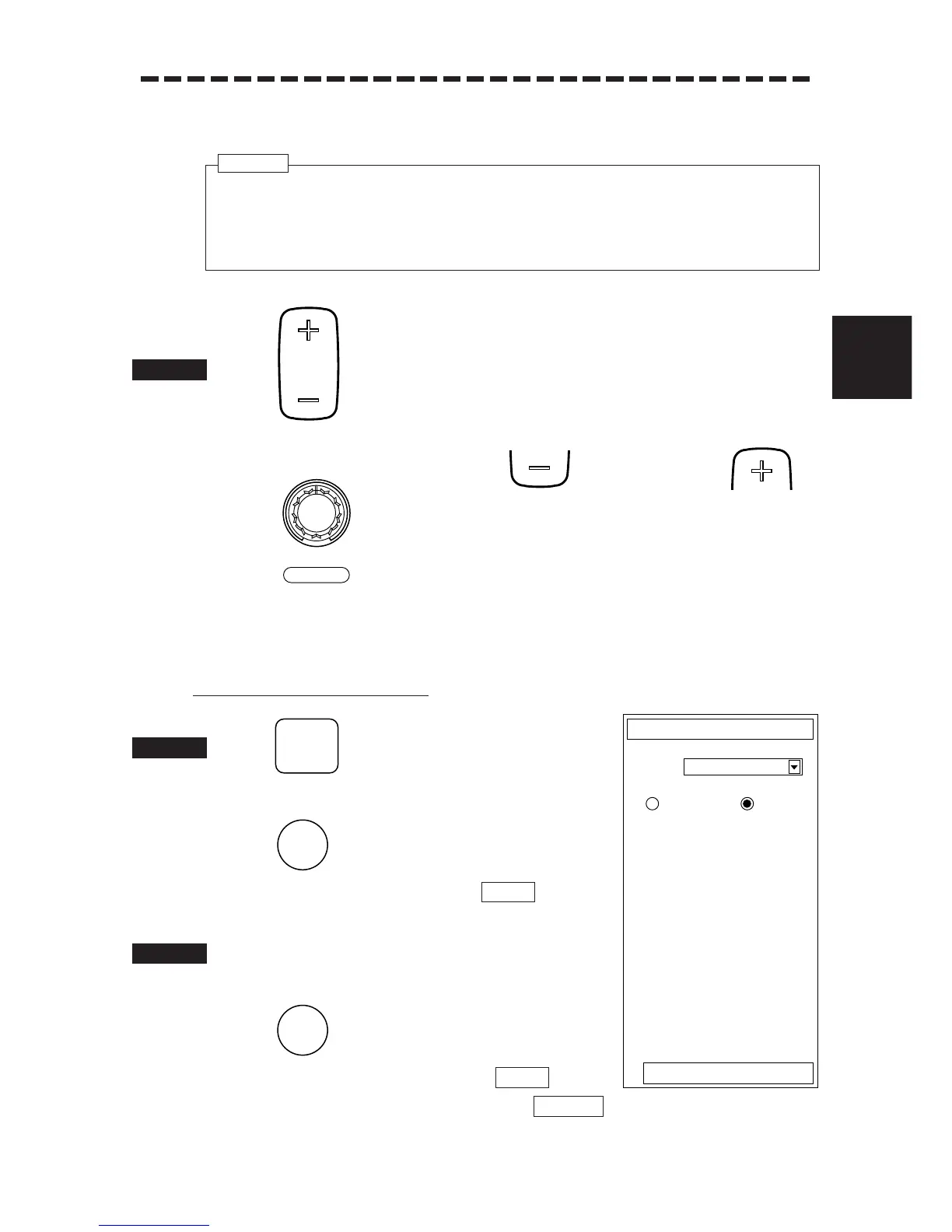

1 Press and select any range scale from 0.125 to 96 (or 120) NM. (The
current range scale is displayed at the upper left of the radar
display.)
The range scale becomes shorter by pressing and longer by pressing .
2 Rotate .
Adjust the video to present the clearest targets.
If there is no adequate target, adjust [TUNE] control to indicate the maximum bar-graph on the
tuning indicator at the upper left of the radar display.
In case of Using AUTO TUNE:
1 Press .
The AUTO Menu will appear.
2 Press .
“AUTO” in “2.TUNE” will be set and “” will appear
at the upper left of the radar display.
1 Repeat the procedures up to step 2 in case of using
AUTO TUNE.
2 Press .
“MANUAL” in “2.TUNE” will be set and “” at the
upper left of the radar display will change to “” and AUTO TUNE mode will be
cancelled.
MANUAL
AUTO
Procedures
● When the receiver is detuned, the best video may not be obtained even if the maximum bar-graph
is displayed on the AUTO TUNE tuning indicator. In this case, adjust the [TUNE] control
manually so that the best video is presented.
