Section 2 Basic Operation 2-10
2.8 Using the Electronic Bearing
Line(EBL) and Variable Range
Marker(VRM)

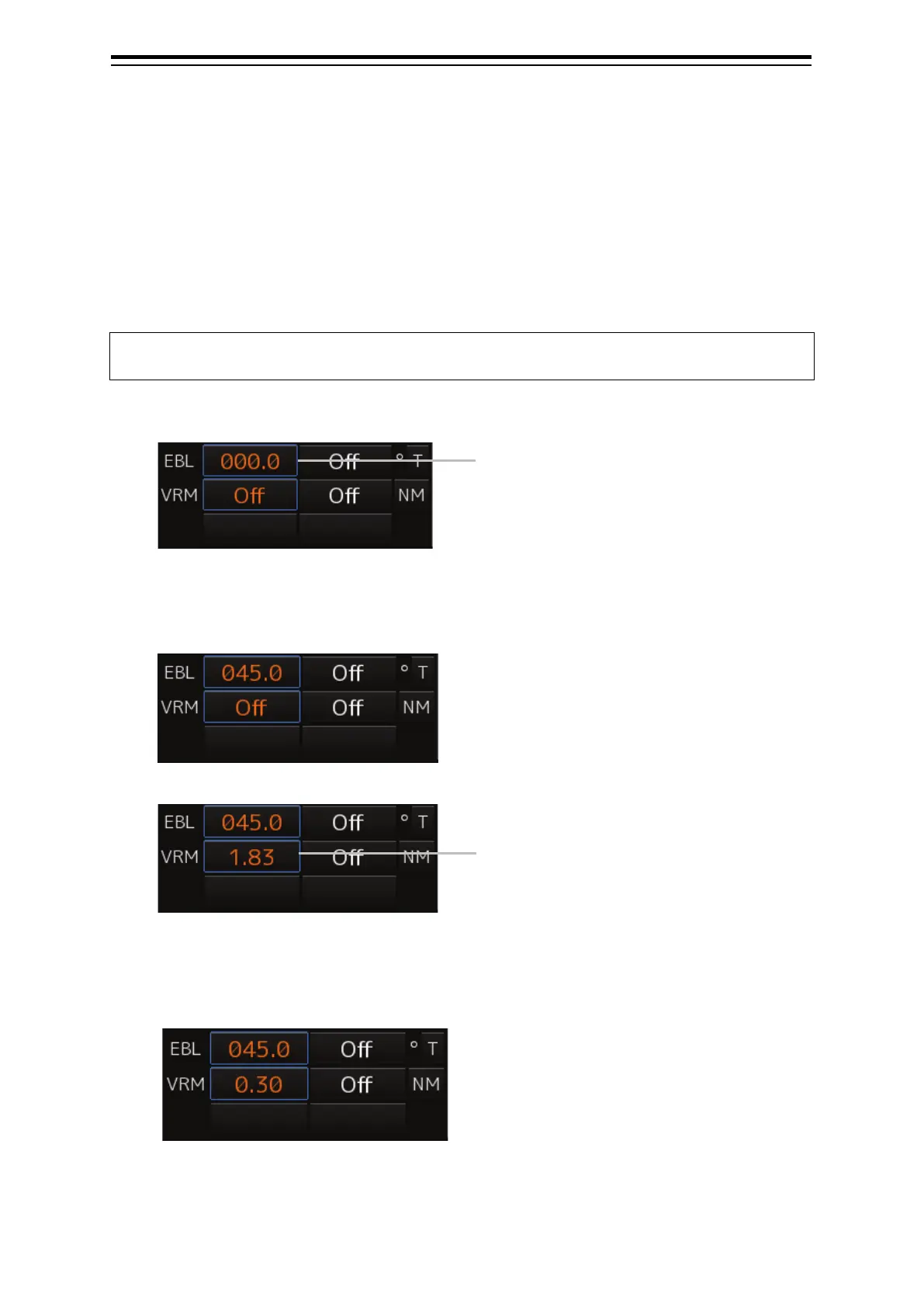

2.8.1 Measuring a range and a bearing with EBL
and VRM
This section describes the manipulation under EBL1 and VRM1; however, the same manipulation can
be performed under EBL2 and VRM2 also.
Memo
To manipulate the EBL/VRM, the RADAR transmission status must be “Transmit”.
1 Enable the manipulation of EBL1 by clicking on the [EBL1] button.
2 Enable the movement of EBL1 by clicking on the EBL1 line.
3 Align the cursor with a target and click on the mouse button.
The bearing of the target is displayed on the [EBL1] button.
4 Enable the manipulation of VRM1 by clicking on the [VRM1] button.
5 Enable the movement of VRM1 by clicking on the VRM1 circle.
6 Align the cursor with a target and click on the mouse button.
The range of the target is displayed on the [VRM1] button.
