Page 7

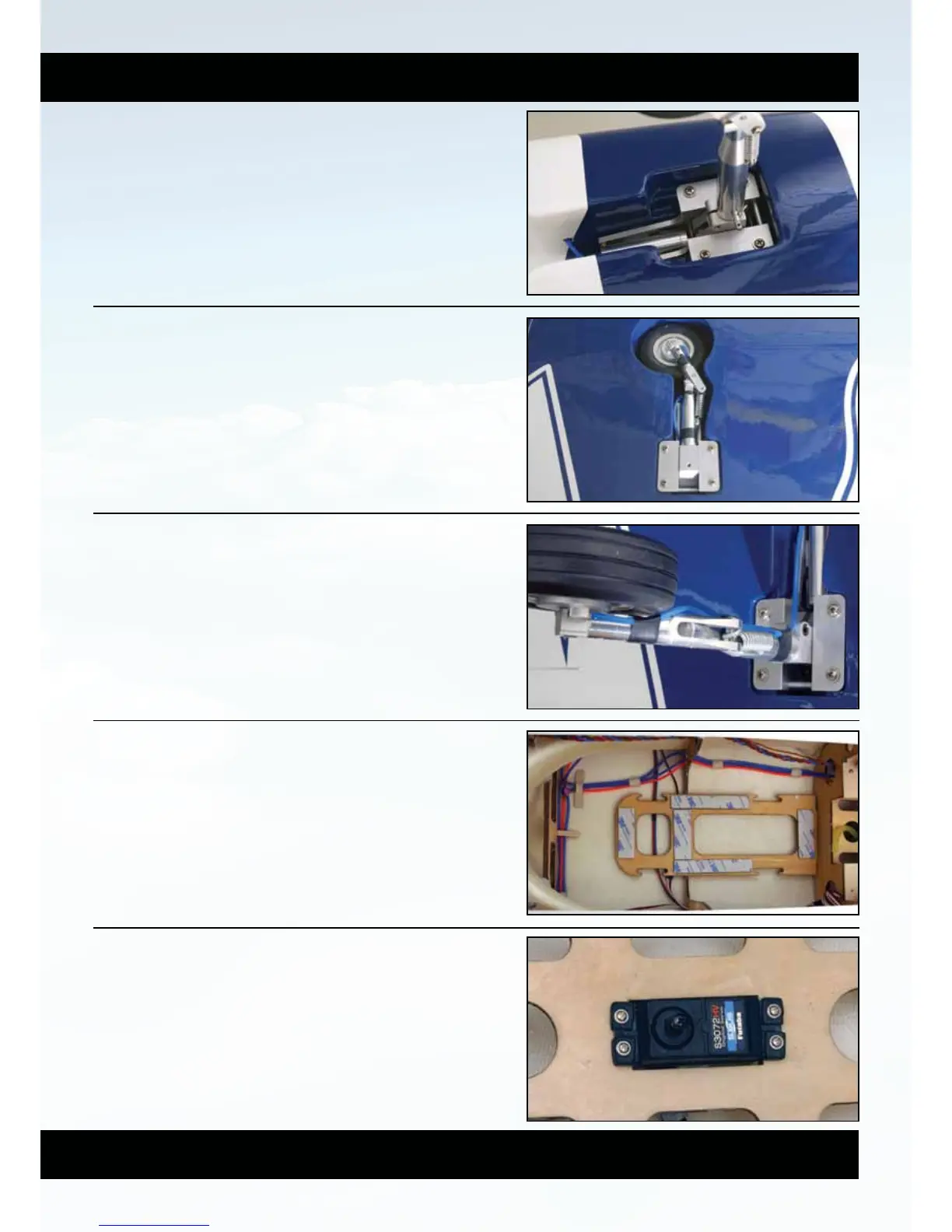

Fit the nose retract, having previously connected the
air lines, and run these back into the main equipment
bay.
Install the main retracts, legs and wheels as shown,
running the retract and brake airlines into the
fuselage. Check that the legs/wheels retract fully, a
small amount of trimming of the underside fuselage
skin may be required to achieve this.
Neaten the main brake airlines using electrical tape
and run them as shown. Take care to ensure that the
line will not be pinched when retracted.
Run the airlines under the air intake ducting, then
towards the front of the fuselage through the holes in
the side former made earlier. Secure using tape to
stop rattling and rubbing.
The nosewheel steering servo should be installed as
shown with the output shaft towards the rear of the
fuselage.
Step 21
Step 22
Step 23
Step 24
Step 25
