7
The Quality Connection

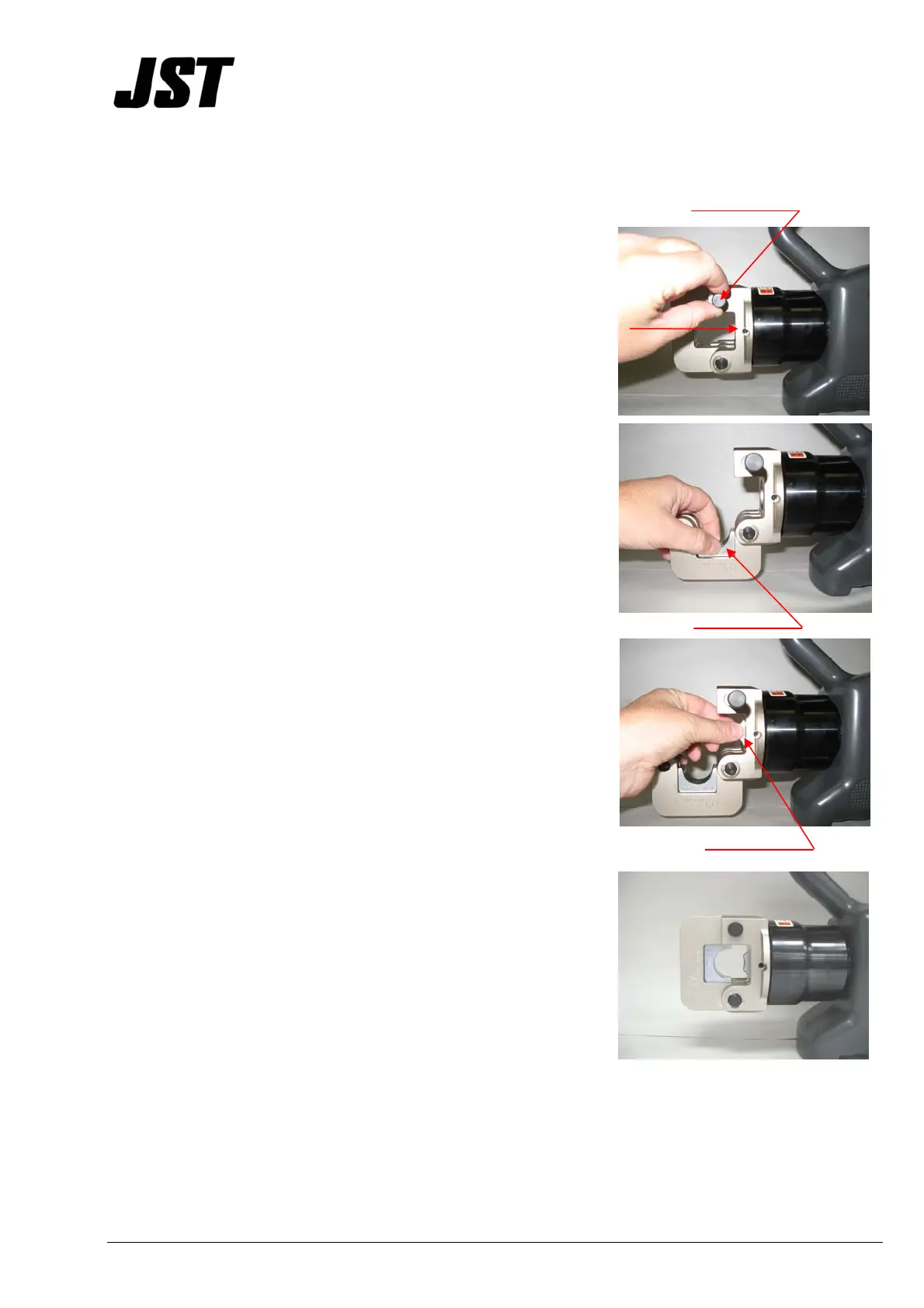

Mounting dies
Slide Pin
1. Retract the piston by depressing the release trigger on
the main body of the tool.
Piston
2. Pull the slide pin out to open the crimp head.
3. With the crimp head open insert the female die until it is
locked into place by the ball plungers.
Female Die
4. Fully insert the male die into the piston.
Male Die
5. Close the crimp head and replace the slide pin.
To Next Page
