Figure 2
9
GROUNDED GFCI
OUTLET BOX
GROUNDING PIN
Electrical Connection
Your JUGS pitching machine is powered by a 90 volt motor. Do not
operate this machine on direct current (DC). A substantial voltage drop will
cause a loss of power and the motor will overheat. If the machine does not
operate when plugged into an outlet, double check the power supply. Your
pitching machine will operate under a standard 110 voltage AC outlet. Do
not use an adapter with this product.

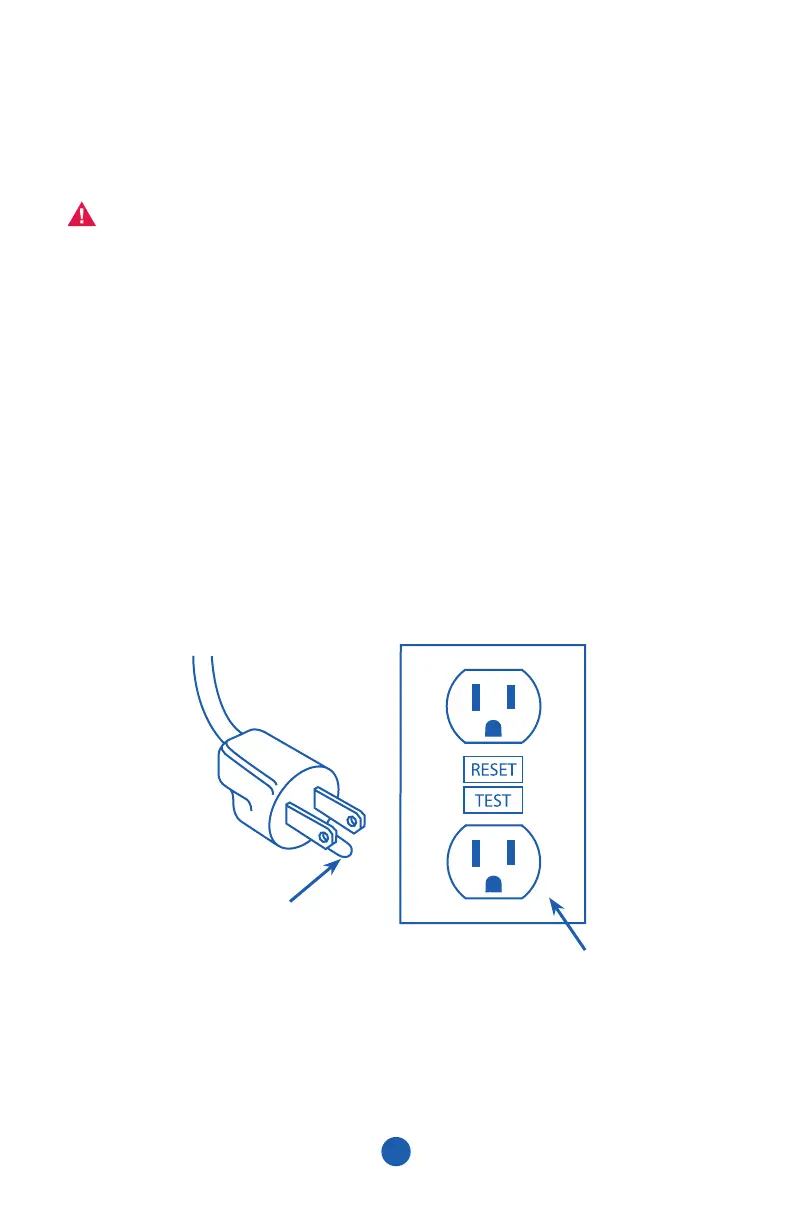

This machine is intended for use on a circuit that has an outlet like the
one shown in Figure 2. It also has a grounding pin like the one shown.
When working with the machine outdoors, use an extension cord
designed for outside use. This is indicated by the letters “WA” on the cord’s
jacket. Before using the extension cord, inspect it for loose or exposed
wires and cut or worn insulation.
WARNING: Keep the cord away from the rotating tire area. Repair or
replace a damaged or worn cord immediately.
