− 9 −

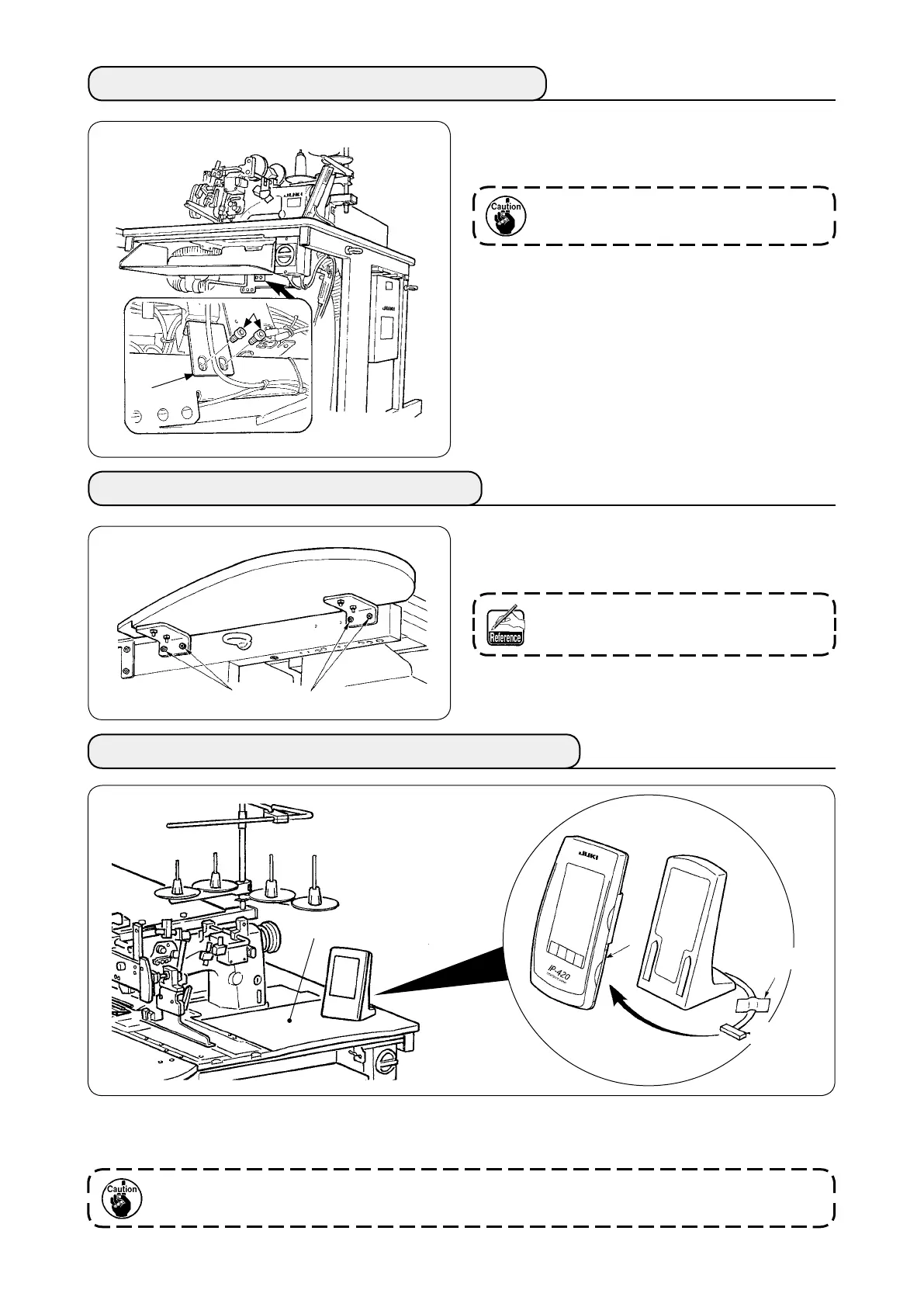

9. REMOVING THE HEAD FIXING PLATE
Remove xing screws
2
of head xing plate
1
.
Be sure to x the machine and the frame
when performing re-transportation.
10. INSTALLING THE SUB-TABLE
Install the sub-table with four screws
1
as shown
in the gure.
11. INSTALLING OPERATION PANEL IP-420
As shown in the figure above, open the lid on the right-hand section
C
of IP-420 and connect the
connector which is xed with tape to the right-hand top surface
B
of the table.
To prevent malfunction due to static electricity, install operation panel IP-420 on the panel base to
use and do not change the position of the panel base.
2
1
1
1
At this time, x the sub-table so as to be
ush with the main table.
C
Tape
Connector
B
To Next Page
