JUKI HZL-F series Service Manual

– 6 –

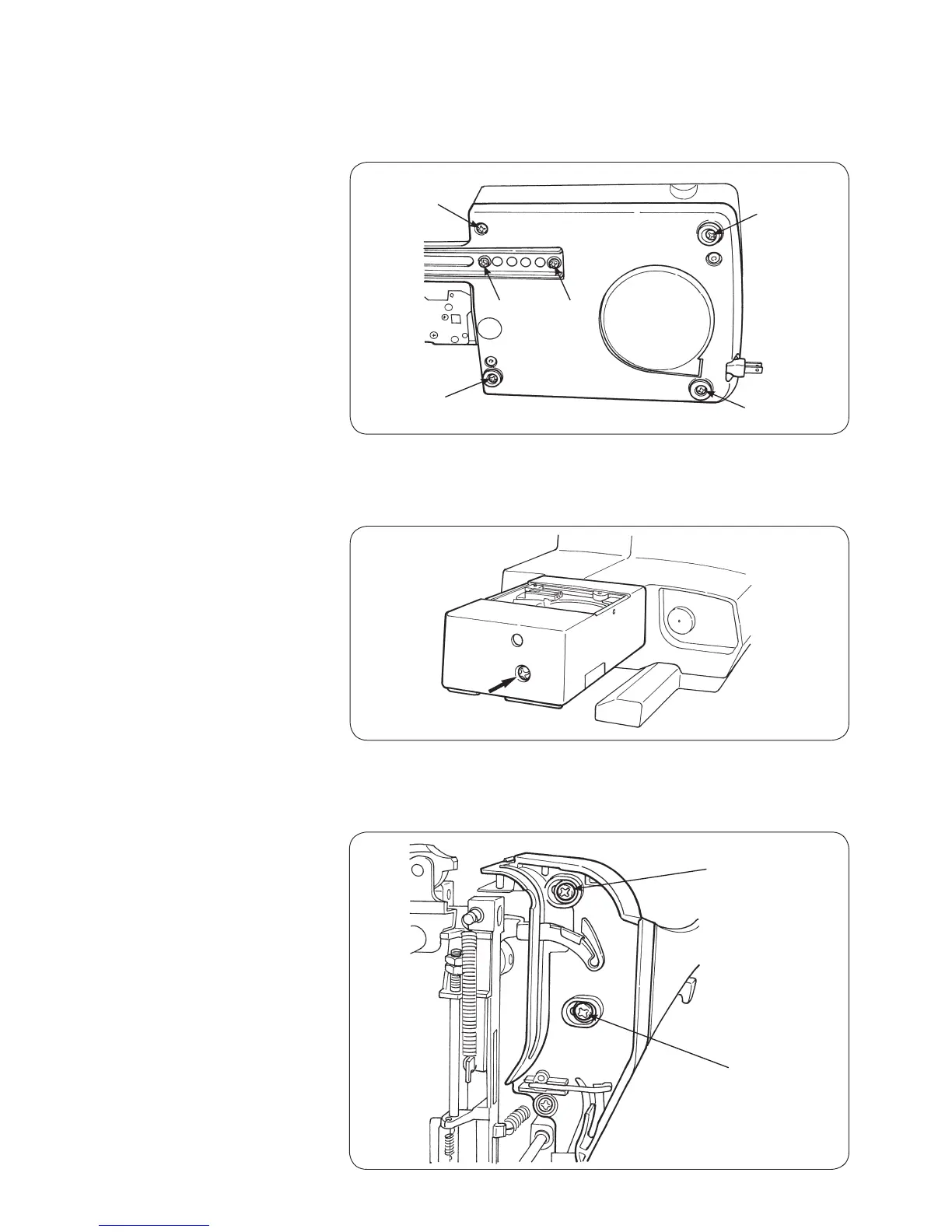

6) Bed cover
7) Upper cover of the free
arm
8) Face plate cover
○
Remove setscrews
!3
to
!5
from the rubber cushion of the bed cover.
Remove setscrew
!6
from the bed cover. Remove setscrews
!7
and
!8
from
the metal plate. Remove the bed cover.
○
Remove setscrew
!9
from the upper cover of the free arm.
Remove the cover.
○
Remove setscrews
@0
and
@1
from the face plate cover.
Remove the face plate cover.
!9
!3
!4
!5
!6
!7
!8
@0
@1
