JUKI HZL-F series Service Manual

– 4 –
○

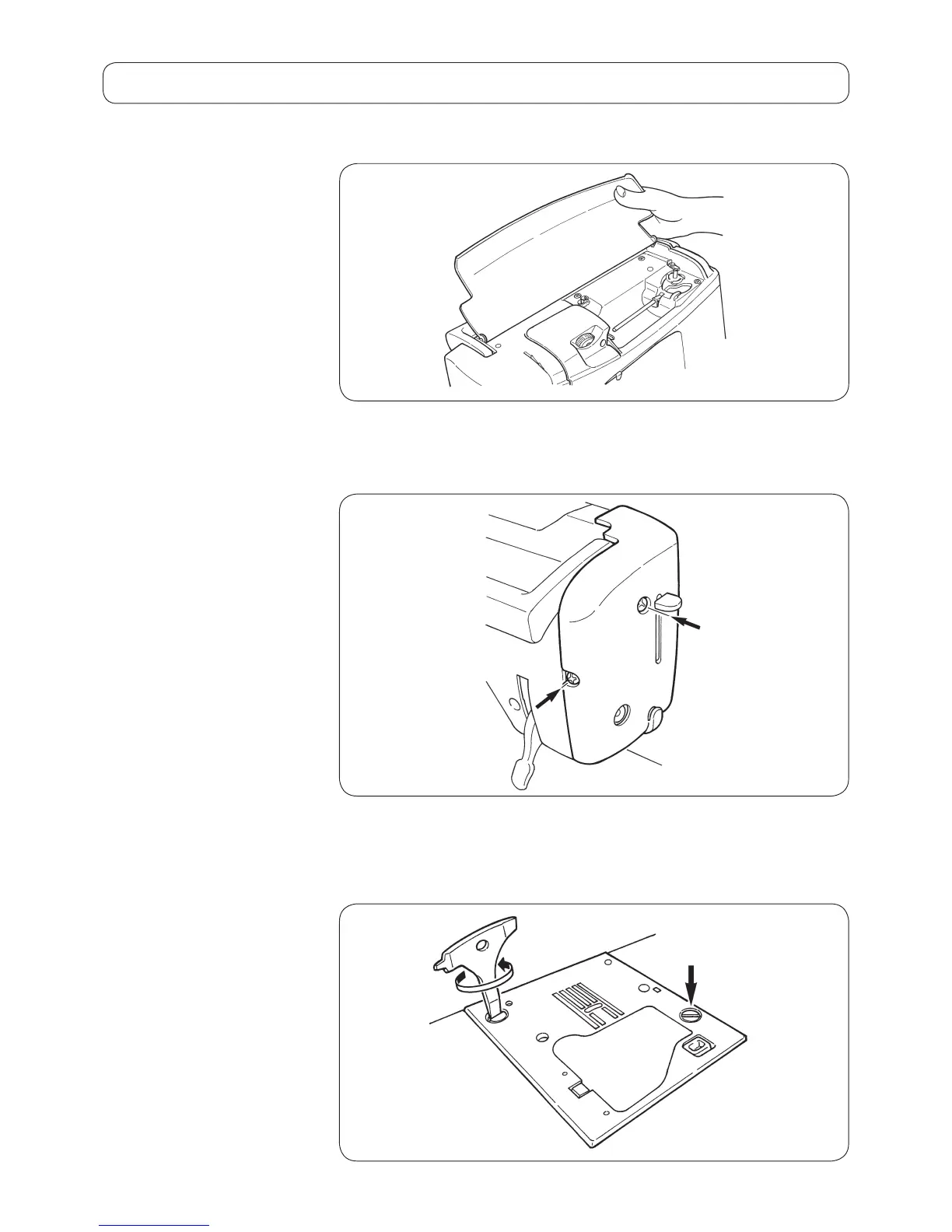

To remove the top cover, bow the hinge section of the right side of the cover.
○
Remove setscrews
1
and
2
from the cover. Then, remove the cover.
○
Remove setscrews
3
and
4
from the throat plate.
Then remove the throat plate.
[3] Disassembling the machine covers
1) Top cover
2) Face cover
3) Throat plate
1
2
3
4
